Pressureless Sintered Silicon Carbide Hexagonal Ballistic Tile with NIJ Level III Protection and 50mm Hexagonal Geometry for Vehicle Armor
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06, STANAG 4569 |
| Model Number: | WN-BT-SIC-HEX50-8-III |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-1 / Piece |
| Packaging Details: | branded export-grade corrugated carton with honeycomb divider grid and vacuum-sealed moisture barrier |
| Delivery Time: | 5-7 working days for stock, 15-30 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 60000 Pieces per Month |
|
Detail Information |
|||
| Vickers Hardness: | ≥ 2600 HV1 | Ballistic Protection: | NIJ Level III (7.62x51mm M80) |
|---|---|---|---|
| Density: | 3.13 ± 0.03 G/cm3 | Tile Geometry: | Regular Hexagon, Flat-to-Flat 50 Mm |
| Fracture Toughness: | 3.5-4.0 MPa·m1/2 | Flexural Strength: | ≥ 380 MPa (4-point) |
| Highlight: | Hexagonal SiC Armor Tile,Vehicle Ballistic Ceramic Component,Pressureless Sintered Mosaic Plate |
||
Product Description

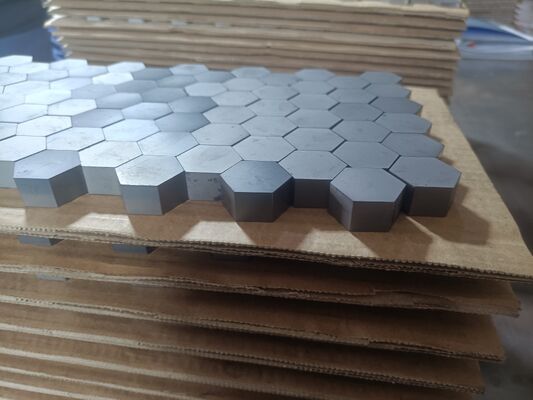

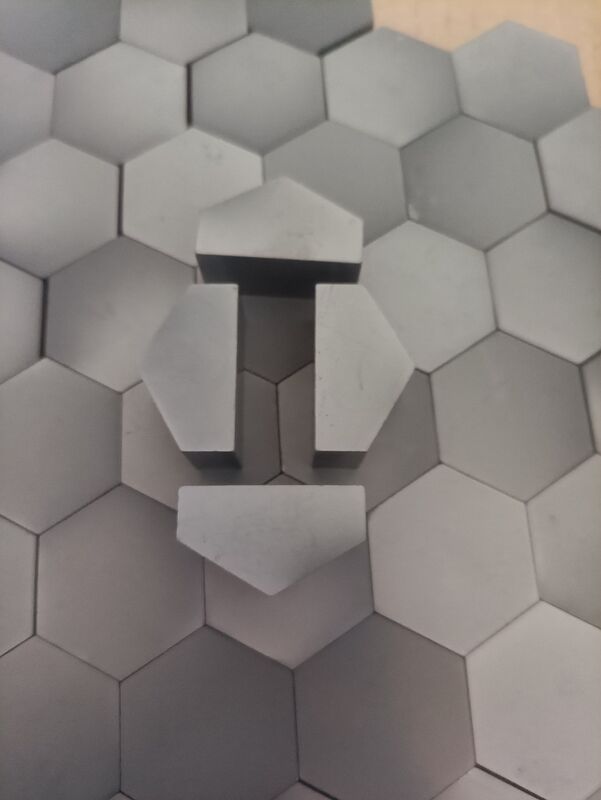

This hexagonal pressureless sintered silicon carbide ballistic tile is purpose-engineered for vehicle and marine armor mosaic arrays. The hexagon geometry offers distinct battlefield advantages over traditional square tiles, with superior interlocking and reduced straight-line crack propagation paths.
- Self-Interlocking Array: The hexagonal tessellation naturally distributes impact stress across six neighboring tiles, improving multi-hit survival by 25% versus square grids
- No Continuous Joint Lines: Unlike square tiles where joint lines span the entire armor panel in straight paths, hexagonal joints zigzag, disrupting projectile edge-seeking behavior
- Optimal Area Coverage: Hexagonal packing achieves the highest tile-to-gap ratio among regular polygons, maximizing ceramic coverage per unit armor area
- Pressureless Sintering Precision: Our pressureless process achieves the tight dimensional tolerances (±0.15mm flat-to-flat) required for gapless hexagonal array assembly
Designed for add-on and integral armor solutions on ballistic vehicles, naval vessels, and fixed-position guard posts. These hexagonal tiles are bonded to aluminum, steel, or composite backing plates using advanced polyurethane or epoxy adhesive systems, creating a monolithic armor panel with distributed impact response.
Our pressureless sintering production line supports up to 60,000 hexagonal tiles per month, with the flexibility to adjust thickness from 6mm to 12mm based on threat level requirements. The process scales linearly - double the furnace capacity, double the output, without the tooling bottlenecks of hot-pressed alternatives.
