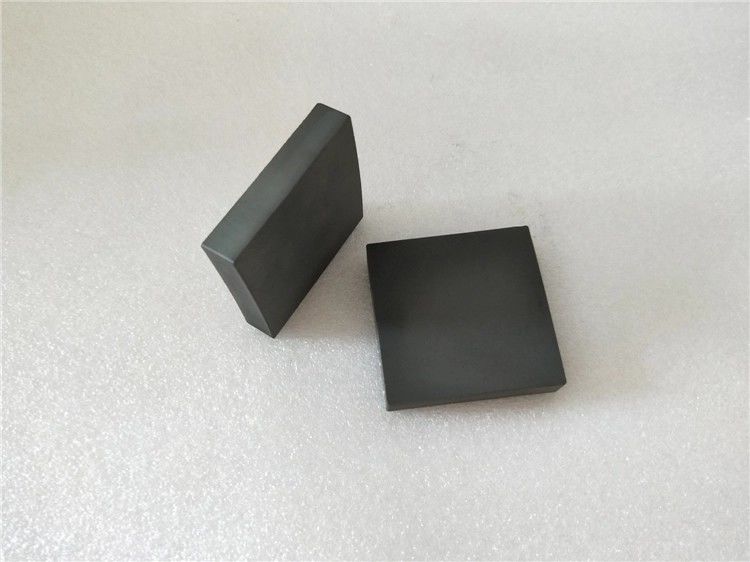

Pressureless Sintered Silicon Carbide Ceramic Tile 50x50mm Ballistic Protection Plate with >=2500 HV Hardness
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-50-S |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, export-grade corrugated carton, palletized for container shipment |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 30000000 Pieces per Month |
|
Detail Information |
|||
| Shape: | Square | Density: | >=3.10 G/cm3 |
|---|---|---|---|
| Fracture Toughness: | 3.5-4.0 MPa.m1/2 | Flexural Strength: | >=380 MPa |
| Thickness: | 5-12 Mm (Customizable) | Dimensions: | 50 X 50 Mm |
| Highlight: | Pressureless Sintered SiC Ceramic,50x50mm Square Tile Ballistic,Lightweight Ceramic Protection Plate |
||
Product Description
Pressureless Sintered Silicon Carbide Ceramic Square Tile 50x50mm Ballistic Protection Plate Standard Grade
Product Overview
Silicon carbide (SiC) ceramic square tile in 50 x 50 mm format, manufactured via pressureless sintering for superior density uniformity and mechanical consistency. Ideal for ballistic protection panel assembly.
Key Features
- Material: Pressureless sintered silicon carbide (SiC) ceramic
- Shape: Square tile, 50 x 50 mm
- Thickness: 5-12 mm, customizable to specific requirements
- Density: ≥3.10 g/cm³
- Hardness: ≥2500 HV (Vickers)
- Flexural Strength: ≥380 MPa
- Fracture Toughness: 3.5-4.0 MPa·m¹/²
- Porosity: ≤0.5%
- Advantages: High hardness, low density, excellent multi-hit capability, corrosion resistant
Technical Specifications
Material Properties
| Material Grade | Silicon Carbide (SiC) |
| Sintering Method | Pressureless Sintered |
| Purity | ≥98.5% SiC |
| Density | ≥3.10 g/cm³ |
| Hardness (Vickers) | ≥2500 HV |
| Flexural Strength | ≥380 MPa |
| Fracture Toughness | 3.5-4.0 MPa·m¹/² |
| Porosity | ≤0.5% |
Physical Dimensions
| Shape | Square |
| Dimensions | 50 x 50 mm |
| Thickness Range | 5-12 mm (Customizable) |
| Thickness Tolerance | ±0.1 mm |
| Flatness | ≤0.1 mm |
| Edge Quality | Chamfered, Burr-Free |
