Pressureless Sintered Silicon Carbide Ceramic Hexagonal Tile 30x30mm for Ballistic Protection Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HEX-30-S |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, export-grade corrugated carton, palletized |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 50000000 Pieces per Month |
|
Detail Information |
|||
| Sintering Method: | Pressureless Sintered | Flexural Strength: | >=380 MPa |
|---|---|---|---|
| Thickness: | 5-12 Mm (Customizable) | Fracture Toughness: | 3.5-4.0 MPa.m1/2 |
| Dimensions: | 30 X 30 Mm (Flat-to-Flat) | Density: | >=3.10 G/cm3 |
| Highlight: | SiC Hexagonal Ceramic Tile,30x30mm Ballistic Protection Plate,Pressureless Sintered Hexagon Insert |
||
Product Description
Pressureless Sintered Silicon Carbide Ceramic Hexagonal Tile 30x30mm Ballistic Protection Plate
Product Overview

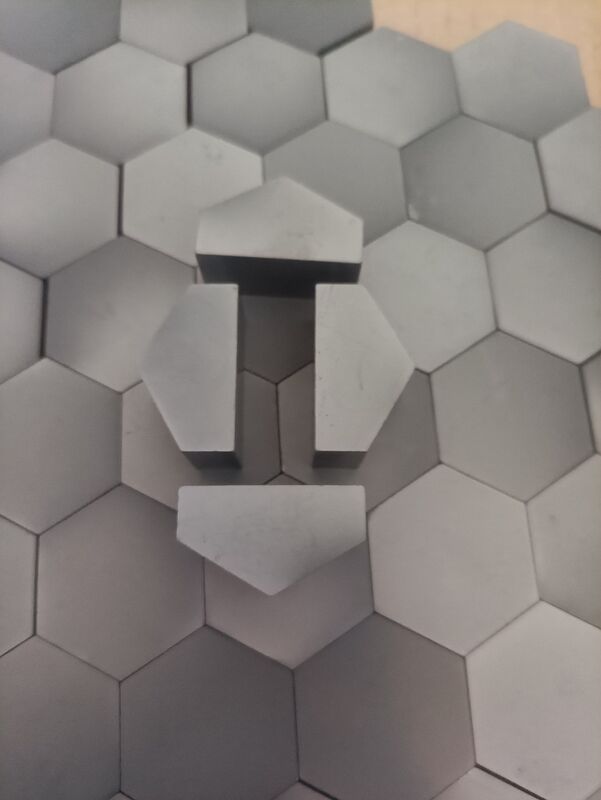

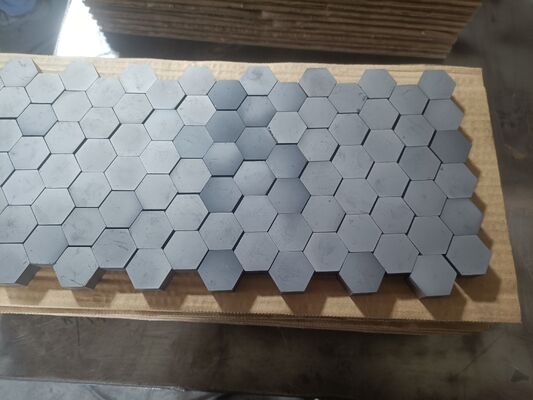

Silicon carbide (SiC) ceramic hexagonal tile in 30 x 30 mm (Flat-to-Flat) format, manufactured via pressureless sintering for superior density uniformity and mechanical consistency. Ideal for ballistic protection panel assembly.
Key Features
- Material: Pressureless sintered silicon carbide (SiC) ceramic
- Shape: Hexagonal tile, 30 x 30 mm (flat-to-flat)
- Thickness: 5-12 mm, customizable
- Density: ≥3.10 g/cm³
- Hardness: ≥2500 HV (Vickers)
- Flexural Strength: ≥380 MPa
- Hexagon tessellation for minimum gap coverage
- Low porosity ≤0.5%
- Available with chamfered or square edge finish
Technical Specifications
| Material Properties | |
|---|---|
| Material Grade | Silicon Carbide (SiC) |
| Sintering Method | Pressureless Sintered |
| Density | ≥3.10 g/cm³ |
| Hardness (Vickers) | ≥2500 HV |
| Flexural Strength | ≥380 MPa |
| Fracture Toughness | 3.5-4.0 MPa.m¹/² |
| Porosity | ≤0.5% |
| Physical Dimensions | |
|---|---|
| Shape | Hexagonal (Regular Hexagon) |
| Dimensions (Flat-to-Flat) | 30 mm |
| Side Length | ~17.3 mm |
| Thickness Range | 5-12 mm (Customizable) |
| Thickness Tolerance | ±0.1 mm |
