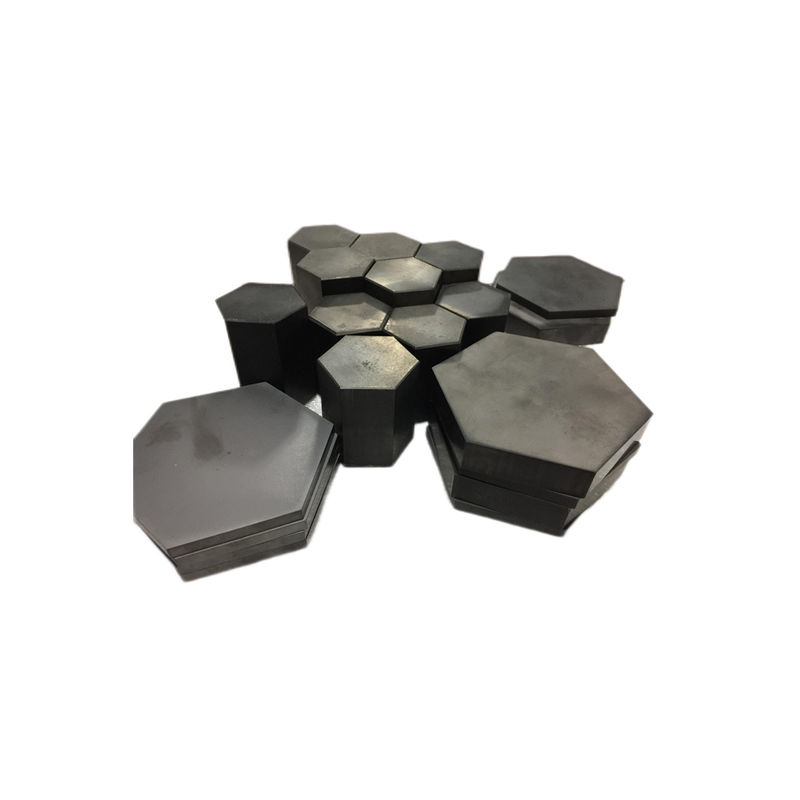

Pressureless Sintered Boron Carbide Ceramic Hexagonal Tile 30x30mm Ultra-Light Ballistic Protection Insert
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-HEX-30-S |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-3 / Piece |

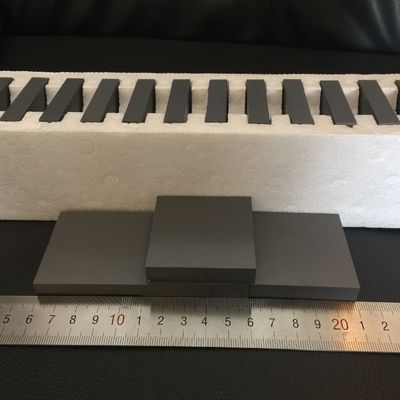

| Packaging Details: | Individual foam cell packing with anti-static moisture barrier, export-grade corrugated carton, palletized |
| Delivery Time: | 10-20 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Sintering Method: | Pressureless Sintered | Flexural Strength: | >=350 MPa |
|---|---|---|---|
| Thickness: | 5-12 Mm (Customizable) | Dimensions: | 30 X 30 Mm (Flat-to-Flat) |
| Density: | >=2.48 G/cm3 | Hardness: | >=3000 HV (Vickers) |
| Highlight: | B4C Hexagonal Ceramic Tile,Ultra-Light Ballistic Hexagon Insert,30x30mm Boron Carbide Protection |
||
Product Description
Pressureless Sintered Boron Carbide Ceramic Hexagonal Tile 30x30mm Ultra-Light Ballistic Protection Insert
Key Features
- Material: Pressureless sintered boron carbide (B₄C), density ≥2.48 g/cm³
- Hardness: ≥3000 HV – among the hardest engineering ceramics available
- Shape: Regular hexagonal, 30x30mm flat-to-flat
- Hexagon tessellation eliminates straight-line gap channels
- Approximately 20% lighter than equivalent SiC hexagonal tiles
- Thickness: 5-12 mm customizable to protection level requirements
- Ideal for weight-critical applications
Technical Specifications
| Material Properties | |
|---|---|
| Material | Boron Carbide (B₄C) |
| Sintering Method | Pressureless Sintered |
| Density | ≥2.48 g/cm³ |
| Hardness (Vickers) | ≥3000 HV |
| Flexural Strength | ≥350 MPa |
| Fracture Toughness | 2.5-3.0 MPa·m¹/² |
| Young's Modulus | ≥440 GPa |
| Physical Dimensions | |
| Shape | Hexagonal (Regular Hexagon) |
| Dimensions (Flat-to-Flat) | 30 mm |
| Side Length | ~17.3 mm |
| Tile Area | ~705 mm² |
| Thickness | 5-12 mm (Customizable) |
