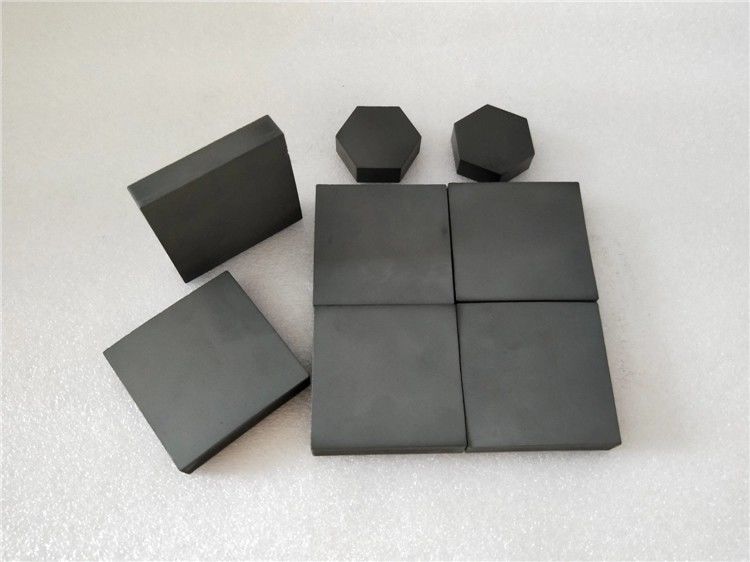

50x50mm Ultra-Light Boron Carbide Ceramic Tile Pressureless Sintered for Ballistic Protection Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-SQ-50-B |
| Document: | Performance Comparison of P...)1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Individual foam cell packing with moisture-proof anti-static barrier, export-grade corrugated carton, palletized |
| Delivery Time: | 12-22 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 10000 Pieces per Month |
|
Detail Information |
|||
| Sintering Method: | Pressureless Sintered | Hardness: | >=3000 HV (Vickers) |
|---|---|---|---|
| Total Thickness: | 6-14 Mm (with Backing) | Flexural Strength: | >=350 MPa |
| Dimensions: | 50 X 50 Mm | Density: | >=2.48 G/cm3 (Ceramic Core) |
| Highlight: | B4C Ceramic with Composite Backing,Ultra-Light Square Ballistic Tile,50x50mm Backed Boron Carbide Plate |
||
Product Description
Boron Carbide Ceramic Ballistic Square Tile 50x50mm Ultra-Light Protection Plate with Composite Backing Layer
Product Overview
Boron carbide (B₄C) ceramic square tile in 50 x 50 mm format, manufactured via pressureless sintering for superior density uniformity and mechanical consistency. Ideal for ballistic protection panel assembly.
Key Features
- Ceramic Layer: Pressureless sintered B₄C, hardness ≥3000 HV, density ≥2.48 g/cm³
- Backing Layer: Aramid fiber composite, bonded with structural adhesive
- Total thickness 6-14 mm, customizable ceramic-to-backing ratio
- Approximately 20% lighter than equivalent SiC + backing solution
- Highest hardness-to-weight ratio in class
- Reduced back-face deformation for enhanced wearer protection
Technical Specifications
| Ceramic Core | |
|---|---|
| Material | Boron Carbide (B₄C) |
| Sintering Method | Pressureless Sintered |
| Density | ≥2.48 g/cm³ |
| Hardness | ≥3000 HV (Vickers) |
| Flexural Strength | ≥350 MPa |
| Fracture Toughness | 2.5-3.0 MPa·m¹/² |
| Backing Layer | |
| Material | Aramid Fiber Composite |
| Bonding | High-Strength Structural Adhesive |
B₄C vs SiC Performance Comparison
| Property | B₄C + Backing | SiC + Backing |
|---|---|---|
| Ceramic Density | ≥2.48 g/cm³ | ≥3.10 g/cm³ |
| Ceramic Hardness | ≥3000 HV | ≥2500 HV |
| Flexural Strength | ≥350 MPa | ≥380 MPa |
| Weight per Tile | Lighter (~20%) | Heavier |
| Cost per Tile | Higher | Lower |
