Pressureless Sintered Ceramic Ballistic Tile in 50x50mm Square and 30x30mm Hexagonal for Bulletproof Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-B4C-DUAL |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece (Material Dependent) |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 7-22 working days (varies by material) |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 30000000 Pieces per Month (Combined) |
|
Detail Information |
|||
| Available Materials: | Silicon Carbide (SiC), Boron Carbide (B4C) | Available Shapes: | Square, Hexagonal |
|---|---|---|---|
| Square Size: | 50 X 50 Mm | Hexagonal Size: | 30 X 30 Mm (Flat-to-Flat) |
| SiC Density: | >=3.10 G/cm3 | B4C Density: | >=2.48 G/cm3 |
| SiC Hardness: | >=2500 HV | B4C Hardness: | >=3000 HV |
| Sintering Method: | Pressureless Sintered | Custom Thickness: | 5-14 Mm (All Options) |
| Highlight: | SiC B4C Dual Material Tile,Ceramic Ballistic Plate Comparison,Square Hexagon Protection Option |
||
Product Description
Silicon Carbide Boron Carbide Ceramic Ballistic Tile Dual Specification

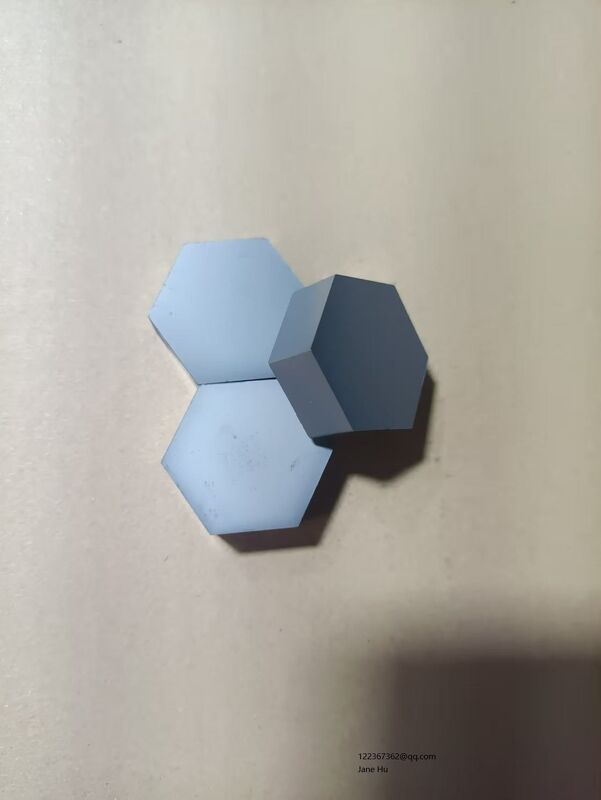

Dual-specification ceramic hexagonal tile in 30 x 30 mm (Flat-to-Flat) format, manufactured via pressureless sintering for superior density uniformity and mechanical consistency. Ideal for ballistic protection panel assembly.
Features
- Two material options: Silicon Carbide (SiC) and Boron Carbide (B4C)
- Two geometry options: Square 50x50mm and Hexagonal 30x30mm
- All tiles manufactured via pressureless sintering for consistent quality
- Custom thickness from 5mm to 14mm available for all configurations
- Surface coatings and composite backing options available
- OEM customization for dimensions, thicknesses, and surface finishes
Technical Specifications
Material Comparison
| Property | SiC | B4C |
|---|---|---|
| Density | ≥3.10 g/cm³ | ≥2.48 g/cm³ |
| Hardness | ≥2500 HV | ≥3000 HV |
| Flexural Strength | ≥380 MPa | ≥350 MPa |
| Fracture Toughness | 3.5-4.0 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Relative Cost | Lower | Higher |
Shape Comparison
| Shape | Characteristics |
|---|---|
| Square 50x50mm | Coverage 2500 mm², simpler assembly |
| Hexagonal 30x30mm | Coverage ~705 mm², no continuous gaps |
Selection Guide
- Choose SiC when: Budget is a primary concern, multi-hit durability matters, or the weight budget is less restrictive.
- Choose B4C when: Weight minimization is critical, maximum hardness is required, or the application demands the lightest possible solution.
- Choose Square when: Simpler panel assembly and higher per-tile coverage are preferred.
- Choose Hexagonal when: Minimizing inter-tile gaps and maximizing multi-directional edge interlock are priorities.
