Pressureless Sintered Silicon Carbide Ballistic Tile with Hexagonal Shape and 3.15g/cm3 Density for Superior Protection

Product Details:

Place of Origin: Hunan, China
Brand Name: High Broad
Certification: ISO 9001:2015
Model Number: HB-SIC-PLS-001
Document: SIC Ballistic Armor Tiles-P...ad.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 10 KGS
Price: According to quantity and specification
Packaging Details: Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging
Delivery Time: 7-25 working days depending on order volume
Payment Terms: T/T,L/C,Western Union,PayPal
Supply Ability: 50000 Pieces per Month
Get Best Price Contact Now

Detail Information
Shape: Hexagonal Density: >=3.15 G/cm3
Compressive Strength: >=2500 MPa Available Thickness: 5mm To 15mm
Maximum Service Temperature: 1600 C Fracture Toughness: >=4.0 MPa.m1/2
Highlight:

Pressureless Sintered SiC Tile

,

High Density Ceramic Armor Plate

,

Hexagonal Ballistic Protection Tile

Product Description

Pressureless Sintered Silicon Carbide Ballistic Tile 3.15g/cm³ Density Hexagonal Shape Custom Size Available
Our pressureless sintered silicon carbide (SiC) ballistic tiles deliver exceptional hardness and density, making them a premier choice for demanding protective applications. The pressureless sintering process ensures uniform microstructure and consistent mechanical properties throughout each tile.
Key Advantages of Silicon Carbide
  • Superior Hardness: Vickers hardness exceeding 2800 HV provides outstanding resistance against high-velocity impacts
  • High Density: 3.15 g/cm³ density ensures excellent energy absorption and fragmentation capability
  • Thermal Stability: Maintains structural integrity at temperatures up to 1600°C
  • Chemical Inertness: Excellent resistance to acids, alkalis, and corrosive environments
  • Lightweight Protection: Significantly lighter than traditional steel armor at equivalent protection levels

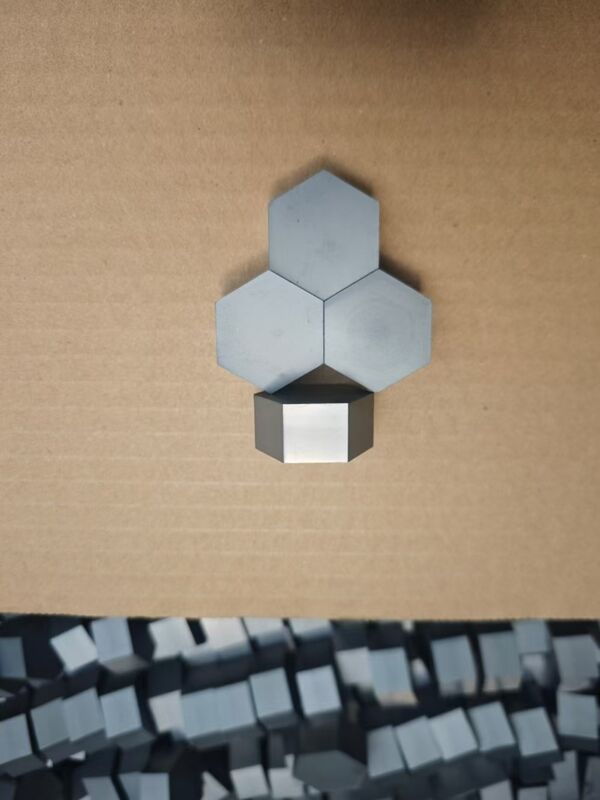

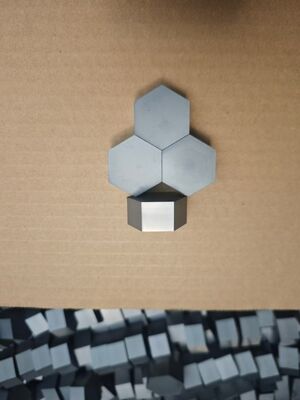

Hexagonal Design Benefits
The hexagonal geometry provides superior multi-hit capability by distributing impact stress across adjacent tiles. Interlocking edges ensure seamless coverage with minimal gap vulnerability.
Customization Service

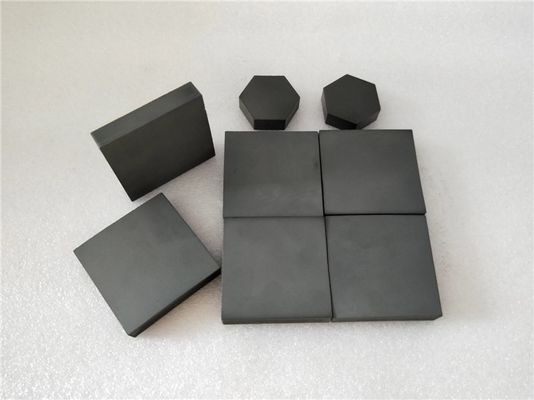

We offer fully customized dimensions to match your specific requirements. Standard sizes range from 50×50mm to 300×300mm with thickness options from 5mm to 15mm. Custom shapes including rectangular, trapezoidal, and contoured profiles are available upon request. OEM specifications are welcomed.
Typical Applications
  • Personnel protective equipment backing plates
  • Vehicle structural protection panels
  • Fixed installation security barriers
  • Aircraft critical component shielding
  • Naval vessel protective layering
Quality Assurance
Each tile undergoes rigorous ultrasonic inspection and dimensional verification. Material certificates with batch traceability are provided with every shipment. ISO 9001:2015 certified manufacturing ensures consistent quality.
