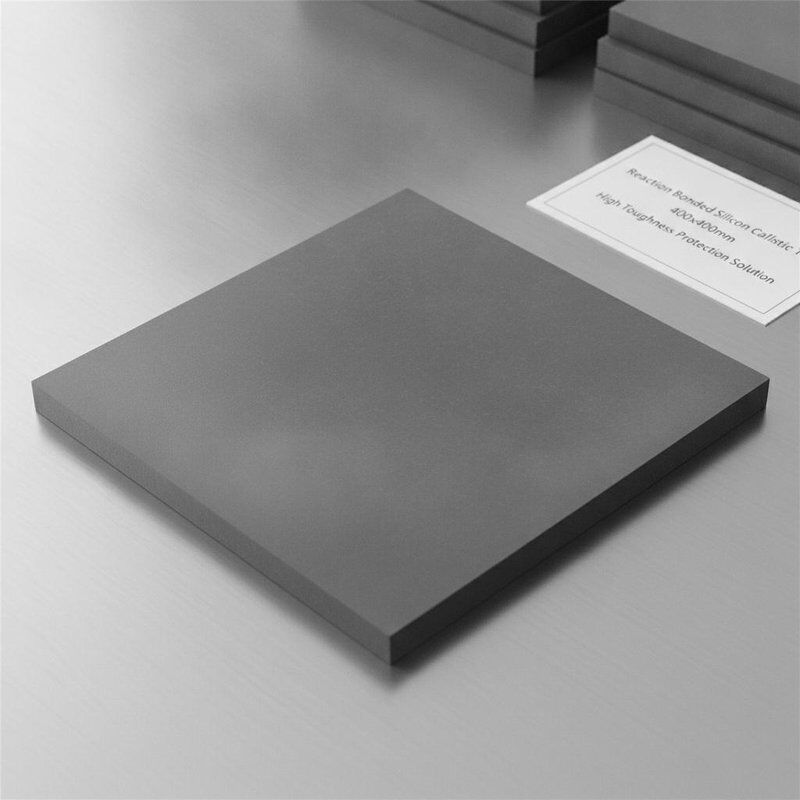

Reaction Bonded Silicon Carbide Ballistic Tile 400x400mm High Toughness Protection Solution
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-SIC-RB-003 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | According to quantity and specification |
| Packaging Details: | Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging |
| Delivery Time: | 7-25 working days depending on order volume |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Pieces per Month |
|
Detail Information |
|||
| Maximum Tile Size: | 400 X 400 Mm | Density: | >=3.02 G/cm3 |
|---|---|---|---|
| Maximum Service Temperature: | 1380 C | Compressive Strength: | >=2000 MPa |
| Available Thickness: | 6mm To 20mm | Vickers Hardness: | >=2500 HV |
| Highlight: | Reaction Bonded SiC Tile,Large Format Ceramic Armor Plate,Cost Effective Ballistic Protection |
||
Product Description
Reaction Bonded Silicon Carbide Large Format Ballistic Tile
Our reaction bonded silicon carbide large format tiles provide an exceptional balance between protective performance and manufacturing economy. Capable of being produced in sizes up to 400x400mm, these tiles minimize seam lines and simplify installation for large-area applications.
Reaction Bonded SiC Advantages
- Large Format Capability: Tile dimensions up to 400x400mm, reducing seam count and installation complexity
- Cost Efficiency: Reaction bonding process enables economically competitive production at scale
- Near-Net Shape Manufacturing: Minimal post-sintering machining required, reducing production lead times
- High Toughness: Excellent fracture resistance with residual silicon phase providing crack deflection
- Thermal Shock Resistance: Superior resistance to rapid temperature changes up to 400°C delta
Large Format Benefits
Larger tile dimensions translate to fewer joints per protected area, reducing installation time and eliminating potential weak points at tile interfaces. Ideal for vehicle floors and wall panels where continuous coverage is essential.
Custom Configuration Options
We can manufacture tiles to your exact dimensional requirements within the 400x400mm envelope. Thickness options from 6mm to 20mm accommodate various threat levels. Beveled edges, mounting holes, and interlocking profiles available upon request. OEM partnership welcomed for volume production programs.
Primary Applications
- Vehicle floor and side panel protection
- Fixed-position security installations
- Building envelope hardening
- Maritime vessel structural shielding
- Industrial equipment protection
