Hexagonal Interlocking Silicon Carbide Ballistic Tile with Precision Edge Mating for Enhanced Protection
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-SIC-HEX-005 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | According to quantity and specification |
| Packaging Details: | Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging |
| Delivery Time: | 7-25 working days depending on order volume |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Pieces per Month |
|
Detail Information |
|||
| Density: | >=3.12 G/cm3 | Vickers Hardness: | >=2800 HV |
|---|---|---|---|
| Edge Mating Tolerance: | +/-0.1mm | Available Diagonal Size: | 50mm To 200mm |
| Flexural Strength: | >=400 MPa | Available Thickness: | 5mm To 12mm |
| Highlight: | Interlocking Hexagonal SiC Tile,Precision Edge Ceramic Armor Plate,Multi Hit Ballistic Ceramic Tile |
||
Product Description

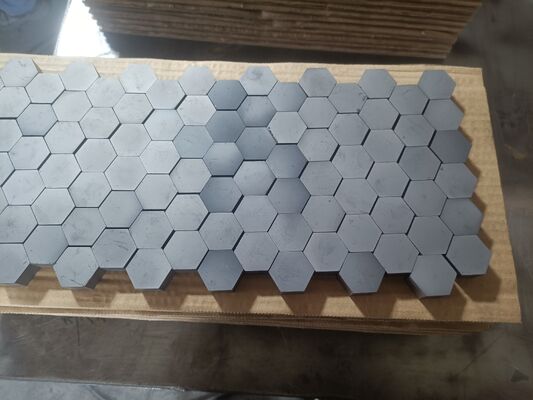

Hexagonal Interlocking Silicon Carbide Ballistic Tile
Our precision hexagonal interlocking silicon carbide tiles feature engineered edge profiles that achieve near-seamless mating between adjacent tiles. This design maximizes protective continuity while enabling efficient tiling of complex surface geometries.
Interlocking Design Advantages
- Precision Edge Mating: Plus or minus 0.1mm tolerance on interlocking edges ensures consistent gap control
- Enhanced Multi-Hit Capability: Stress distribution across interlocked tile array improves overall system resilience
- Reduced Edge Vulnerability: Overlapping edge geometry eliminates direct impact paths through tile joints
- Flexible Coverage Patterns: Hexagonal tiling adapts to curved and irregular surfaces
- Simplified Assembly: Self-aligning edge profiles reduce installation time and complexity
Silicon Carbide Performance
Pressureless sintered SiC provides an optimal combination of hardness exceeding 2800 HV, density above 3.12 g/cm³, and cost efficiency. The material's inherent thermal stability makes it suitable for environments subject to temperature extremes.
Customization Services
We offer hexagonal tiles in diagonal sizes from 50mm to 200mm with edge profile customization available. Thickness options from 5mm to 12mm. Custom edge geometries can be developed through collaborative engineering with your design team. Sample orders encouraged for fit verification.
Typical Applications
- Modular vehicle protection kits
- Curved surface protective arrays
- Scalable area protection systems
- Structural security hardening
