Multi-Curve Boron Carbide Ballistic Tile with Contoured Profile and 3000 HV Hardness for Enhanced Protection
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-B4C-MC-004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | According to quantity and specification |

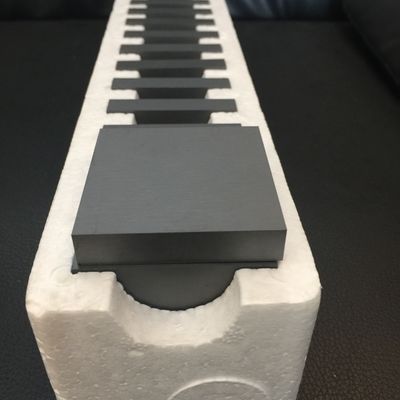

| Packaging Details: | Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging |
| Delivery Time: | 7-25 working days depending on order volume |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Pieces per Month |
|
Detail Information |
|||
| Density: | 2.48-2.52 G/cm3 | Available Thickness: | 5mm To 10mm |
|---|---|---|---|
| Standard Sizes: | 250x300mm, 200x250mm, 150x200mm | Curve Type: | Single Curve / Double Curve |
| Vickers Hardness: | >=3000 HV | Flexural Strength: | >=400 MPa |
| Highlight: | Multi Curve Boron Carbide Tile,Contoured Ballistic Ceramic Plate,Double Curved Protection Ceramic |
||
Product Description

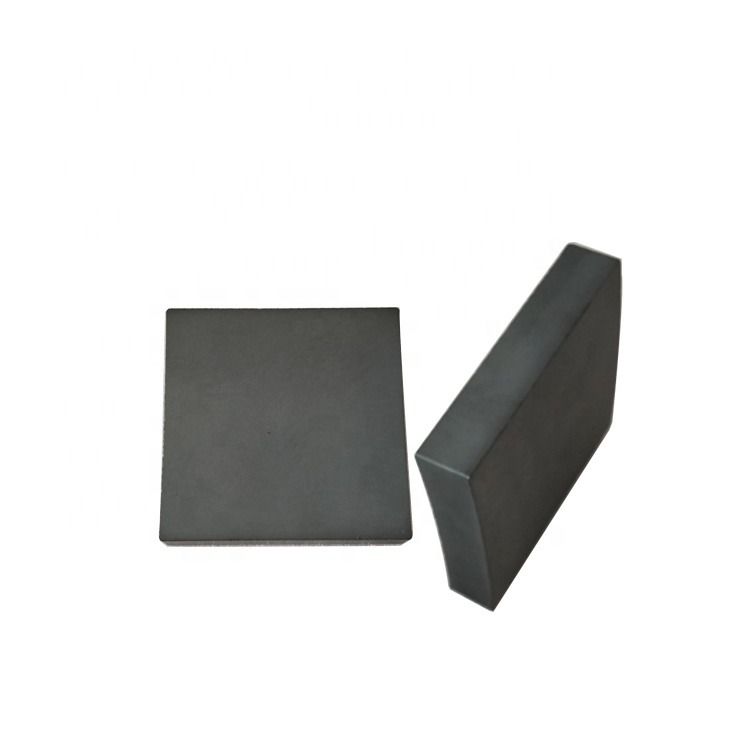

Our multi-curve boron carbide tiles are precision-engineered with contoured profiles to match anatomical body shapes. The combination of boron carbide ultra-lightweight properties with ergonomic curvature delivers superior comfort and protection for personal wearable systems.
- Anatomical Fit: Single and double curvature options designed to conform to body contours for improved wearability
- Weight Reduction: B4C 2.50 g/cm³ density combined with optimized curvature reduces overall system weight by up to 30% versus flat plate alternatives
- Enhanced Coverage: Curved geometry provides wider effective coverage angle compared to flat plates
- Trauma Reduction: Curved profile helps distribute back-face deformation more evenly
- Superior Hardness: 3000 HV ensures effective disruption of incoming projectiles
We offer both single-curve cylindrical bend and double-curve spherical compound profiles. Radius specifications can be customized to your exact requirements. Both strike face convex and body-side concave configurations available.
Our engineering team works directly with your design specifications to produce tiles matching your exact curvature profiles. We can develop custom molds for unique geometries based on 3D CAD data. Prototyping to volume production supported with rapid turnaround on sample orders.
Each contoured tile undergoes coordinate measuring machine verification of curvature profile, ultrasonic inspection for internal defects, and hardness testing. ISO 9001:2015 certified manufacturing ensures repeatable quality.
