Silicon Carbide Ballistic Tile with 120 W/mK Thermal Conductivity, 1600 C Maximum Service Temperature, and >=400 MPa Flexural Strength
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-SIC-TC-007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | According to quantity and specification |
| Packaging Details: | Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging |
| Delivery Time: | 7-25 working days depending on order volume |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Pieces per Month |
|
Detail Information |
|||
| Shape: | Square / Rectangular | Density: | >=3.10 G/cm3 |
|---|---|---|---|
| Flexural Strength: | >=400 MPa | Maximum Service Temperature: | 1600 C |
| Thermal Expansion Coefficient: | 4.0 X 10-6 /C | Vickers Hardness: | >=2800 HV |
| Highlight: | High Thermal SiC Ballistic Tile,Heat Dissipation Ceramic Armor,Sintered Silicon Carbide Protection |
||
Product Description
Our high thermal conductivity silicon carbide ballistic tiles uniquely combine protective performance with exceptional heat dissipation capability. With thermal conductivity of 120 W/mK many times higher than competing ceramic materials, these tiles serve dual functions where both protection and thermal management are critical.
- Thermal Conductivity 120 W/mK: Efficiently dissipates heat, comparable to some metal alloys while maintaining ceramic hardness
- Thermal Shock Resistance: Withstands rapid temperature fluctuations without structural degradation
- High Temperature Stability: Maintains full mechanical properties up to 1600°C
- Low Thermal Expansion: 4.0 × 10⁻⁶ per degree C minimizes thermal stress in bonded assemblies
- Combined Protection: Simultaneously addresses thermal and ballistic threats in a single material layer
Ideal for engine bay shielding, exhaust-adjacent panels, and high-temperature industrial environments where conventional protection materials would degrade. The thermal management capability reduces heat buildup behind the protected surface, enhancing overall system longevity.

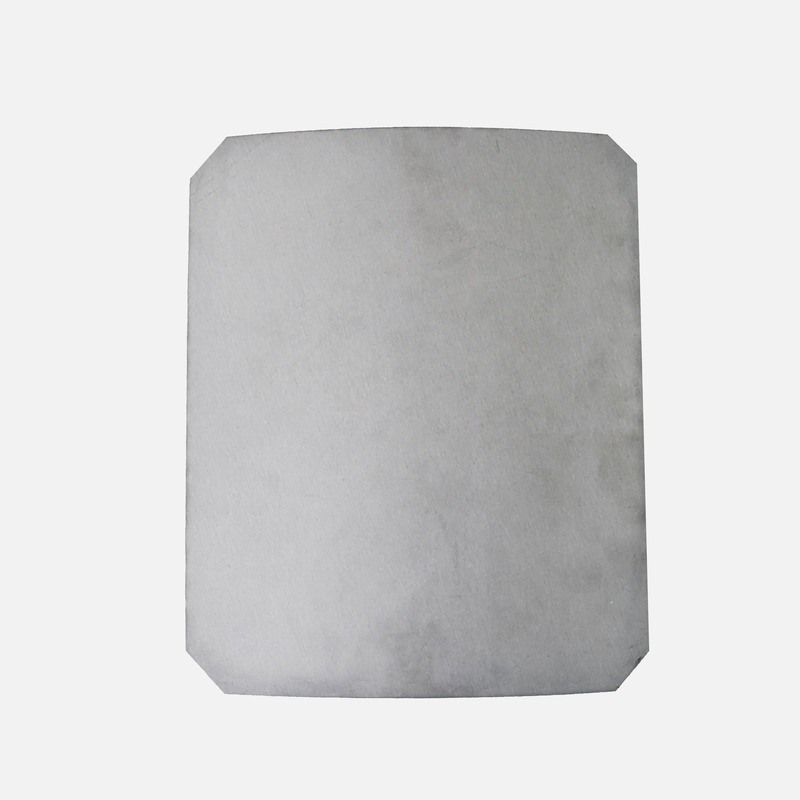

Available in square and rectangular geometries with dimensions customized to your requirements. Thickness from 5mm to 18mm. Surface finishing options include as-sintered, ground, and polished. OEM specifications welcomed for volume production programs.
