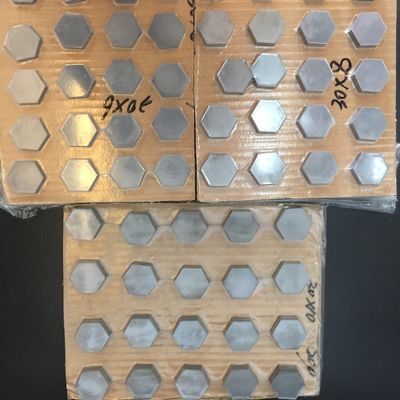

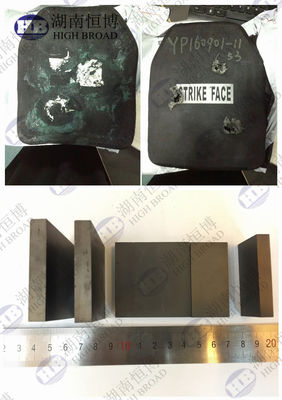

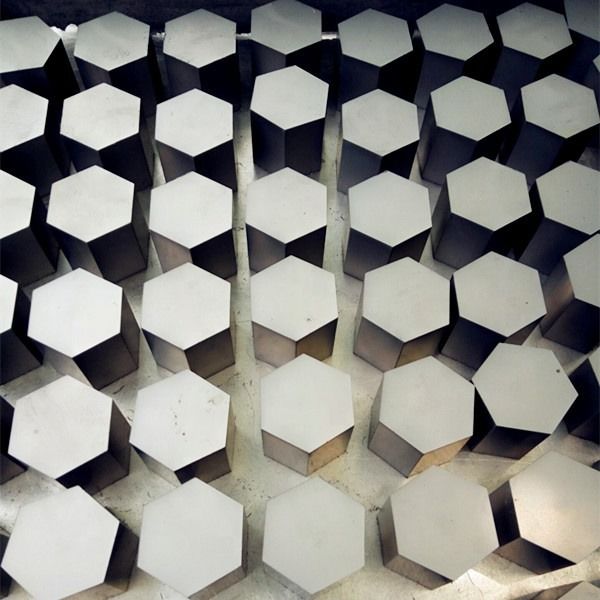

Boron Carbide Ballistic Tile with Custom Dimensions, 2.52g/cm3 Density, and 3000-3300 HV Hardness for Premium Ceramic Protection
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-B4C-REC-006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | According to quantity and specification |
| Packaging Details: | Export-grade plywood case with custom foam cushioning, vacuum-sealed inner packaging |
| Delivery Time: | 7-25 working days depending on order volume |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Pieces per Month |
|
Detail Information |
|||
| Density: | 2.48-2.52 G/cm3 | Compressive Strength: | >=2800 MPa |
|---|---|---|---|
| Width Range: | 50mm To 300mm | Fracture Toughness: | 3.5-4.5 MPa.m1/2 |
| Vickers Hardness: | 3000-3300 HV | Flexural Strength: | 400-550 MPa |
| Highlight: | Boron Carbide Custom Tile Size,Rectangular Ceramic Armor Plate,Full Custom Ballistic Protection |
||
Product Description
We specialize in manufacturing boron carbide rectangular ballistic tiles to your exact dimensional requirements. Whether you need a single prototype size or regular production of multiple specifications, our flexible manufacturing process accommodates your needs without expensive tooling charges.
- Density 2.48-2.52 g/cm3: Among the lightest ceramic materials suitable for high-performance protection
- Hardness 3000-3300 HV: Exceptional hardness provides effective disruption of incoming threats
- High Elastic Modulus: 440-460 GPa stiffness maintains plate rigidity under load
- Chemical Stability: Resistant to environmental degradation and corrosion
- Neutron Attenuation: Naturally absorbs thermal neutrons for dual-purpose applications
Our flexible manufacturing system supports any rectangular dimension within our process envelope: width 50-300mm, length 50-350mm, thickness 4-15mm. Non-standard aspect ratios and off-size specifications are our specialty. We do not require you to adapt your design to our standard sizes.
We work confidentially with system integrators to produce tiles matching proprietary specifications. Long-term supply agreements with quality consistency guaranteed. Technical support available for material selection and tile geometry optimization.
