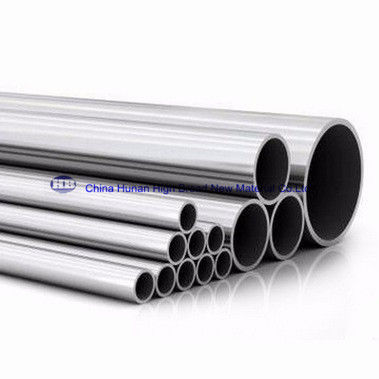

Magnesium Alloy Hollow Tube HB-HT-60x5 AZ61A 60mm OD x 5mm Wall Thickness for Rail Vehicle Body Frame
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HB Magnesium |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-HT-60x5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Kilograms |
|---|---|
| Price: | USD 10-100 / Kilogram |
| Packaging Details: | Wooden crate with VCI anti-rust paper and moisture-proof plastic film wrapping |
| Delivery Time: | 10-20 working days after order confirmation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30000 Kilograms per Month |
|
Detail Information |
|||
| Model: | HB-HT-60x5 | Profile Type: | Hollow Tube |
|---|---|---|---|
| Alloy Grade: | AZ61A | Dimensions: | OD 60mm, Wall 5mm |
| Standard Length: | 4000mm | Tensile Strength: | 295 MPa |
| Yield Strength: | 180 MPa | Elongation: | 12% |
| Surface Finish: | Anodized Black | Application: | Body Frame Structural Members For Rail And Metro Vehicles |
| Manufacturing Process: | Hot Extrusion | Certificate: | ISO 9001:2015, COA, MTR |
| Highlight: | Magnesium Alloy Hollow Tube 60mm OD,AZ61A rail vehicle body frame tube,Hollow magnesium extrusion with 5mm wall thickness |
||
Product Description
Magnesium Alloy Hollow Tube - HB HB-HT-60x5
The HB-HT-60x5 is a high-performance magnesium alloy hollow tube manufactured from AZ61A grade material through precision extrusion. This profile is specifically engineered for body frame structural members for rail and metro vehicles, offering an exceptional strength-to-weight ratio and excellent vibration damping characteristics.
Key Features
- Lightweight Design: With a density of approximately 1.78 g/cm³, magnesium alloy profiles deliver up to 33% weight reduction compared to aluminum and 75% compared to steel
- Integrated Cross-Section: Single-extrusion profile enables load-bearing capability and functional integration, eliminating assembly steps and reducing part count
- Superior Damping: Excellent vibration and noise absorption properties make it ideal for dynamic and transportation applications
- High Recyclability: 100% recyclable material supporting sustainable manufacturing goals
- Good Machinability: Easy to cut, drill, tap, and weld with standard tooling and processes
Product Specifications
| Model | HB-HT-60x5 |
| Profile Type | Hollow Tube |
| Alloy Grade | AZ61A |
| Dimensions | OD 60mm, Wall 5mm |
| Standard Length | 4000mm (custom lengths available) |
| Approx. Weight | 2.53 kg/m |
| Tensile Strength | 295 MPa |
| Yield Strength | 180 MPa |
| Elongation | 12% |
| Surface Finish | Anodized Black |
Applications
- Body frame structural members for rail and metro vehicles
- Structural and semi-structural components requiring lightweight design
- Transportation interiors: rail carriage luggage racks, seat frames, and armrests
- Industrial automation: robotic arms, guide rails, and modular assembly frames
- Electronics: heat sinks, enclosures, and chassis for portable devices
Quality Assurance
All HB magnesium extrusion profiles are manufactured under ISO 9001:2015 certified quality management system. Each batch undergoes chemical composition analysis via optical emission spectrometry (OES), mechanical property testing per ASTM standards, and dimensional inspection. Certificate of Analysis (COA) and Material Test Report (MTR) are provided with every shipment.
Custom Extrusion Service
We offer custom die design and manufacturing for bespoke magnesium extrusion profiles. Our engineering team can work from your CAD drawings or develop a profile design based on your application requirements. Standard lead time for custom die manufacturing is 15-25 working days. Contact us with your specifications for a tailored solution.
