SiC Whisker Reinforced Ballistic Tile with NIJ Level III Protection in 100x100x9mm Size
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | SIC-WH-1009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | EPE foam separator and moisture-proof bag inside export-grade carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 300000 Pieces per Month |
|
Detail Information |
|||
| Flexural Strength: | 420 MPa | Areal Density: | 28.4 Kg/m2 |
|---|---|---|---|
| Size: | 100 X 100 X 9 Mm | Fracture Toughness: | 5.2 MPa.m1/2 |
| Density: | 3.15 G/cm3 | Hardness: | 2600-2800 HV |
| Highlight: | Whisker Reinforced SiC Strike Face,Micro-Toughened Ceramic Armor Tile,NIJ III Ballistic Insert |
||
Product Description
Micro-Toughened Silicon Carbide Ballistic Tile SiC Whisker Reinforced Strike Face NIJ Level III 100x100x9mm
Product Overview
This micro-toughened silicon carbide ballistic tile integrates SiC whisker reinforcement into a dense ceramic strike face. The whisker network deflects and bridges cracks, sharply raising fracture toughness so the tile survives repeated impacts without catastrophic spalling. It is engineered for armor systems that demand multi-hit capability with minimal added weight.
Key Features
- SiC whisker reinforcement raises fracture toughness for higher multi-hit durability
- Dense pressureless-sintered body with 2600-2800 HV hardness
- Lightweight 3.15 g/cm³ density lowers the total armor system burden
- Uniform flat surface for reliable lamination with backing materials
- Meets NIJ Level III ballistic protection requirements
Technical Specifications
| Material | Silicon Carbide (SiC) |
| Reinforcement | SiC whiskers |
| Density | 3.15 g/cm³ |
| Hardness | 2600-2800 HV |
| Flexural Strength | 420 MPa |
| Fracture Toughness | 5.2 MPa.m¹/² |
| Ballistic Level | NIJ Level III |
| Size | 100 x 100 x 9 mm |
Performance Comparison
| Parameter | This Product | Standard SiC Tile | Standard B4C Tile | Alumina Tile |
|---|---|---|---|---|
| Fracture Toughness | 5.2 MPa.m¹/² | 3.5 MPa.m¹/² | 2.8 MPa.m¹/² | 3.2 MPa.m¹/² |
| Hardness | 2600-2800 HV | 2500-2700 HV | 3000-3300 HV | 1400-1600 HV |
| Density | 3.15 g/cm³ | 3.15 g/cm³ | 2.52 g/cm³ | 3.90 g/cm³ |
| Multi-Hit Capacity | Enhanced | Standard | High | Low |
| Weight | Low | Low | Ultra-Low | High |
| Cost Level | Medium | Low-Medium | High | Low |
Applications

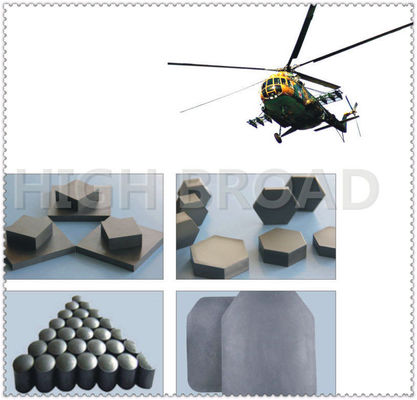

Suitable for personal ballistic protection inserts, vehicle armor panels and security barriers where repeated impact resistance and controlled weight are required.
