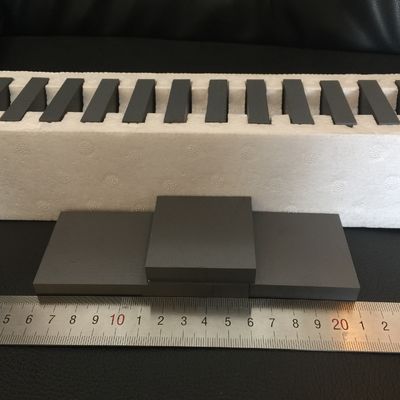

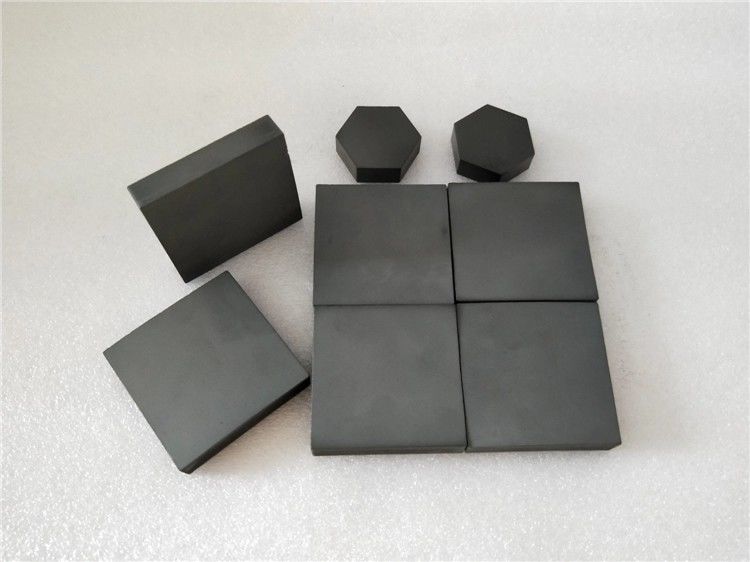

Nano-grained Boron Carbide Ballistic Tile with NIJ Level IV Protection in 50x50x8mm Size
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | B4C-NG-508 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 3-8 / Piece |
| Packaging Details: | EPE foam separator and moisture-proof bag inside export-grade carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 200000 Pieces per Month |
|
Detail Information |
|||
| Size: | 50 X 50 X 8 Mm | Grain Structure: | Nano-grained |
|---|---|---|---|
| Flexural Strength: | 480 MPa | Areal Density: | 20.0 Kg/m2 |
| Fracture Toughness: | 4.1 MPa.m1/2 | Density: | 2.50 G/cm3 |
| Highlight: | Nano-Grained Boron Carbide Tile,Micro-Toughened B4C Strike Face,NIJ IV Ceramic Armor Insert |
||
Product Description
Nano-Grained Boron Carbide Ballistic Tile Micro-Toughened B4C Ceramic Strike Face NIJ Level IV 50x50x8mm
Product Overview
This nano-grained boron carbide ballistic tile refines the ceramic microstructure to the sub-micron scale, creating abundant grain boundaries that blunt and divert propagating cracks. The micro-toughening effect lifts flexural strength and impact resistance while retaining B4C's ultra-low density, delivering NIJ Level IV protection in a thin, lightweight strike face.
Key Features
- Nano-grained microstructure enhances strength and crack deflection
- Ultra-low 2.50 g/cm³ density for premium lightweight armor
- 3000-3300 HV hardness for maximum projectile defeat
- Thin 8 mm profile suits compact protective inserts
- Meets NIJ Level IV ballistic protection requirements
Technical Specifications
| Material | Boron Carbide (B4C) |
| Grain Structure | Nano-grained |
| Density | 2.50 g/cm³ |
| Hardness | 3000-3300 HV |
| Flexural Strength | 480 MPa |
| Fracture Toughness | 4.1 MPa.m¹/² |
| Ballistic Level | NIJ Level IV |
| Size | 50 x 50 x 8 mm |
Performance Comparison
| Parameter | This Product | Standard SiC Tile | Standard B4C Tile | Alumina Tile |
|---|---|---|---|---|
| Grain Size | Nano-scale | Micron-scale | Micron-scale | Micron-scale |
| Hardness | 3000-3300 HV | 2500-2700 HV | 3000-3300 HV | 1400-1600 HV |
| Density | 2.50 g/cm³ | 3.15 g/cm³ | 2.52 g/cm³ | 3.90 g/cm³ |
| Flexural Strength | 480 MPa | 400 MPa | 400 MPa | 300 MPa |
| Weight | Ultra-Low | Low | Ultra-Low | High |
| Cost Level | High | Low-Medium | High | Low |
Applications
- High-end personal protection plates
- Helicopter and vehicle armor
- Any application where minimum weight and maximum hardness are critical
