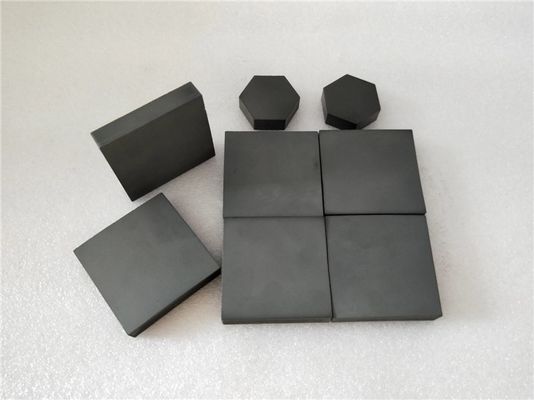

Gradient B4C-SiC Composite Ballistic Tile with NIJ Level IV Protection in 100x100x10mm Size
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | B4C-SIC-GD-10010 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-5 / Piece |
| Packaging Details: | EPE foam separator and moisture-proof bag inside export-grade carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 150000 Pieces per Month |
|
Detail Information |
|||
| Areal Density: | 28.0 Kg/m2 | Layer Structure: | Gradient B4C-SiC |
|---|---|---|---|
| Ballistic Level: | NIJ Level IV | Flexural Strength: | 450 MPa |
| Size: | 100 X 100 X 10 Mm | Density: | 2.80 G/cm3 |
| Highlight: | Gradient B4C SiC Layered,Hybrid Ceramic Armor Tile,NIJ IV Multi-Hit Strike Face |
||
Product Description
Gradient Boron Carbide Silicon Carbide Composite Ballistic Tile
Product Overview
This gradient boron carbide silicon carbide composite tile fuses a hard B4C front face with a tougher SiC rear layer through a controlled compositional transition. The structural composite architecture eliminates sharp interfaces, allowing stress waves to pass smoothly across the tile instead of reflecting at brittle boundaries. The result is NIJ Level IV performance with substantially better multi-hit endurance than single-material ceramics.
Key Features
- Gradient B4C-SiC transition removes weak bonding interfaces
- Hard B4C front face plus tougher SiC rear layer
- Smooth stress-wave transmission improves multi-hit endurance
- Balanced 2.80 g/cm³ density and 2800-3000 HV hardness
- Meets NIJ Level IV ballistic protection requirements
Technical Specifications
| Material | B4C / SiC gradient composite |
| Layer Structure | Gradient B4C-SiC |
| Density | 2.80 g/cm³ |
| Hardness | 2800-3000 HV |
| Flexural Strength | 450 MPa |
| Ballistic Level | NIJ Level IV |
| Size | 100 x 100 x 10 mm |
Performance Comparison
| Parameter | This Product | Standard SiC Tile | Standard B4C Tile | Alumina Tile |
|---|---|---|---|---|
| Interface | Gradient transition | None | None | None |
| Hardness | 2800-3000 HV | 2500-2700 HV | 3000-3300 HV | 1400-1600 HV |
| Density | 2.80 g/cm³ | 3.15 g/cm³ | 2.52 g/cm³ | 3.90 g/cm³ |
| Multi-Hit Capacity | High | Standard | High | Low |
| Weight | Low | Low | Ultra-Low | High |
| Cost Level | Medium-High | Low-Medium | High | Low |
Applications
Suitable for high-threat personal protection plates, vehicle add-on armor, and security installations requiring NIJ Level IV performance with dependable repeat-hit capability.
