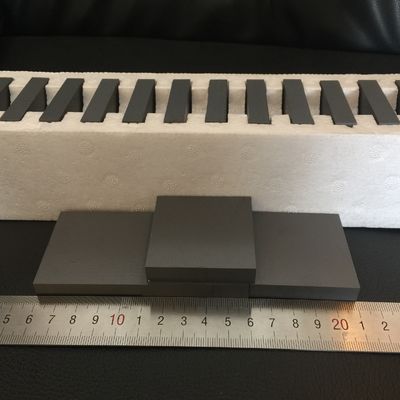

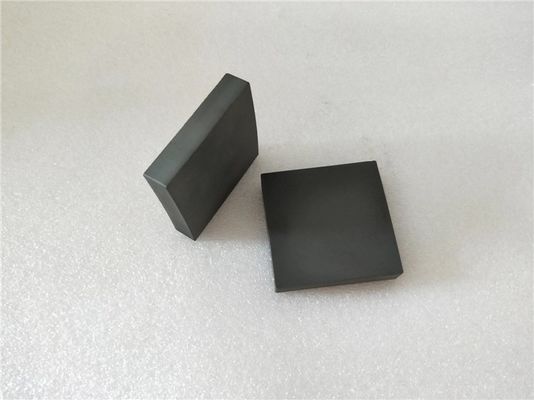

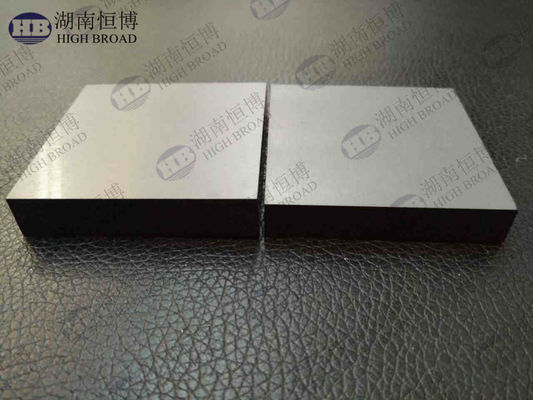

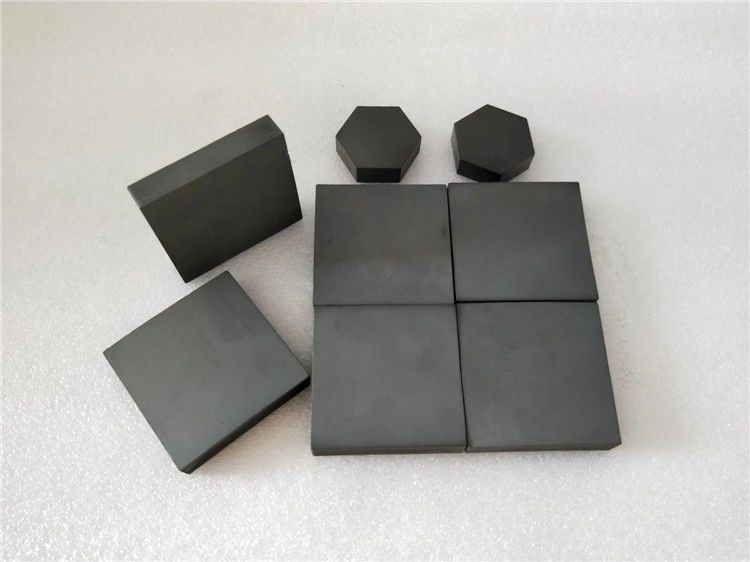

Modular Boron Carbide Ballistic Tile with Rail-guided Quick Assembly NIJ Level IV 50x50x8mm
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | B4C-ER-508 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 2-10 / Piece |

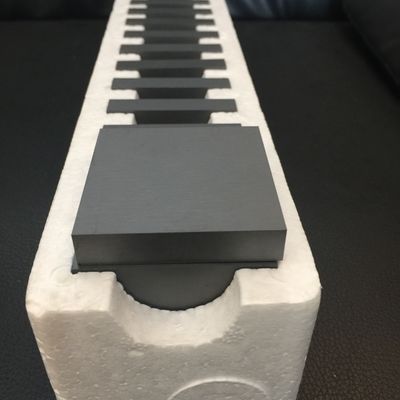

| Packaging Details: | EPE foam separator and moisture-proof bag inside export-grade carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 200000 Pieces per Month |
|
Detail Information |
|||
| Assembly: | Rail-guided Quick Assembly | Joint Type: | Edge Rail |
|---|---|---|---|
| Flexural Strength: | 400 MPa | Size: | 50 X 50 X 8 Mm |
| Density: | 2.52 G/cm3 | Hardness: | 3000-3300 HV |
| Highlight: | Edge Rail Modular Tile,Boron Carbide Strike Face,NIJ IV Quick Assembly Armor |
||
Product Description
This modular boron carbide tile features a rail-guided edge design that slides adjacent tiles into locked alignment, enabling rapid field assembly of NIJ Level IV protection surfaces. The ultra-light B4C body keeps the assembled system remarkably light, while the standardized 50x50 mm module permits fine-grained layout control and individual tile replacement after damage.
- Rail-guided edges allow fast, precise tile alignment
- Ultra-light 2.52 g/cm³ B4C keeps system weight low
- Fine 50x50 mm module for precise layout control
- Individual tile replacement reduces lifecycle cost
- Meets NIJ Level IV ballistic protection requirements
| Material | Boron Carbide (B4C) |
| Joint Type | Edge rail |
| Density | 2.52 g/cm³ |
| Hardness | 3000-3300 HV |
| Flexural Strength | 400 MPa |
| Ballistic Level | NIJ Level IV |
| Size | 50 x 50 x 8 mm |
| Parameter | This Product | Standard SiC Tile | Standard B4C Tile | Alumina Tile |
|---|---|---|---|---|
| Joint Design | Edge rail | Flat edge | Flat edge | Flat edge |
| Assembly Method | Rail-guided slide | Adhesive lamination | Adhesive lamination | Adhesive lamination |
| Hardness | 3000-3300 HV | 2500-2700 HV | 3000-3300 HV | 1400-1600 HV |
| Density | 2.52 g/cm³ | 3.15 g/cm³ | 2.52 g/cm³ | 3.90 g/cm³ |
| Weight | Ultra-Low | Low | Ultra-Low | High |
| Cost Level | High | Low-Medium | High | Low |
Suitable for premium modular protection systems, aviation and vehicle armor, and high-value security applications requiring lightweight NIJ Level IV performance with rapid assembly.
