Pressureless Sintered Silicon Carbide Ceramic Tile 100x100x16mm Ballistic Armor Plate with ≥2600 HV Hardness
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-100-16 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Density: | ≥3.10 G/cm3 | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
|---|---|---|---|
| Hardness: | ≥2600 HV (Vickers) | Flexural Strength: | ≥400 MPa |
| Compressive Strength: | ≥2500 MPa | SiC Purity: | ≥99.0% |
| Highlight: | 100x100mm Heavy Duty SiC Tile,16mm Thick Ballistic Ceramic,Vehicle Armor Ceramic Plate |
||
Product Description

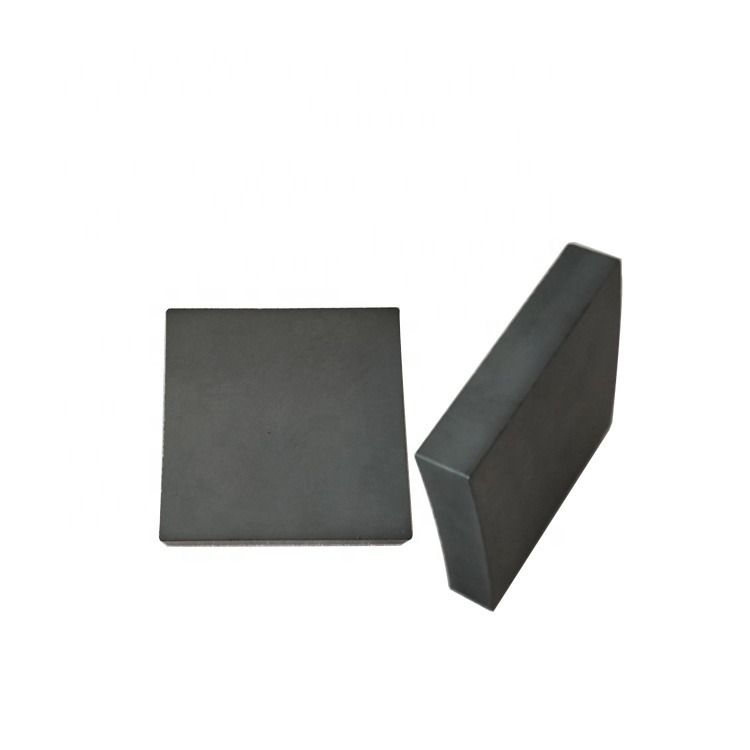

Pressureless Sintered Silicon Carbide Ceramic Tile 100x100x16mm Heavy Duty Square Ballistic Armor Plate
Silicon Carbide Square Ceramic Tile 100x100x16mm Heavy Duty Ballistic Armor. Pressureless sintered silicon carbide ceramic tile in 100 x 100 mm square format with 16 mm heavy duty section for vehicle, boat, and fixed installation armor. Extra thickness combined with high hardness SiC provides maximum protection in a modular square format.
Key Features
- Pressureless sintered silicon carbide (SiC) ceramic tile, 100 x 100 mm square format
- Standard thickness 16 mm, custom thickness from 2 mm to 100 mm available
- SiC purity ≥99.0% with uniform dense microstructure
- Square geometry delivers high per-tile coverage and simple panel assembly
- Consistent dimensional tolerance for tight edge-to-edge layup
- OEM customization for thickness, edge chamfer, and surface finish
- 16 mm heavy duty section for vehicle and fixed armor
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square |
| Tile Size | 100 x 100 mm |
| Thickness | 16 mm (standard), 2-100 mm (custom) |
| SiC Purity | ≥99.0% |
| Density | ≥3.10 g/cm³ |
| Hardness | ≥2600 HV (Vickers) |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| Sintering Method | Pressureless Sintered |
Size and Shape Comparison
| Configuration | Per-Tile Coverage | Assembly | Typical Use |
|---|---|---|---|
| Square 100x100mm | 10000 mm² | Fewer joints, fast layup | Flat armor panels, vehicle armor |
| Square 50x50mm | 2500 mm² | Compact module, curve friendly | Body armor inserts, curved panels |

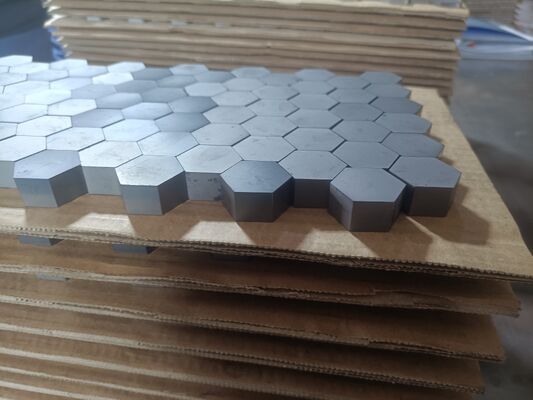

| Hexagonal SW30-50mm | ~779-2165 mm² | Tessellated, no straight seams | Multi-hit body armor |
Available Thickness Options (mm)
| Thickness | Typical Application | Weight Characteristic |
|---|---|---|
| 2-3 mm | Ultra-thin flexible vest inserts | Minimum weight |
| 4-4.1 mm | Lightweight body armor panels | Very light |
| 5-6 mm | Standard body armor strike face | Balanced |
| 7-8 mm | Enhanced multi-hit protection | Moderate |
| 9-10 mm | High-threat personal protection | Heavier |
| 13-16 mm | Vehicle / boat armor panels | Heavy duty |
| Up to 100 mm | Custom engineering armor | Custom |
Material Comparison
| Property | SiC (This Product) | Al2O3 | B4C |
|---|---|---|---|
| Density | ≥3.10 g/cm³ | ≥3.60 g/cm³ | ≥2.48 g/cm³ |
| Hardness | ≥2600 HV | ≥1500 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥300 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 3.0-3.5 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Relative Cost | Medium | Low | High |
| Balance Rating | Best overall balance | Budget option | Lightest option |
Selection Guide
- Choose Square 100x100mm: Maximum per-tile coverage, fewer joints, faster panel production.
- Choose Square 50x50mm: Compact module size, easier curved-panel fitting, finer damage containment.
- Choose Hexagonal: Tessellated layout without continuous straight gaps for enhanced multi-hit performance.
- Thicker tiles (9 mm+): Higher threat level resistance for vehicle and fixed installation armor.
Jane Hu
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road, Changsha, China 410100
Mobile/Whatsapp: +86-139-7515-2932
Wechat: 139-7515-2932
Skype: jane.hu261
QQ: 122367362
Email: janehu@hbnewmaterial.com
Contact us to discuss your specific protection requirements and receive a tailored quotation.
