Pressureless Sintered Silicon Carbide Ceramic Tile 50x50x8mm with ≥99.0% SiC Purity for Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-50-8 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Density: | ≥3.10 G/cm3 | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
|---|---|---|---|
| Hardness: | ≥2600 HV (Vickers) | Flexural Strength: | ≥400 MPa |
| Thickness: | 8 Mm (standard), 2-100 Mm Custom | Compressive Strength: | ≥2500 MPa |
| Highlight: | 50x50mm Square SiC Tile,8mm Thick Ballistic Ceramic,Compact Armor Plate Insert |
||
Product Description

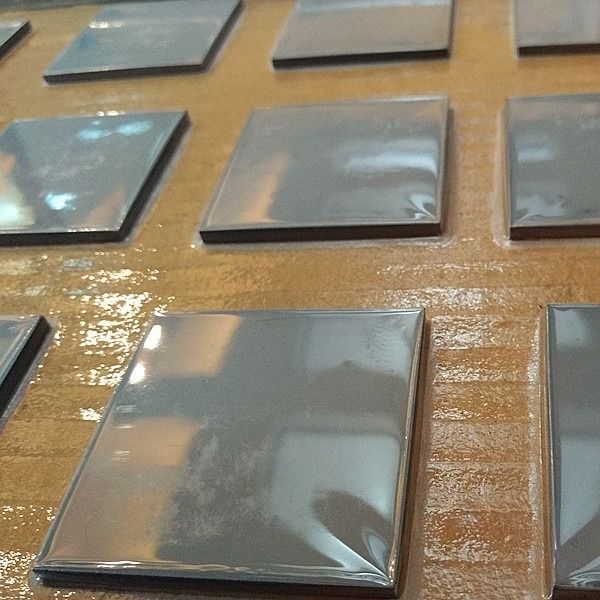

Pressureless Sintered Silicon Carbide Ceramic Tile 50x50x8mm Compact Square Ballistic Armor Plate
Silicon Carbide Square Ceramic Tile 50x50x8mm Compact Ballistic Armor. Pressureless sintered silicon carbide ceramic tile in 50 x 50 mm square format with 8 mm standard thickness. The compact module size offers excellent curved-panel adaptability and finer damage containment while maintaining robust ballistic performance.
Key Features
- Pressureless sintered silicon carbide (SiC) ceramic tile, 50 x 50 mm square format
- Standard thickness 8 mm, custom thickness from 2 mm to 100 mm available
- SiC purity ≥99.0% with uniform dense microstructure
- Square geometry delivers high per-tile coverage and simple panel assembly
- Consistent dimensional tolerance for tight edge-to-edge layup
- OEM customization for thickness, edge chamfer, and surface finish
- Compact 50x50mm module for curved panel fitting
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square |
| Tile Size | 50 x 50 mm |
| Thickness | 8 mm (standard), 2-100 mm (custom) |
| SiC Purity | ≥99.0% |
| Density | ≥3.10 g/cm³ |
| Hardness | ≥2600 HV (Vickers) |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| Sintering Method | Pressureless Sintered |
Size and Shape Comparison
| Configuration | Per-Tile Coverage | Assembly | Typical Use |
|---|---|---|---|
| Square 50x50mm | 2500 mm² | Compact module, curve friendly | Body armor inserts, curved panels |
| Square 100x100mm | 10000 mm² | Fewer joints, fast layup | Flat armor panels, vehicle armor |

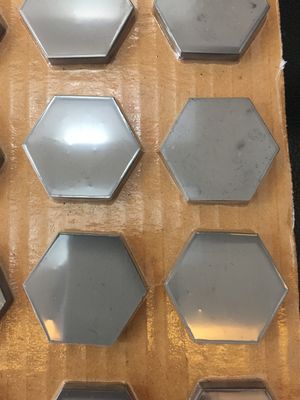

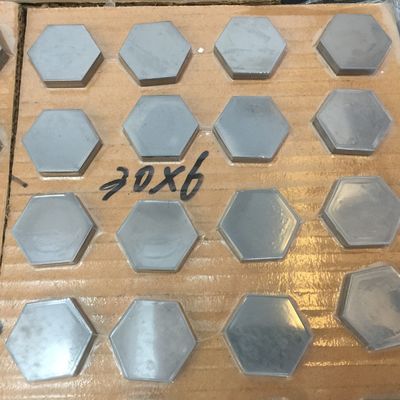

| Hexagonal SW30-50mm | ~779-2165 mm² | Tessellated, no straight seams | Multi-hit body armor |
Available Thickness Options (mm)
| Thickness | Typical Application | Weight Characteristic |
|---|---|---|
| 2-3 mm | Ultra-thin flexible vest inserts | Minimum weight |
| 4-4.1 mm | Lightweight body armor panels | Very light |
| 5-6 mm | Standard body armor strike face | Balanced |
| 7-8 mm | Enhanced multi-hit protection | Moderate |
| 9-10 mm | High-threat personal protection | Heavier |
| 13-16 mm | Vehicle / boat armor panels | Heavy duty |
| Up to 100 mm | Custom engineering armor | Custom |
Material Comparison
| Property | SiC (This Product) | Al2O3 | B4C |
|---|---|---|---|
| Density | ≥3.10 g/cm³ | ≥3.60 g/cm³ | ≥2.48 g/cm³ |
| Hardness | ≥2600 HV | ≥1500 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥300 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 3.0-3.5 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Relative Cost | Medium | Low | High |
| Balance Rating | Best overall balance | Budget option | Lightest option |
Selection Guide
- Choose Square 100x100mm: Maximum per-tile coverage, fewer joints, faster panel production.
- Choose Square 50x50mm: Compact module size, easier curved-panel fitting, finer damage containment.
- Choose Hexagonal: Tessellated layout without continuous straight gaps for enhanced multi-hit performance.
- Thicker tiles (9 mm+): Higher threat level resistance for vehicle and fixed installation armor.
