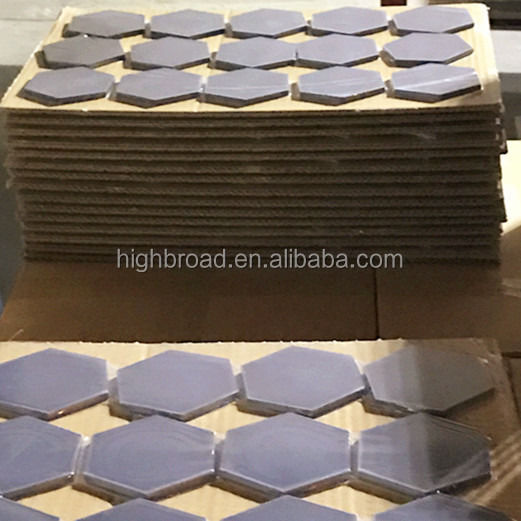

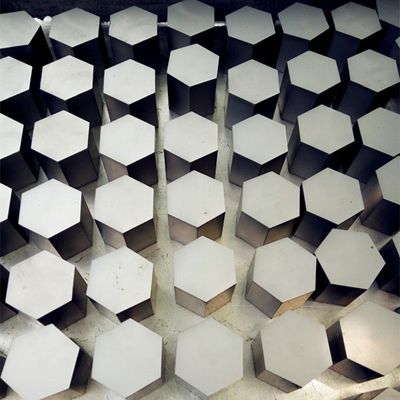

Pressureless Sintered Silicon Carbide Ceramic Tile SW30x5mm Hexagonal Tessellation Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HX-30-5 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |

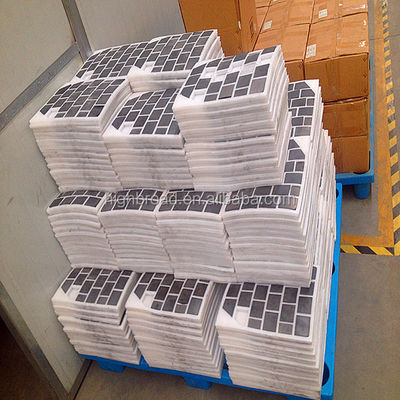

| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Flexural Strength: | ≥400 MPa | Thickness: | 5 Mm (standard), 2-100 Mm Custom |
|---|---|---|---|
| Compressive Strength: | ≥2500 MPa | Tile Size: | SW30 Mm (across Flats) |
| Density: | ≥3.10 G/cm3 | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | SW30mm Hexagonal SiC Tile,5mm Thick Ballistic Ceramic,Hexagon Armor Plate Insert |
||
Product Description
Pressureless Sintered Silicon Carbide Ceramic Hexagonal Tile SW30x5mm Ballistic Armor Plate Insert
Product Overview
Silicon Carbide Hexagonal Ceramic Tile SW30x5mm Standard Ballistic Armor. Pressureless sintered silicon carbide hexagonal ceramic tile with SW30 mm across-flats dimension and 5 mm standard thickness. The mid-size hexagon is the balanced choice for standard body armor mosaic layup, combining tessellation benefits with efficient assembly.
Key Features
- Pressureless sintered silicon carbide (SiC) hexagonal tile, SW30 mm across flats
- Standard thickness 5 mm, custom thickness from 2 mm to 100 mm available
- Hexagon tessellation eliminates continuous straight seams between tiles
- Multi-directional edge interlock improves multi-hit protection performance
- SiC purity ≥99.0% with uniform dense microstructure
- OEM customization for thickness, corner radius, and surface finish
- Mid-size hexagon for standard armor mosaic layup
Technical Specifications
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Hexagonal |
| Tile Size (Across Flats) | SW30 mm |
| Thickness | 5 mm (standard), 2-100 mm (custom) |
| SiC Purity | ≥99.0% |
| Density | ≥3.10 g/cm³ |
| Hardness | ≥2600 HV (Vickers) |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| Sintering Method | Pressureless Sintered |
Hexagon Size Comparison
| Hexagon Size | Across Flats | Relative Coverage | Typical Use |
|---|---|---|---|
| SW20mm | 20 mm | ~346 mm² | Curved / contoured panels |
| SW30mm | 30 mm | ~779 mm² | Standard body armor mosaic |
| SW40mm | 40 mm | ~1386 mm² | Fast assembly panels |
| SW50mm | 50 mm | ~2165 mm² | Flat armor panels |
Available Thickness Options
| Thickness (mm) | Typical Application | Weight Characteristic |
|---|---|---|
| 2-3 mm | Ultra-thin flexible vest inserts | Minimum weight |
| 4-4.1 mm | Lightweight body armor panels | Very light |
| 5-6 mm | Standard body armor strike face | Balanced |
| 7-8 mm | Enhanced multi-hit protection | Moderate |
| 9-10 mm | High-threat personal protection | Heavier |
| 13-16 mm | Vehicle / boat armor panels | Heavy duty |
| Up to 100 mm | Custom engineering armor | Custom |
Material Comparison
| Property | SiC (This Product) | Al2O3 | B4C |
|---|---|---|---|
| Density | ≥3.10 g/cm³ | ≥3.60 g/cm³ | ≥2.48 g/cm³ |
| Hardness | ≥2600 HV | ≥1500 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥300 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 3.0-3.5 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Relative Cost | Medium | Low | High |
| Balance Rating | Best overall balance | Budget option | Lightest option |
Selection Guide
- Choose SW20mm: Smallest module, maximum flexibility for curved and contoured panels.
- Choose SW30mm: Balanced size for standard body armor mosaic layup.
- Choose SW40mm: Larger tiles for faster assembly with good contour adaptability.
- Choose SW50mm: Maximum hexagon coverage, fewer joints, ideal for flat armor panels.
- Thicker tiles (9 mm+): Higher threat level resistance for vehicle and fixed installation armor.
