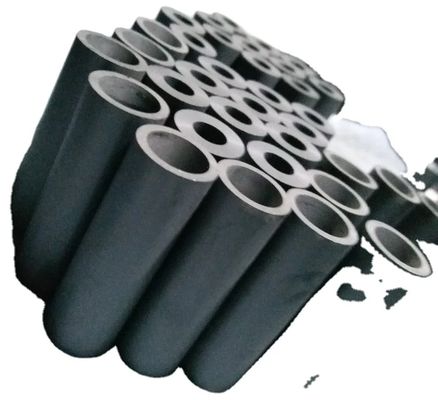

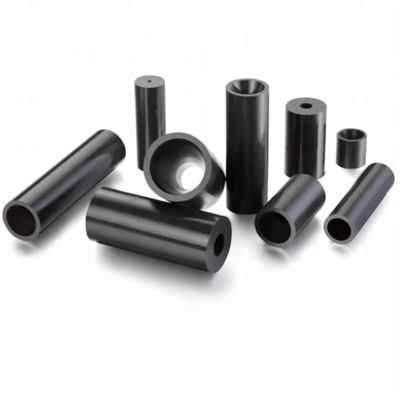

Boron Carbide Sandblasting Nozzle with 3500 Hardness and Higher Impact Toughness for Longer Durability
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | HB-B4C-SC |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD 7-32 / Piece |
| Packaging Details: | Individual plastic tube with foam padding in export carton |
| Delivery Time: | 7-10 working days for stock, 20-30 days for production |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 30000 Pieces per Month |
|
Detail Information |
|||
| Melting Point: | 2450 Deg C | Jacket Material: | Aluminum Alloy |
|---|---|---|---|
| Impact Toughness: | Higher Than SiC | Micro Hardness: | >= 3500 Kgf/mm2 |
| Material: | Boron Carbide B4C | Bore Wear Rate: | Lower |
| Highlight: | Versus Silicon Carbide Ceramic,3500 Knoop Hardness Nozzle,Longer Durability B4C Nozzle |
||
Product Description
Boron Carbide Blasting Nozzle Versus Silicon Carbide Ceramic Longer Durability 3500 Hardness
Boron Carbide vs Silicon Carbide Ceramic Nozzle Comparison
Silicon carbide ceramic is a hard material, but it is also more brittle. Boron carbide combines higher micro hardness with better impact resistance, which is why B4C nozzles hold their bore diameter longer in demanding blasting work.
| Property | Boron Carbide (B4C) | Silicon Carbide (SiC) |
|---|---|---|
| Micro Hardness | ≥ 3500 kgf/mm² | ~ 2500-2800 kgf/mm² |
| Melting Point | 2450 °C | 2730 °C |
| Impact Toughness | Higher | Brittle |
| Bore Wear Rate | Lower | Higher |
Performance Advantages
Chipping at the nozzle mouth is a common failure mode for ceramic nozzles. The tougher B4C structure resists edge chipping, keeping the blast pattern round and the cleaning speed consistent.
Applications
Replacement for silicon carbide ceramic nozzles in cabinet blasters and hand-held blasting equipment.
Replacement Service
Send us the failed nozzle or its dimensions, and we will confirm the matching boron carbide replacement within 24 hours.
