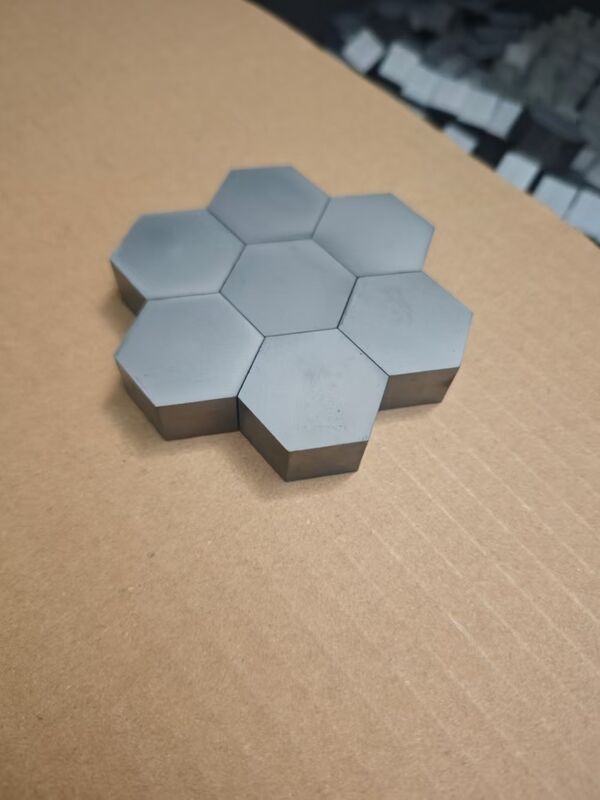

Pressureless Sintered Silicon Carbide Hexagonal SW30mm Ceramic Tile 8mm Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HX-30-08 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Compressive Strength: | ≥2500 MPa | Thickness: | 8mm (custom 2mm-100mm) |
|---|---|---|---|
| Flexural Strength: | ≥400 MPa | Density: | ≥3.10 G/cm3 |
| Fracture Toughness: | 3.8-4.2 MPa.m1/2 | Hardness: | ≥2600 HV (Vickers) |
| Highlight: | SW30mm SiC Hex Tile,8mm Thick Ballistic Ceramic,Compact Hexagon Armor Tile |
||
Product Description
Pressureless Sintered Silicon Carbide Hexagonal Ceramic Tile SW30x8mm Ballistic Armor Plate
SW30mm compact hexagonal silicon carbide ceramic tile in 8mm thickness for ballistic armor plates. The balanced hex size supports standard mosaic layups and curved panel fitting while maintaining ≥2600 HV hardness.
Key Features
- Pressureless sintered silicon carbide (SiC), compact hexagonal SW30mm format
- 8mm standard thickness, custom 2mm to 100mm available
- SiC purity ≥99.0% with dense uniform microstructure
- Balanced hex size for standard mosaic armor layup
- Good adaptability to curved and contoured panels
- OEM customization available
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Hexagonal, SW30mm (30mm across flats) |
| Thickness | 8mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |
| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm ★ | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- SW30mm hex tiles suit standard body protection mosaic layups
- Compact size adapts well to curved and contoured panels
- 8mm thickness balances weight and multi-hit resistance
