Pressureless Sintered Silicon Carbide Tile 50x50mm Square 10mm Thickness Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-50-10 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Compressive Strength: | ≥2500 MPa | Thickness: | 10mm (custom 2mm-100mm) |
|---|---|---|---|
| Density: | ≥3.10 G/cm3 | Flexural Strength: | ≥400 MPa |
| SiC Purity: | ≥99.0% | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | 50x50x10mm SiC Square Tile,10mm Thick Ballistic Ceramic,Compact Square Armor Tile |
||
Product Description
Pressureless Sintered Silicon Carbide Square Ceramic Tile 50x50x10mm Ballistic Armor Plate
Pressureless Sintered Silicon Carbide Square Ceramic Tile 50x50x10mm Ballistic Armor Plate.
50x50mm silicon carbide square ceramic tile in 10mm thickness for ballistic armor plates.
The compact square format with a thick 10mm section provides enhanced protection density
and is easy to lay into modular armor panels.
Key Features
- Pressureless sintered silicon carbide (SiC), square 50x50mm format
- 10mm standard thickness, custom 2mm to 100mm available
- SiC purity ≥99.0% with dense uniform microstructure
- Compact module with thick section for higher threat resistance
- Simple square tessellation for modular panels
- OEM customization available
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square 50x50mm |
| Thickness | 10mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm ★ | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |

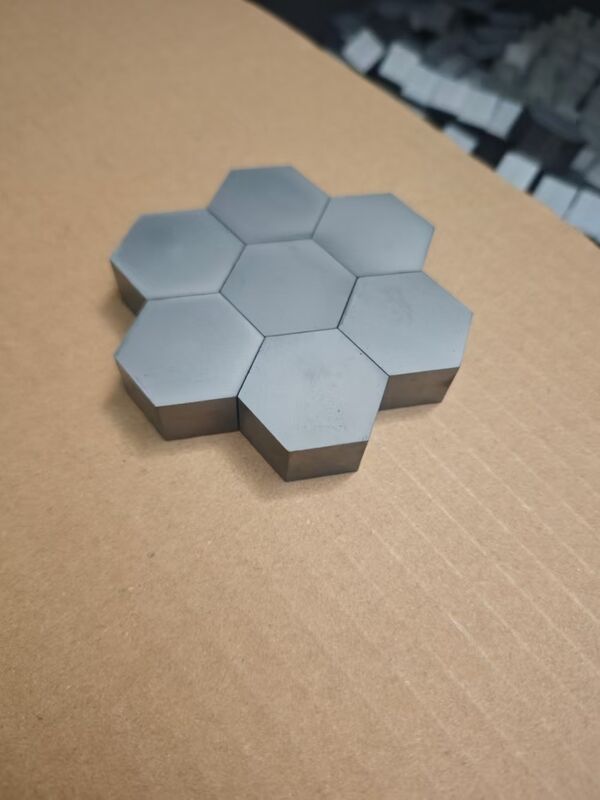

| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- 50x50x10mm tiles suit modular panels needing a thick, compact ceramic core
- Square format gives simple edge-to-edge assembly
- 10mm section upgrades protection without moving to large-format plates
