Pressureless Sintered Silicon Carbide Tile 100x100mm Square 12mm Thickness Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-100-12 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Thickness: | 12mm (custom 2mm-100mm) | Density: | ≥3.10 G/cm3 |
|---|---|---|---|
| Flexural Strength: | ≥400 MPa | Compressive Strength: | ≥2500 MPa |
| Fracture Toughness: | 3.8-4.2 MPa.m1/2 | Hardness: | ≥2600 HV (Vickers) |
| Highlight: | 100x100x12mm SiC Tile,12mm Square Ballistic Ceramic,Wide Coverage Armor Tile |
||
Product Description
Pressureless Sintered Silicon Carbide Square Ceramic Tile 100x100x12mm Ballistic Armor Plate
100x100mm silicon carbide square ceramic tile in 12mm thickness for ballistic armor plates. Wide coverage square geometry reduces joints and speeds panel assembly, while the 12mm section raises protection capability above standard thin tiles.
Key Features
- Pressureless sintered silicon carbide (SiC), square 100x100mm format
- 12mm standard thickness, custom 2mm to 100mm available
- SiC purity ≥99.0% with dense uniform microstructure
- Wide square coverage with fewer joints
- Consistent dimensional tolerance for production
- OEM customization for thickness and chamfer
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square 100x100mm |
| Thickness | 12mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm ★ | Wide coverage, fewer joints, fast panel assembly |

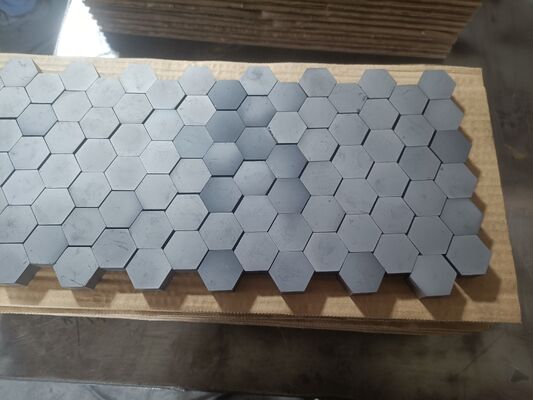

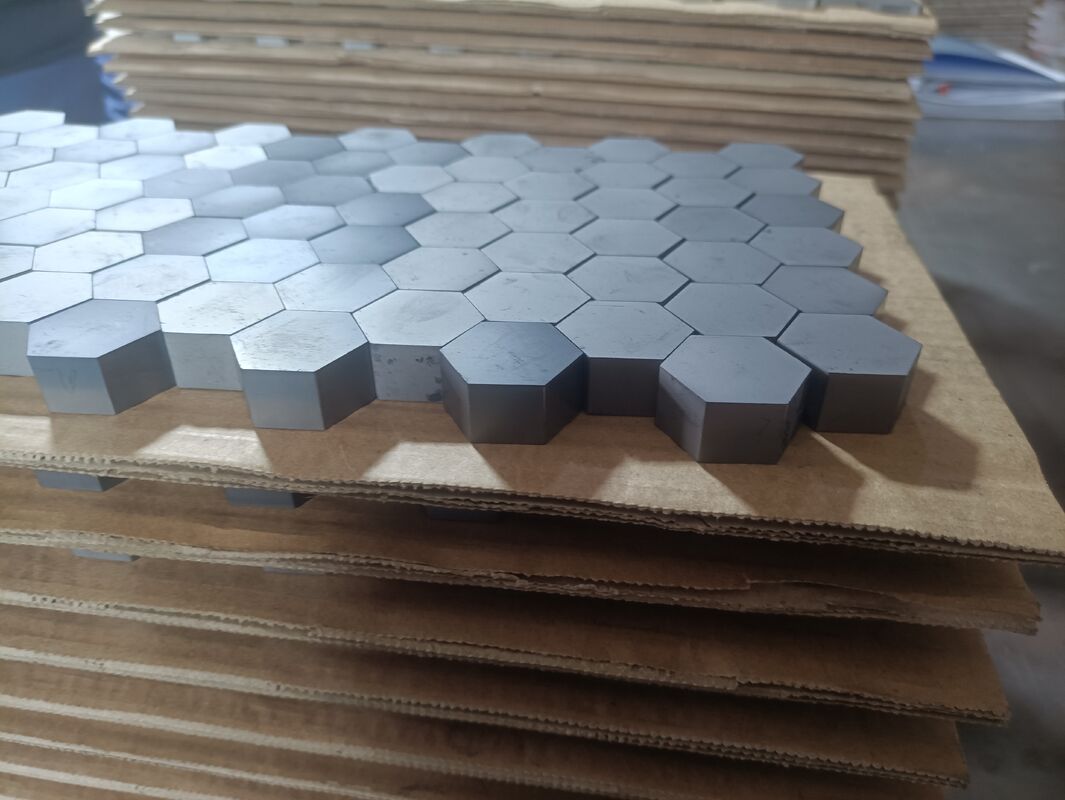

| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- 100x100mm squares maximize coverage per tile for fast panel production
- 12mm section suits higher threat level protection
- Combine with 50x50mm squares around panel edges and curves
