Pressureless Sintered Silicon Carbide Hexagonal SW40mm 8mm Thickness Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HX-40-08 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Thickness: | 8mm (custom 2mm-100mm) | Density: | ≥3.10 G/cm3 |
|---|---|---|---|
| Flexural Strength: | ≥400 MPa | SiC Purity: | ≥99.0% |
| Compressive Strength: | ≥2500 MPa | Hardness: | ≥2600 HV (Vickers) |
| Highlight: | SW40mm Hexagon SiC Tile,8mm Thick Ballistic Ceramic,Hexagonal Tessellation Armor Tile |
||
Product Description

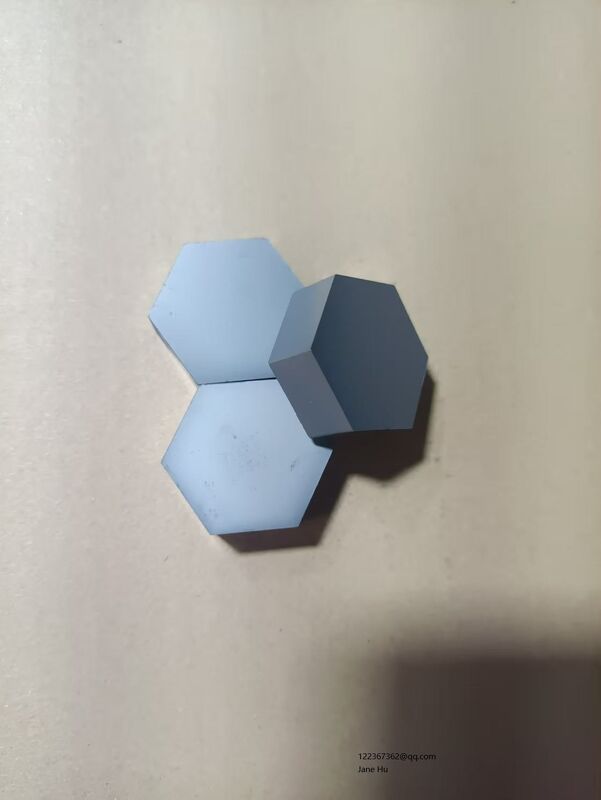

Pressureless Sintered Silicon Carbide Hexagonal Ceramic Tile SW40x8mm Ballistic Armor Plate
SW40mm hexagonal silicon carbide ceramic tile in 8mm thickness for ballistic armor plates. Pressureless sintered SiC with ≥2600 HV hardness gives a balanced armor ceramic solution with excellent multi-hit behavior in tessellated mosaic layups.
Key Features
- Pressureless sintered silicon carbide (SiC), hexagonal SW40mm format
- 8mm standard thickness, custom thickness 2mm to 100mm available
- SiC purity ≥99.0% with dense uniform microstructure

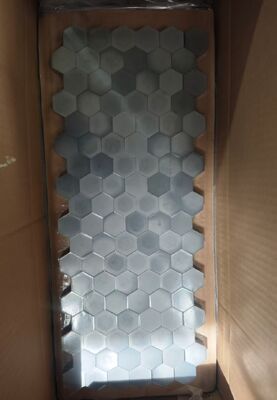

- Hexagonal tessellation eliminates continuous straight joints
- Suitable for curved and flat protection panel assembly
- OEM customization for size, thickness and surface finish
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Hexagonal, SW40mm (40mm across flats) |
| Thickness | 8mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |
| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm ★ | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- Choose SW40mm hex tiles for a balance of assembly speed and contour adaptability.
- Tiles 8mm thick suit standard protection panels; thicker options upgrade threat resistance.
- Hexagonal tessellation improves multi-hit capability versus straight-edge squares.
