Hexagonal Silicon Carbide Ceramic Tile Pressureless Sintered Ballistic Armor Plate with Custom Thickness 2mm-100mm in SW20-SW80mm Sizes
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HX-SERIES |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Compressive Strength: | ≥2500 MPa | Thickness: | Custom 2mm-100mm |
|---|---|---|---|
| Density: | ≥3.10 G/cm3 | Flexural Strength: | ≥400 MPa |
| SiC Purity: | ≥99.0% | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | Hexagon SiC Tile Series,SW20 to SW80 Sizes,Tessellated Ballistic Ceramic Set |
||
Product Description
Hexagonal Silicon Carbide Ceramic Tile Series SW20 SW30 SW40 SW60 SW80 Pressureless Sintered Ballistic Armor Plate

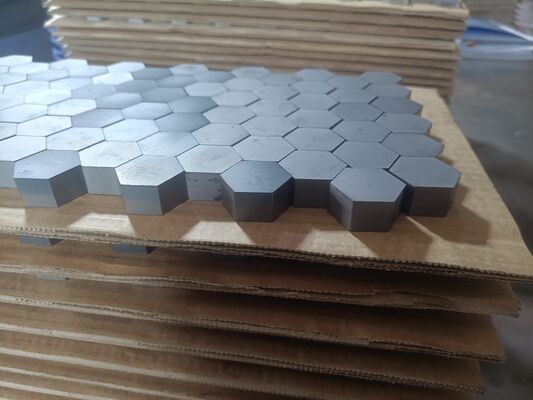

Complete hexagonal silicon carbide ceramic tile series covering SW20mm, SW30mm, SW40mm, SW60mm and SW80mm for tessellated ballistic armor plates. Every hex format shares the same pressureless sintered SiC base so mosaic panels can mix sizes freely for curved or flat protection geometry.
Key Features
- Pressureless sintered silicon carbide (SiC) hexagonal tile series
- Five hex sizes: SW20, SW30, SW40, SW60, SW80mm
- Custom thickness 2mm to 100mm for every size
- SiC purity ≥99.0% with dense uniform microstructure
- Tessellated mosaic layout without continuous straight gaps
- Mixed-size mosaics for curved and flat panels
- OEM customization available
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Hexagonal SW20 / SW30 / SW40 / SW60 / SW80mm |
| Thickness | Custom 2mm-100mm |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |
| Hex SW20mm ★ | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- SW20mm: smallest module, maximum flexibility for curved panels
- SW30mm: balanced size for standard mosaic layup
- SW40mm: larger tile, good contour adaptability
- SW60mm: wide hex coverage for flat panels
- SW80mm: largest format, minimum joints for flat armor
