Pressureless Sintered Silicon Carbide Tile 50x50mm Square 2mm Ultra Thin Ballistic Protection Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-50-02 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Compressive Strength: | ≥2500 MPa | Thickness: | 2mm (custom 2mm-100mm) |
|---|---|---|---|
| Density: | ≥3.10 G/cm3 | Flexural Strength: | ≥400 MPa |
| SiC Purity: | ≥99.0% | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | 50x50x2mm SiC Square Tile,Ultra Thin Ballistic Ceramic,Lightweight Protection Tile |
||
Product Description
Pressureless Sintered Silicon Carbide Square Ceramic Tile 50x50x2mm Ultra Thin Ballistic Protection Plate
50x50mm ultra thin silicon carbide square ceramic tile in 2mm thickness for lightweight ballistic protection plates. At the thin end of the 2mm-100mm range, this tile enables minimum-weight protection builds while retaining the hardness of pressureless sintered SiC.
Key Features
- Pressureless sintered silicon carbide (SiC), square 50x50mm format
- Ultra thin 2mm section, custom 2mm to 100mm available
- SiC purity ≥99.0% with dense uniform microstructure
- Minimum added weight for lightweight protection systems
- Compact square module for fine damage containment
- OEM customization available
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square 50x50mm |
| Thickness | 2mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm ★ | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |

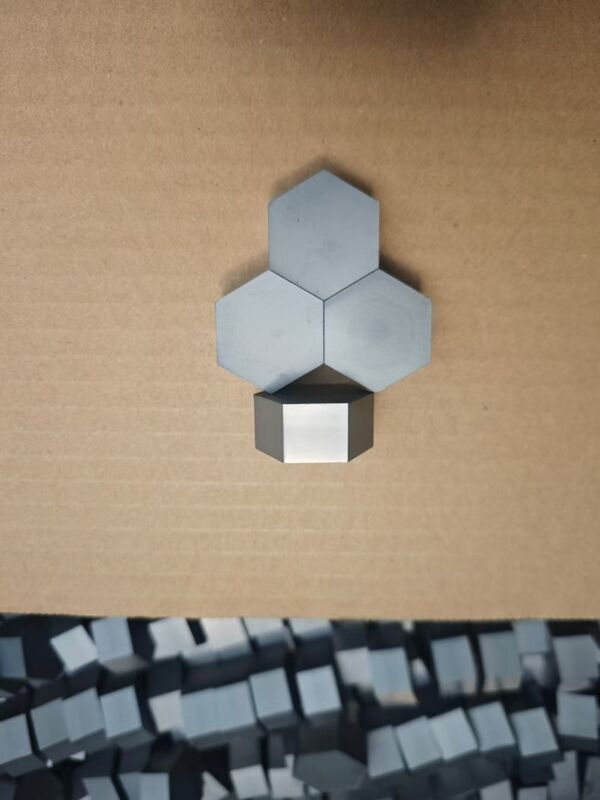

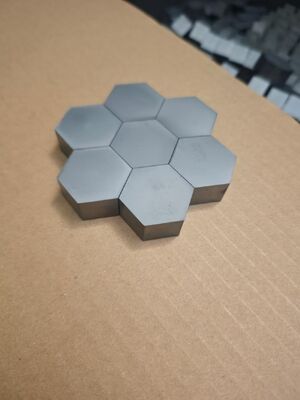

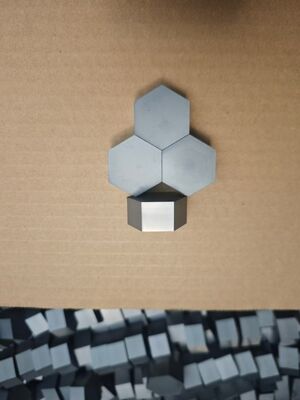

| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Material Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- 2mm ultra thin tiles are for protection builds where weight budget is extremely tight
- 50x50mm squares give fine damage containment and easy curved fitting
- Pair with thicker tiles in hybrid multi-layer protection panels
