Pressureless Sintered Silicon Carbide Ceramic Tile SW60mm Hexagonal 10mm Thickness Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-HX-60-10 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Compressive Strength: | ≥2500 MPa | Thickness: | 10mm (custom 2mm-100mm) |
|---|---|---|---|
| Density: | ≥3.10 G/cm3 | Flexural Strength: | ≥400 MPa |
| SiC Purity: | ≥99.0% | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | SW60mm Large Hex SiC Tile,10mm Heavy Ballistic Ceramic,Wide Hexagon Armor Plate |
||
Product Description

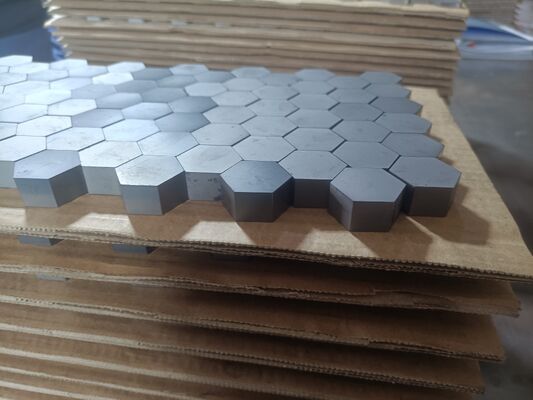

Pressureless Sintered Silicon Carbide Hexagonal Ceramic Tile SW60x10mm Heavy Duty Ballistic Armor Plate
SW60mm large hexagonal silicon carbide ceramic tile in 10mm heavy duty thickness for ballistic armor plates. The wide hex format reduces joint count and speeds up panel production while pressureless sintered SiC keeps hardness above 2600 HV.
Key Features
- Pressureless sintered silicon carbide (SiC), large hexagonal SW60mm format
- 10mm heavy duty thickness, custom 2mm to 100mm available
- SiC purity ≥99.0% with uniform dense microstructure
- Wide hex coverage means fewer joints and faster assembly
- Stable dimensions for tight edge-to-edge tessellation
- OEM customization available
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Hexagonal, SW60mm (60mm across flats) |
| Thickness | 10mm standard / 2mm-100mm custom |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm | Wide coverage, fewer joints, fast panel assembly |
| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm ★ | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- SW60mm hex is ideal for flat panels where wide coverage and fewer joints matter.
- 10mm heavy section handles higher threat levels than thin tiles.
- Combine with SW20-SW40 hex tiles when curved contours are required.
