Pressureless Sintered Silicon Carbide Tile 100x100mm Square Custom Thickness 2mm-100mm Ballistic Armor Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015 |
| Model Number: | SiC-SQ-100-CT |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.1-2 / Piece |
| Packaging Details: | Custom foam tray with individual cell packing, anti-static moisture-proof barrier, export-grade carton |
| Delivery Time: | 10-18 working days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000000 Pieces per Month |
|
Detail Information |
|||
| Thickness: | Custom 2mm-100mm | SiC Purity: | ≥99.0% |
|---|---|---|---|
| Density: | ≥3.10 G/cm3 | Flexural Strength: | ≥400 MPa |
| Compressive Strength: | ≥2500 MPa | Fracture Toughness: | 3.8-4.2 MPa.m1/2 |
| Highlight: | 100x100mm Custom SiC Tile,2mm to 100mm Thickness,Customized Ballistic Ceramic Plate |
||
Product Description
Pressureless Sintered Silicon Carbide Square Ceramic Tile 100x100mm Custom Thickness 2mm to 100mm Ballistic Armor Plate
Pressureless Sintered Silicon Carbide Square Ceramic Tile 100x100mm Custom Thickness 2mm to 100mm Ballistic Armor Plate. 100x100mm silicon carbide square ceramic tile available in any custom thickness from 2mm to 100mm for ballistic armor plates. One flexible square format covers the whole thickness spectrum, letting protection engineers tune weight and threat resistance without changing tile footprint.
Key Features
- Pressureless sintered silicon carbide (SiC), square 100x100mm format
- Full custom thickness range 2mm to 100mm
- SiC purity ≥99.0% with dense uniform microstructure
- One footprint for the entire thickness spectrum
- Simplify panel design and inventory management
- OEM customization for chamfer, edge and surface finish
Technical Specifications
| Property | Value |
|---|---|
| Material | Pressureless Sintered Silicon Carbide (SiC) |
| Shape | Square 100x100mm |
| Thickness | Custom 2mm-100mm (any value in range) |
| Hardness | ≥2600 HV (Vickers) |
| Density | ≥3.10 g/cm³ |
| Flexural Strength | ≥400 MPa |
| Compressive Strength | ≥2500 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² |
| SiC Purity | ≥99.0% |
Available Sizes (Custom Thickness 2mm to 100mm)
| Shape / Size | Typical Advantage |
|---|---|
| Square 50x50mm | Compact module, curved panel fitting, fine damage containment |
| Square 100x100mm ★ | Wide coverage, fewer joints, fast panel assembly |

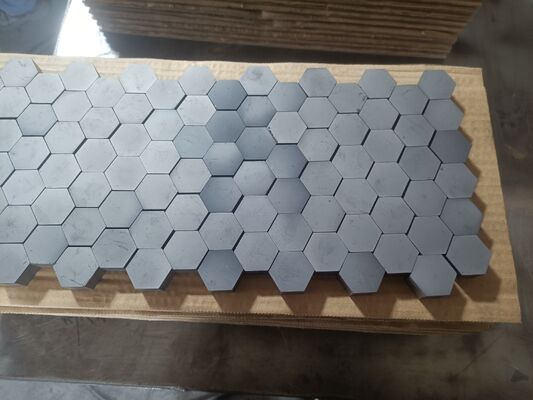

| Hex SW20mm | Smallest hex module, maximum mosaic flexibility |
| Hex SW30mm | Balanced hex size for standard mosaic layup |
| Hex SW40mm | Larger hex tile, faster assembly, good contour adaptability |
| Hex SW60mm | Big hex coverage for flat protection panels |
| Hex SW80mm | Largest hex format, minimum joints for flat armor |
SiC vs B4C Selling Point Comparison
| Property | SiC (Silicon Carbide) | B4C (Boron Carbide) |
|---|---|---|
| Areal Density (Weight) | ≥3.10 g/cm³ · Heavier | ≥2.48 g/cm³ · Lightest |
| Hardness | ≥2600 HV | ≥3000 HV |
| Flexural Strength | ≥400 MPa | ≥350 MPa |
| Fracture Toughness | 3.8-4.2 MPa·m¹/² | 2.5-3.0 MPa·m¹/² |
| Multi-Hit Performance | Excellent (tessellated mosaic) | Good |
| Cost Efficiency | Medium · Best value | High · Premium |
| Best Choice For | Balanced protection and budget | Lightest weight requirement |
Selection Guide
- Specify any thickness between 2mm and 100mm for your protection level
- Thin 2-4mm tiles for lightweight builds; thick 13-100mm for heavy duty armor
- 100x100mm footprint keeps panel layout consistent across all thicknesses
Jane Hu
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road, Changsha, China 410100
Mobile/Whatsapp: +86-139-7515-2932
Wechat: 139-7515-2932
Skype: jane.hu261
QQ: 122367362
Email: janehu@hbnewmaterial.com
Contact us to discuss your specific protection requirements and receive a tailored quotation.
