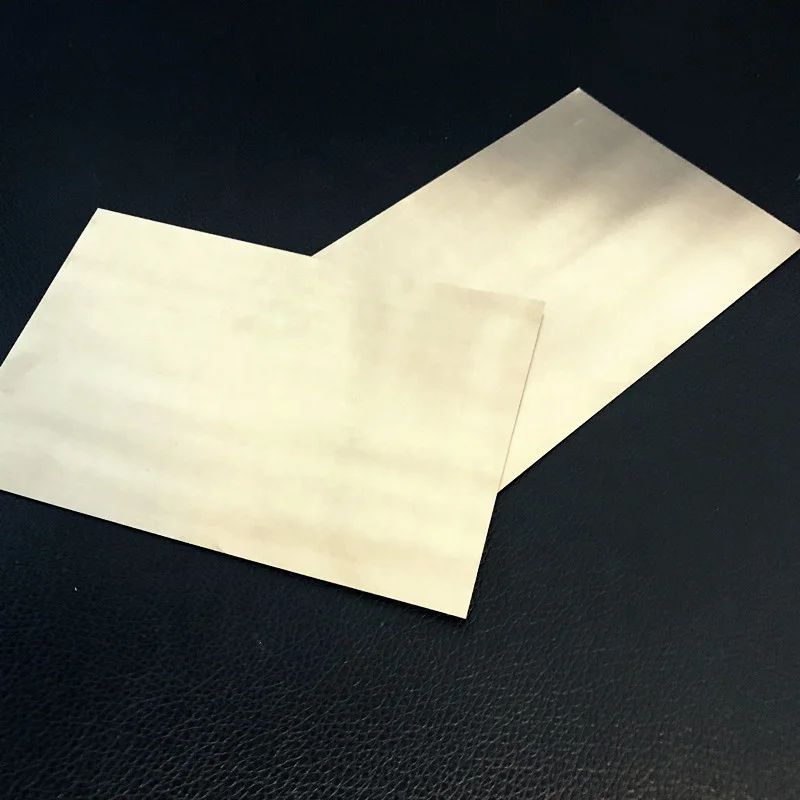

AZ91D Magnesium Alloy Plate High Damping Humanoid Robot Joint Housing 200x150x8mm
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad/OEM |
| Certification: | ISO 9001:2015, ASTM B90/B94 |
| Model Number: | AZ91D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Kilograms |
|---|---|
| Price: | USD 6-15 / Kilogram |
| Packaging Details: | Wooden case with anti-moisture film and edge protection, sea-worthy export packing |
| Delivery Time: | 7-15 working days after deposit |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 200 Tons per Month |
|
Detail Information |
|||
| Grade: | AZ91D | Thickness: | 8 Mm |
|---|---|---|---|
| Width: | 150 Mm | Length: | 200 Mm |
| Density: | 1.81 G/cm3 | Tensile Strength: | 230-250 MPa |
| Yield Strength: | 150-170 MPa | Elongation: | 3-5% |
| Thermal Conductivity: | 51 W/m.K | Damping: | High |
| Surface: | Machined, Chromate Optional | Application: | Humanoid Robot Joint Housing |
| Highlight: | AZ91D magnesium alloy robot joint plate,high damping magnesium alloy plate,200x150x8mm magnesium alloy housing |
||
Product Description
AZ91D Magnesium Alloy Plate for Humanoid Robot Joint Housings
AZ91D is the most widely used die-cast magnesium alloy and delivers exceptionally high vibration damping capacity. As a plate it is machined into humanoid robot joint housings, absorbing impact energy and suppressing resonance while keeping the joint structure lightweight.
Key Features
- Outstanding damping capacity up to 20 times that of aluminium
- High mechanical stability and dimensional accuracy after machining
- Good corrosion resistance in indoor service environments
- Excellent castability and machinability for complex housings
- Non-magnetic, suitable around servo motors and sensors
Robotics & Drone Applications
- Humanoid robot joint and actuator housings
- Robotic knee, elbow and shoulder structural blocks
- Servo and gearbox mounting plates
- Vibration-sensitive sensor platforms
Technical Specifications
| Grade | AZ91D |
| Thickness | 8 mm |
| Width | 150 mm |
| Length | 200 mm |
| Density | 1.81 g/cm3 |
| Tensile Strength | 230-250 MPa |
| Yield Strength | 150-170 MPa |
| Elongation | 3-5% |
| Thermal Conductivity | 51 W/m.K |
| Damping | High |
| Surface | Machined, chromate optional |
| Application | Humanoid robot joint housing |
Why Magnesium Alloy
- Damping reduces joint shock and improves motion precision
- Low density lowers actuator load and extends battery life
- Stable dimensions keep alignment over long service life
Request AZ91D damping magnesium plates for your humanoid robot project and get a same-day quotation.
