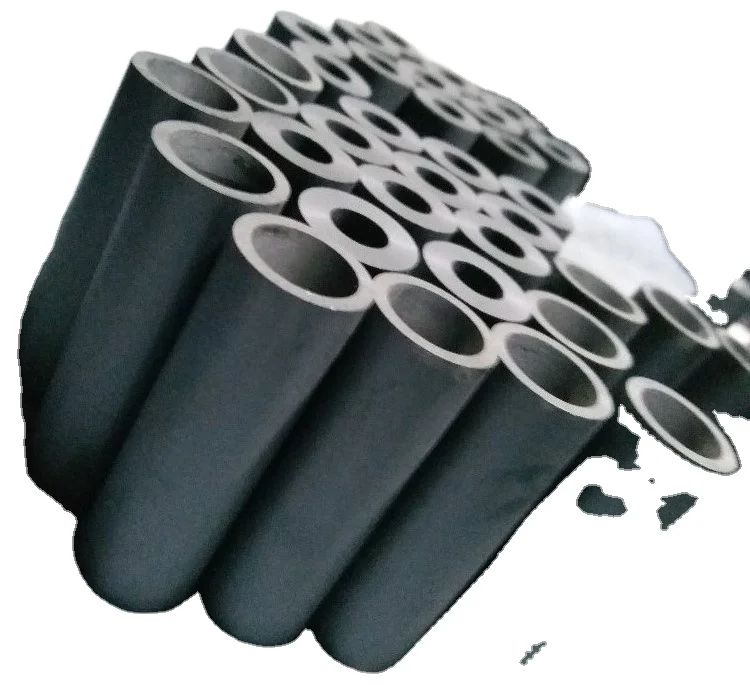

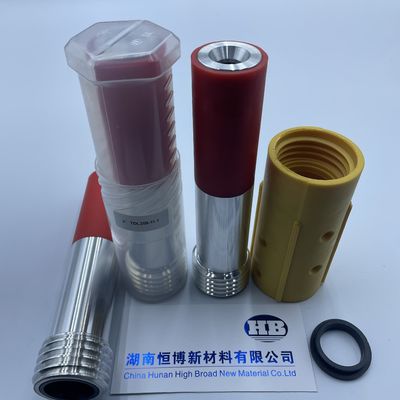

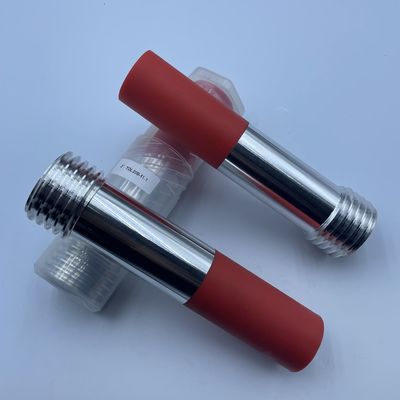

Tungsten Carbide Core Sandblasting Nozzle Insert with 6.5mm Bore and 800-1000 Hours Service Life for Blast Gun Barrel
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015 |
| Model Number: | SBN-IN-065 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 5-10 / Piece |
| Packaging Details: | Color box with shock-proof foam insert, export-grade corrugated carton |
| Delivery Time: | 3 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Material: | Tungsten Carbide Core | Bending Strength: | > 400 MPa |
|---|---|---|---|
| Overall Length: | 45mm | Bore Diameter: | 6.5mm |
| Outer Diameter: | 22mm | Hardness: | HRA 88-92 (Mohs 9.3) |
| Highlight: | Sandblasting Nozzle Insert,6.5mm Carbide Replacement Core,Blast Gun Barrel Insert |
||
Product Description
Sandblasting Nozzle Insert 6.5mm Bore Carbide Core Replacement for Blast Gun Barrel
Product Overview
Sandblasting Nozzle Insert 6.5mm Bore Carbide Core Replacement for Blast Gun Barrel (SBN-IN-065)
This sandblasting nozzle insert is a carbide core replacement for blast gun barrels, restoring powerful blasting without replacing the whole tool. Engineered for a precise, secure fit and long operating life.
Key Features
- Drop-in carbide core replacement for blast gun barrels
- Precision ground 6.5mm bore for consistent flow
- Fast replacement with minimal downtime
- Lower cost than replacing a complete nozzle
- Long wear life under continuous blasting
Technical Specifications
| Model Number | SBN-IN-065 |
| Material | Tungsten Carbide Core |
| Hardness | HRA 88-92 (Mohs 9.3) |
| Density | 2.48 g/cm³ |
| Bending Strength | > 400 MPa |
| Bore Diameter | 6.5mm |
| Overall Length | 45mm |
| Outer Diameter | 22mm |
| Connection | Insert, fits standard blast gun barrel |
| Max Working Temperature | 1200°C |
| Service Life | 800-1000 hours |
| MOQ | 10 pieces |
Material Comparison
| Property | Boron Carbide B4C | Tungsten Carbide | Silicon Carbide | Alumina Ceramic |
|---|---|---|---|---|
| Hardness (Mohs) | 9.3 | 9.0 | 9.2 | 8.5 |
| Density (g/cm³) | 2.48 | 14.8 | 3.12 | 3.60 |
| Relative Service Life | 5.0x | 3.5x | 2.5x | 1.0x |
| Max Working Temp (°C) | 1200 | 1000 | 1400 | 1500 |
| Best Application | Heavy duty blasting | General blasting | Medium duty | Light duty |
Selling Point Comparison
| Criterion | Nozzle Insert | Full Nozzle Replacement |
|---|---|---|
| Replacement Cost | Low (insert only) | High (whole nozzle) |
| Downtime | Under 2 minutes | 10-15 minutes |
| Compatibility | Fits most blast guns | Gun specific |
Application Scenarios
| Application | Description |
|---|---|
| Barrel refurbishment | Restore worn blast gun barrels |
| Spare parts stock | Fast on site replacement |
| General blasting | Daily abrasive blasting tasks |
| Cost control | Reduce consumable spend |
Why Choose Our Nozzle
- Factory direct pricing with stable bulk supply
- Strict dimensional inspection on every nozzle
- OEM and custom bore sizes available
- Fast lead time for both stock and production orders
