Galvanic Magnesium Sacrificial Anode
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad |
| Certification: | ISO, DNV,GB 4948 , ASTM Sacrificial Magnesium Anodes |
| Model Number: | C/D/S shape Mg anode , Prepackaged Magensium Anode for cathodic protection |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | On pallet with steel bundles |
| Delivery Time: | 1 FCL:14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 300 Metric Ton/Metric Tons per Month |
|
Detail Information |
|||
| Name: | HP Magnesium Anode For Cathodic Protection | Model Number: | ASTM AZ63 / MgMn Magnesium Anode |
|---|---|---|---|
| Cathodic Protection: | Anti-Corrosion,Offshore Project, Bridge,anti Corrosion | ASTM , ISO, DNV: | High Potention Sacrificial Cast Magnesium Anodes |
| Product Technology: | Casting,Extrusion,CNC Machining Magnesium Anode | Category: | Sacrificial S Type Magnesium Anode For Corrosion Control |
| Advantage: | AZ63/MgMn High Potention Mg Anode | C Type Cast Magnesium Anodes: | Corrosion Control C Type Magnesium Alloy Sacrificial Anode |
| Magnesium Anode: | Magnesium Soil Anode For Cathodic Protection | ||
| Highlight: | sacrificial anode protection,mg anode |
||
Product Description
ASTM High potention Magnesium Anodes D Type

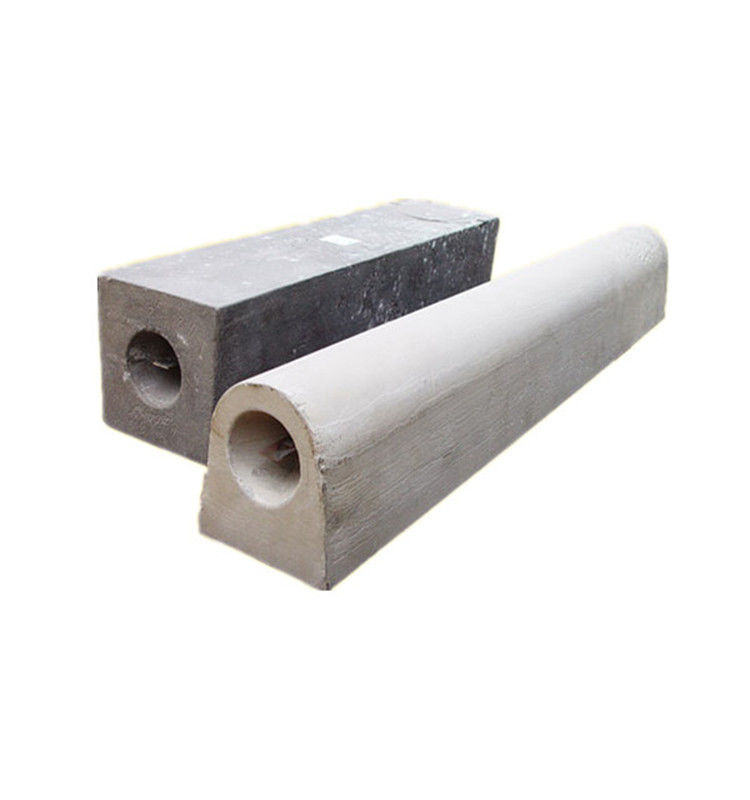

D type cast magnesium anodes
High Broad Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protectionof such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
Specifications:
Composition:
HighBroad's magnesium anodes conform in composition to the requirements of U.S. Government Specification MIL-A-21412A (Ships). This 6% aluminum, 3% zinc alloy (AZ-63) usually provides the best combination of economy and operating characteristics in seawater or brackish water.
Chemical Composition
|
Type |
Alloy Element |
lmpurity Elements(Max) |
||||||||
|
Al |
Zn |
Mn |
Mg |
Fe |
Cu |
Ni |
Si |
Other |
||
|
Each |
Total |
|||||||||
|
MGAZ63B |
5.3-6.7 |
2.5-3.5 |
0.15-0.60 |
Balance |
0.003 |
0.01 |
0.001 |
0.08 |
_ |
0.30 |
|
MGAZ31B |
2.7-3.5 |
0.6-1.4 |
0.2-1.0 |
Balance |
0.003 |
0.01 |
0.001 |
0.08 |
0.05 |
0.30 |
|
MGM1C |
<0.01 |
_ |
0.5-1.3 |
Balance |
0.01 |
0.01 |
0.001 |
0.05 |
0.05 |
0.30 |
Electrochemical Performance
|
Type |
Open-Circuit -V(vs Cu/CuSO4) |
Current Efficiency %(vs Cu/CuSO4) |
Generating Current (A.h)/kg(vs Cu/CuSO4) |
|
MGAZ63B |
1.57-1.67 |
>=55 |
>= 1210 |
|
MGAZ31B |
1.57-1.67 |
>= 55 |
>= 1210 |
|
MGM1C |
1.77-1.82 |
>= 50 |
>= 1100 |
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
High potention sacrificial cast magnesium anodes
