High Potential Extruded Magnesium Ribbon Anode for Cathodic Protection Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad/OEM |
| Certification: | ASTM G-97, ISO, DNV |
| Model Number: | High Potential Magnesium Ribbon |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1kg for Magnesium Ribbon,High Potential Extruded Magnesium Ribbon Anode for Cathodic Protection (CP) systems |
|---|---|
| Price: | negotiable |
| Packaging Details: | On pallet with steel bundles for magensium Ribbon |
| Delivery Time: | 1days for 10tons |
| Payment Terms: | D/P,L/C,T/T,Western Union,MoneyGram,Paypal etc |
| Supply Ability: | 300mt per month |
|
Detail Information |
|||
| Size: | 9.5*19mm | Chemical Composition: | Mg-Mn, Mg, AZ31 |
|---|---|---|---|
| Diameter Size: | 4mm Or 6mm | Yield Strength: | 260-274 MPa |
| Tensile Strength: | 280-300 MPa | Elongation: | 8.5-21.5% |
| Highlight: | sacrificial anode protection,mg anode |
||
Product Description

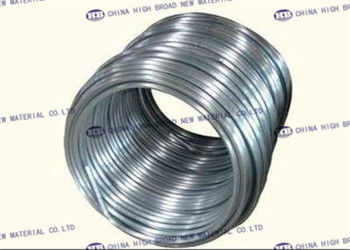

Magnesium sacrificial ribbon anode is a flexible anode material designed for use in high resistivity water or soil environments. Due to the ribbon's greater surface area to weight ratio, magnesium ribbon can provide higher current outputs when compared to other magnesium anodes.
| Designation | Al | Zn | Mn | Fe | Ni | Cu | Si | Mg |
|---|---|---|---|---|---|---|---|---|
| Mg-Mn | <0.010 | - | 0.5-1.30 | <0.03 | <0.001 | <0.02 | - | balance |
| Mg | <0.010 | <0.010 | <0.030 | <0.002 | <0.001 | <0.001 | <0.010 | >99.95 |
| AZ31 | 5.30-6.70 | 0.7-1.3 | 0.20 max | 0.005 max | 0.01 max | 0.001 max | 0.05 max |
Magnesium anode is characterized by small density, large theoretical electric capacity, low negative polarization rate, and large driving voltage for iron and steel (> 0.6 V). Magnesium sacrificial anode is suitable for protecting metal components in soil and water environments with higher electrical resistivity.
Our magnesium anode is primarily used for corrosion protection of:

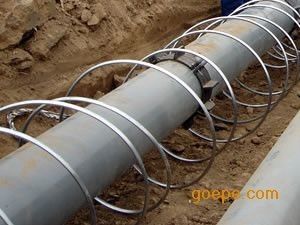

- Buried pipelines
- Onshore platforms
- Large boilers
- Steel structures
- Printing plates with etching/stamping
- 3C auto parts and battery shells
- Decorative sheet construction
- Security industry applications
- Battery anodes for seawater
- Instrument and meter shells
Custom manufacturing available: We can produce anodes according to your specific drawings and requirements.
| Name | Magnesium Ribbon |
|---|---|
| Grade | CHEMICAL COMPOSITION (%) |
| Impurity, ≤ | Total Impurity |
| Mg 99.95 | 99.95 |
| Fe | 0.004 |
| Si | 0.01 |
| Ni | 0.001 |
| Cu | 0.002 |
| Al | 0.01 |
| Cl | 0.003 |
| Mn | 0.01 |
| Remark | Diameter Size: 4mm or 6mm Delivery: prompt shipment Packing: ON MAGNESIUM PALLET OR WOODEN PALLET |
| Material Status | Tensile Direction | Yield Strength (MPa) | Tensile (MPa) | Elongation % |
|---|---|---|---|---|
| Hot-rolled state | Rolling direction | 260 | 280 | 9.5 |
| Hot-rolled state | Horizontal | 274 | 300 | 8.5 |
| Annealed | Rolling direction | 198 | 254 | 20 |
| Annealed | Horizontal | 186 | 250 | 21.5 |
- Corrosion protection magnesium anode
- Protect water heaters and water containers of steel structure
- Protect gas pipelines in-home service polarization high resistance electrolytes (soil and water in the steel structure)
