Hot Rolled Mg Magnesium Alloy Sheets , AZ31B AZ91 Pure Magnesium Alloy Plate For Salt Water Fuel Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO |
| Model Number: | AZ31B,AZ91D,ZK60,WE43 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | In carton, on pallet |
| Delivery Time: | 100 kgs: 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100mt/month |
|
Detail Information |
|||
| Product Name: | Magnesium Alloy Plate For Salt Water Cell | Other Name: | Magnesium Alloy Plate |
|---|---|---|---|
| Material: | Magnesium Alloy Pure Magnesium | Application: | CNC Engraving,Embossing,Etching,Stamping |
| Type: | Hot Roll, Extruded, Cast | Surface: | Without Coating |
| Industrial: | Computer,Printing,Camera,Cellphone | ||
| Highlight: | metal sheet plate,magnesium etching plate |
||
Product Description

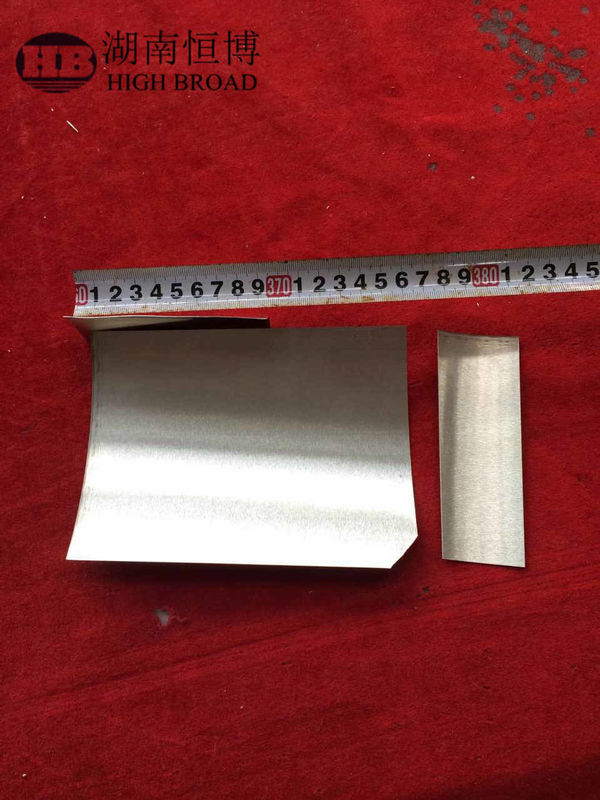

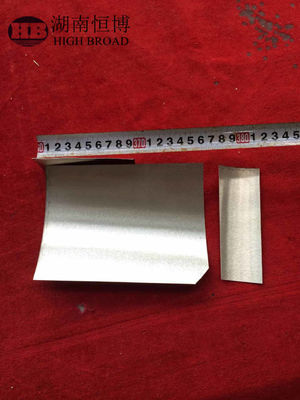

Magnesium plate AZ31/ Magnesium sheet AZ91 / Pure magnesium plate
Hot Rolled Mg Magnesium Alloy Sheet , AZ31B AZ91 Pure Magnesium alloy plate for salt water cell
Specifications:
Type : AZ31B , AZ91 , Mg 99.95% min.
Sheet Size Range:
Thickness : 0.3mm , 0.5 mm, 0.7mm, 1.0mm, 1.5mm , 1.75mm , 2mm
Width x Length: can be anysize.
MECHANICAL PROPERTIES
| Alloy and Temper | Thickness (mm) |
Yield Strength 0.2% offset (MPa) |
Tensile strength (MPa) |
Elongation In 5.65 √A (%) |
| AZ31B O | 0.5 – 1.5 | 125 | 221 | 10 |
| 1.5 – 6.3 | 105 | 221 | 9 | |
| 6.3 - 75 | 105 | 221 | 8 | |
| AZ31B H24 | 0.5 – 6.3 | 200 | 269 | 5 |
| 6.3 -9.5 | 179 | 262 | 7 | |
| 9.5 – 12.7 | 165 | 255 | 8 | |
| 12.7 - 25 | 152 | 248 | 8 | |
| 25- 50 | 138 | 234 | 6 | |
| 50 - 80 | 124 | 234 | 7 | |
| AZ31B H26 | 6.3 - 10 | 186 | 269 | 6 |
| 10 – 12.5 | 179 | 262 | 6 | |
| 12.5 - 20 | 172 | 255 | 5 | |
| 20 – 25 | 159 | 255 | 5 | |
| 25 - 40 | 152 | 241 | 5 | |
| 40 - 50 | 148 | 241 |
5 |
Chemical :
Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance
PHYSICAL PROPERTIES:
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
Applications:
Magnesium Sheet / plate in AZ31B find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C products (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.
AZ31B is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.
Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.
