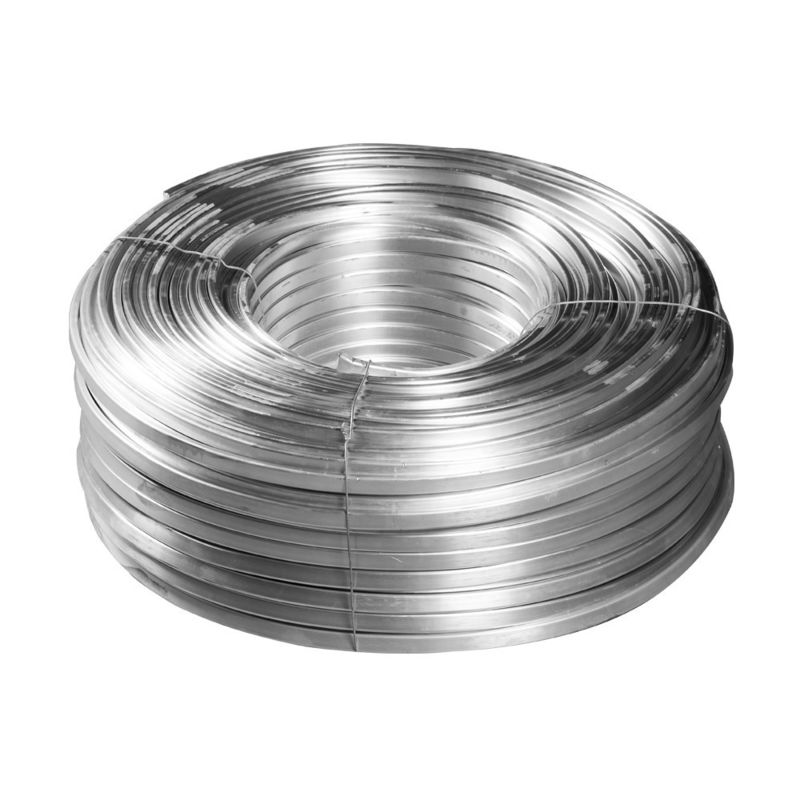

High Potential Magnesium Anodes With Standard Ribbon Core
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HIGH BROAD |
| Certification: | ISO |
| Model Number: | High Potential HP Magnesium Ribbon anode |
Payment & Shipping Terms:
| Minimum Order Quantity: | 305 Meter |
|---|---|
| Price: | TBA |
| Packaging Details: | Independed wooden reel packing for easy transportation and unfolding in field |
| Delivery Time: | 1 FCL: 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000mt /Year |
|
Detail Information |
|||
| Material: | Magnesium Ribbon Anode | Standard: | ASTM B843-M1C |
|---|---|---|---|
| Feature: | Superior Flexibility For Easy Installation | Package: | Independed Wooden Reel Packing For Easy Transportation And Unfolding In Field |
| High Light: | ASTM B843-M1C Magnesium Anodes,Magnesium Ribbon Anodes,Standard Ribbon Core Magnesium Anodes |
||
Product Description
Magnesium Ribbon Anode
| Chemical compositions of magnesium ribbon anodes (%) | |
| Element | High potential |
| Al | <0.01 |
| Zn | --- |
| Mn | 0.5-1.30 |
| Si (max) | 0.05 |
| Cu (max) | 0.02 |
| Ni (max) | 0.001 |
| Fe (max) | 0.03 |
| Others each | 0.05 |
| Others total | 0.30 |
| Mg | Balance |
| Electrochemical Properties magnesium ribbon anodes | ||||
| Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) | |
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ |
Feature:
1. High density metal structure
2. Uniform structure for efficient current distribution
3. Perfect core eccentricity ensuring the uniform consumption
4. Superior flexibility for easy installation
5. Independed wooden reel packing for easy transportation and unfolding in field

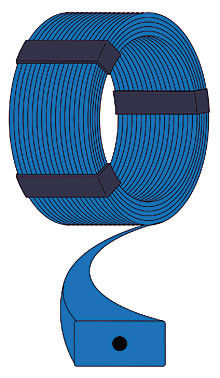

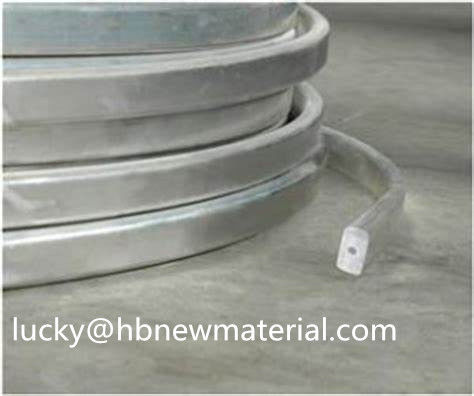

Magnesium ribbon anode consists of extrusion of magnesium around a central galvanized steel core.
