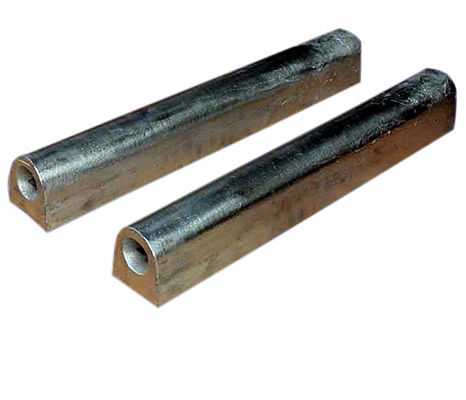

High Potention Cast Magnesium Anodes For Cathodic Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HIGH BROAD |
| Certification: | ISO |
| Model Number: | Cast mg anode |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | TBA |
| Packaging Details: | Magnesium anodes on pallet with steel bundles |
| Delivery Time: | 1 FCL: 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000MT/Year |
|
Detail Information |
|||
| Material: | Cast Magnesium Anodes | Type: | D Shape |
|---|---|---|---|
| Hot Size 1: | 32D5 | Hot Size 2: | 17D3 |
| Standard: | ASTM B843 | ||
| High Light: | High Potention Cast Magnesium Anodes,Cathodic Protection Cast Magnesium Anodes,D Shaped Zinc Anode |
||
Product Description
Sacrificial Anode
HB Anodes has two foundries with a joint capacity of 5,000 tons per year, producing either cast or extruded magnesium anodes in a variety of sizes and shapes to meet our customers’ requirements.
HB Anodes casts all magnesium anodes strictly confirm to ASTM Stardards to make sure the high potential magnesium anodes exceed 50% efficiency.
|
Anode Model
|
ASTM B843-M1C
|
ASTM B843-AZ63B
|
|
Open Circuit Potential (-V)
|
1.70-1.75
|
1.50-1.55
|
|
Close Circuit Potential (-V)
|
1.58-1.62
|
1.45-1.50
|
|
Current Capacity
|
500A.h/lbs(1100A.h/kg)
|
550A.h/lbs(1230A.h/kg) |
|
Current efficiency
|
50%
|
55%
|
|
Reference Electrode
|
saturated calomel reference
|
saturated calomel reference
|
Dimensions
|
C Type
|
Type |
Diameter (mm) |
Weight | High Potential L(mm) | AZ63 anode L(mm) |
| C25 | 75 | 2.56 | 336 | 325 | |
| C36 | 114 | 3.70 | 202 | 193 | |
| C41 | 114 | 4.20 | 230 | 220 | |
| C77 | 110 | 7.80 | 431 | 412 | |
| C100 | 110 | 10.20 | 560 | 536 | |
| C145 | 146 | 14.70 | 494 | 472 | |
| C227 | 178 | 22.90 | 520 | 497 | |
| C274 | 114 | 28.20 | 1528 | 1462 |
|
D Type
|
Type | Weight(Kg) | Specification | ||
| W(mm) | H(mm) | L(mm) | |||
| 9D2 | 4.082 | 69.90 | 76.20 | 549.30 | |
| 14D2 | 6.350 | 69.90 | 76.20 | 850.90 | |
| 20D2 | 9.072 | 69.90 | 76.20 | 1212.90 | |
| 9D3 | 4.082 | 88.90 | 95.30 | 352.40 | |
| 17D3 | 7.711 | 88.90 | 95.30 | 641.40 | |
| 32D5 | 14.515 | 139.70 | 146.10 | 504.80 | |
| 48D5 | 21.772 | 139.70 | 146.10 | 765.20 | |
| 1.5kg | 1.50 | 80.00 | 70.00 | 190.00 | |
| 2.5kg | 2.50 | 80.00 | 70.00 | 300.00 | |
|
S Type
|
Type | Weight | Specification | ||
| W(mm) | H(mm) | L(mm) | |||
| 3S3 | 1.4 | 76.20 | 76.20 | 114.30 | |
| 5S3 | 2.5 | 76.20 | 76.20 | 190.50 | |
| 9S2 | 4.1 | 50.80 | 50.80 | 685.80 | |
| 9S3 | 4.1 | 76.20 | 76.20 | 342.90 | |
| 17S2 | 7.7 | 50.80 | 50.80 | 1295.40 | |
| 17S3 | 7.7 | 76.20 | 76.20 | 647.70 | |
| 20S2 | 9.1 | 50.80 | 50.80 | 1524.00 | |
| 32S3 | 14.5 | 76.20 | 76.20 | 1143.00 | |
| 32S5 | 14.5 | 127.00 | 127.00 | 533.40 | |
| 40S3 | 18.1 | 76.20 | 76.00 | 1524.00 | |
| 48S5 | 21.8 | 127.00 | 127.00 | 787.40 | |
| 60S4 | 27.2 | 101.60 | 127.00 | 1524.00 | |
