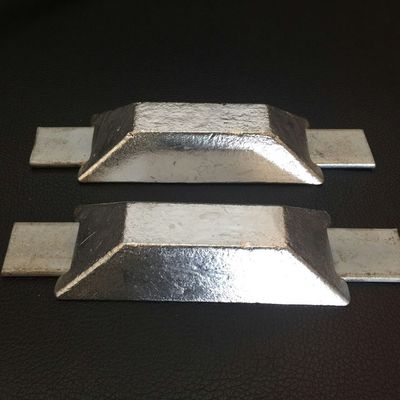

Bracelet Aluminum Sacrificial Anodes For Subsea Steel Pipeline DNV Approved

Bracelet Aluminum Sacrificial Anodes For Subsea Steel Pipeline DNV Approved

Product Details:

Place of Origin: China
Brand Name: HB
Certification: ISO, DNV,BV
Model Number: GAIII

Payment & Shipping Terms:

Minimum Order Quantity: 10 kgs
Price: negotiable
Packaging Details: in case on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300mt/month
Get Best Price Contact Now

Detail Information

Usage: Anti Corrosion Product Technology: SUBSEA STEEL PIPES
Grade: Industrial Grade Surface: Shine
High Light:

Bracelet Aluminum Sacrificial Anodes

,

DNV Aluminum Sacrificial Anode

,

Pipeline Aluminum Sacrificial Anode

Product Description

Bracelet Aluminum Sacrificial Anode For Subsea Steel Pipeline And Pile Protection GALVALUM III Standard





Aluminum anodes are used particularly within marine cathodic protection against corrosion in chlorinated environment. The Application fields that are used effectively are sea platforms, ship hulls, storage tanks inside, underwater pipes, piers, crude oil storage tanks with chlorine ionsin the inner surfaces of structures exposed to corrosion The chemical composition of the aluminum plate is the most important factor on anode performance. Aluminum anodes are available with different compositions. Aluminum is the most commonly used anode with indium added alloy . By adding indium passive layer on the anode surface is dissolving, the active indium means continuously provides the back surface to serve as the anode. PRO-TEK is able to manufacture and supply Al-In-Zn alloy anode in various sizes and shapes according to customer's needs,





Chemical Composition Analysis (%)

Type Zn In Cd Sn Mg Si Ti Impurity ,less than Al
Si Fe Cu

Al-Zn-In-Cd

A11

2.5-4.5 0.018-0.050 0.005-0.020 - - -- - 0.10 0.15 0.01 Balance

Al-Zn-In-Sn

A12

2.2-5.2 0.020-0.045 - 0.018-0.035 - - - 0.10 0.15 0.01 Balance

Al-Zn-In-Si

A13

5.5-7.0 0.025-0.035 - - - 0.10-0.15 - 0.10 0.15 0.01 Balance

Al-Zn-In-Sn-Mg

A14

2.5-4.0 0.020-0.050 - 0.025-0.075 0.50-1.00 - - 0.10 0.15 0.01 Balance

Al-Zn-In-Mg-Ti

A21

4.0-7.0 0.02-0.050 - - 0.50-1.50 - 0.01-0.08 0.10 0.15 0.01 Balance











Electrochemical characteristics :

Item Material of anodes Open-circuit Voltage (v) Close-circuit Voltage (v) Actual Capacity(Ah/kg) Current efficiency (%) Consumption rate ( kg.(A.a)* Dissolve Performance
Electrochemical Performance Type 1 -1.18- -1.10 -1.12- -1.05 ≥2400 ≥85 ≤3.65 The surface dissolve evenly & oxide drop easily
Type 2 -1.18- -1.10 -1.12- -1.05 ≥2600 ≥90 ≤3.37

*Reference electrode: Saturated calomel electrode

Type 1: A11,A12,A13,A14

Type 2: A21



Aluminum galvanic anodes for piers and pilings are cast in one of two premium aluminum alloys, for optimal performance in any conditions. Anodes are manufactured in several standard sizes.

Core length comes standard depending on the size, and holes may be drilled for bolt-on applications at customer’s request.

In addition to these, we can cast anodes for piers, jetties, or any other piling and ballast to the exact specifications required. Please contact us for advice on optimizing an anode to suit your specific requirements.
