MMO Flexible Anode with ASTM B348 GRADE I/II Standard 52MA/M Current Output and 1X10MM2 PVC XLPE Cable for Impressed-Current Cathodic Protection
Product Details:
| Place of Origin: | Hunan, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $30-50 |
|
Detail Information |
|||
| Anode Type: | Flexible Polymeric Anode | MMO Wire: | MMO/Ti Coating |
|---|---|---|---|
| Current Output: | 52MA/M | Coating Type: | IR-TA COATING |
| Cable Type: | 1X10MM2 PVC XLPE | Cable Diameter: | DIA 38MM |
| Backfill Material: | CALCIUM PETROLEUM COKE | Standard: | ASTM B348 GRADE I/II |
| Inner Conductor: | Continuous Inner Copper Conductor | Fabric Jacket: | Continuous Fabric Jacket |
| Anode Material: | MMO/Ti Wire | Conductive Polymer: | Carbon Breeze Bag |
| Installation Speed: | 1.25 Miles Per Day | Circuit Length: | Long Continuous |
| Ground Bed: | Low Resistance | ||
| Highlight: | ASTM B348 GRADE I/II MMO Flexible Anode,52MA/M Current Output Flexible Polymeric Anode,1X10MM2 PVC XLPE Cable Impressed-Current Cathodic Protection Anode |
||
Product Description
MMO Flexible Anode for Impressed-Current Cathodic Protection
Product Description
Flexible Anode Based On MMO/Ti Coating Technology. This kind of flexible anode is based on MMO/Ti anode, covered with conductive polymer with carbon breeze bag.
The flexible anode consists of four components:
- Continuous MMO/Ti wire
- Continuous inner copper conductor
- Continuous fabric jacket
- Coke breeze in place around the anode cable
Product Features & Benefits
Anode is always in close proximity to pipeline
- Distributes current uniformly over total length of pipeline
- No over- or under-protected areas
- Prevents accelerated coating disbondment
- More effective & economical than a series of discrete anodes
- Independent of variations in soil resistivity
Pipeline rehabilitation without excavation
- A fraction of the cost of recoating
- Environmentally friendly
- No loss of revenue or supply interruptions
- No safety concerns as needed for working on live lines
- Far quicker, up to 1.25 miles (2 km) laying speed per day
Long continuous circuit lengths
- 90% fewer joints than conventional anode systems
- Lower maintenance costs
Avoids interference and stray current problems
- Enhances long-term performance
- Focuses current on target structure
- Improves protection and cost efficiency
Pre-packaging coke breeze (AnodeFlex 1500-01)
- Ensures low resistance ground bed all the time
- Ensures the polymer coated cable is centered
- Simplifies field installation
Installation with standard cable laying equipment
- Fast, easy, cost effective
Product Images

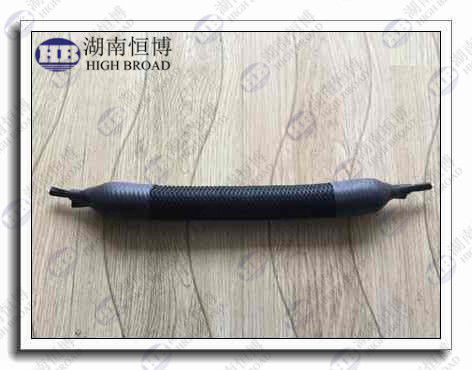

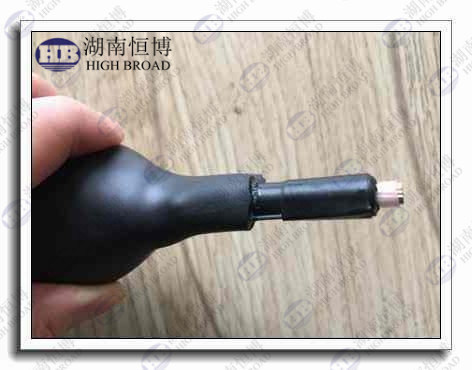

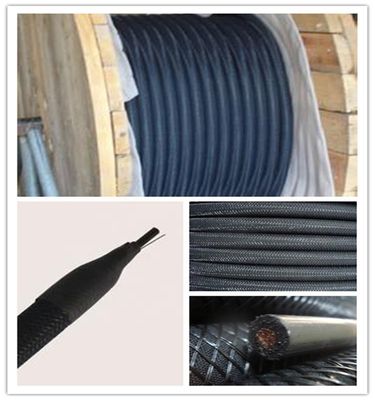

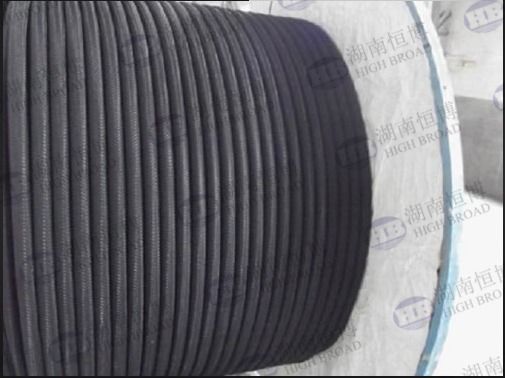

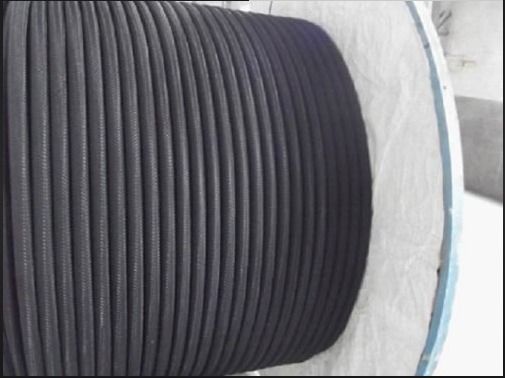

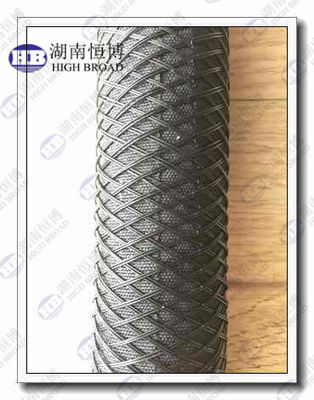

MMO Flexible Anode for Impressed-Current Cathodic Protection
MMO Flexible Anode technical specifications
