Magnesium Yttrium MgY30 MgY25 Master Alloy Ingot Grain Refiner for Aerospace Automotive Magnesium Casting
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, GB/T |
| Model Number: | MgY25 / MgY30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 kg |
|---|---|
| Price: | USD 35-80 / kg |
| Packaging Details: | Vacuum-packed aluminum foil inner bag, argon-protected sealed steel drum, export-grade wooden pallet outer packaging |
| Delivery Time: | 5-10 working days after payment confirmation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 Tons per Month |
|
Detail Information |
|||
| Alloy Type: | Magnesium Yttrium Master Alloy (MgY) | Available Grades: | MgY25, MgY30 |
|---|---|---|---|
| Yttrium Content: | 25% / 30% (by Weight) | Form: | Ingot / Waffle Plate |
| Ingot Weight: | 0.5-1 Kg Per Piece | Density: | 1.8-2.0 G/cm³ |
| Melting Range: | 620-650°C | Grain Refinement Mechanism: | Yttrium Forms Fine Intermetallic Dispersoids |
| Key Benefits: | Improved Castability, Creep Resistance, High-temperature Strength | Target Alloys: | WE43, WE54, AZ91, AM60, ZE41 |
| Highlight: | Magnesium Yttrium master alloy ingot,MgY30 grain refiner for casting,Aerospace magnesium alloy with yttrium |
||
Product Description

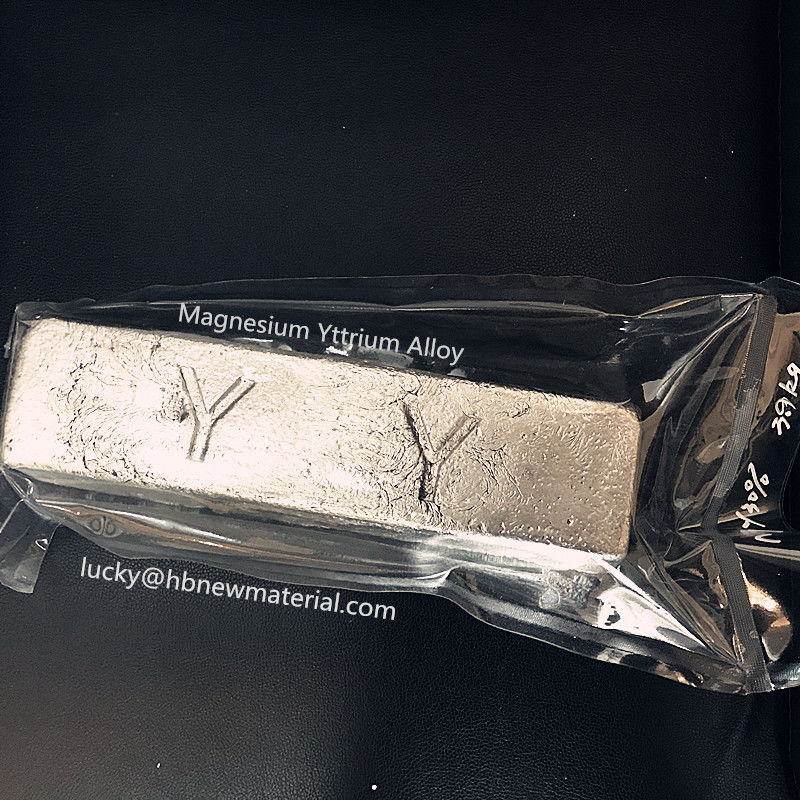

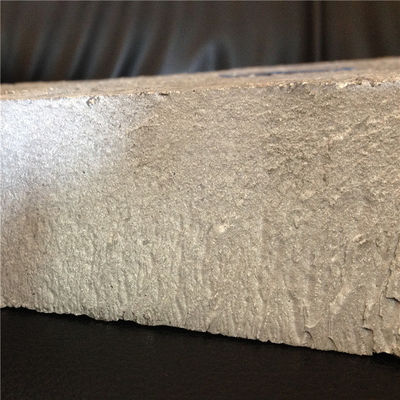

Magnesium Yttrium MgY30 MgY25 Master Alloy Ingot
Magnesium Yttrium (MgY) Master Alloy is a critical grain refining additive for high-performance magnesium casting. Engineered for aerospace, automotive, and defense industries, our MgY master alloy delivers exceptional castability improvement, creep resistance, and high-temperature mechanical properties. Available in MgY25 (25% Y) and MgY30 (30% Y) grades with tight compositional control and consistent batch quality.
Why Magnesium Yttrium Master Alloy?
- Superior Grain Refinement: Yttrium forms fine, thermally stable intermetallic dispersoids that pin grain boundaries during solidification, producing a uniform fine-grain microstructure
- Enhanced High-Temperature Performance: MgY-containing alloys (WE43, WE54) maintain mechanical strength up to 300°C, far exceeding conventional AZ/AM series alloys
- Improved Castability: Reduces hot tearing, shrinkage porosity, and microporosity in complex thin-wall castings
- Excellent Creep Resistance: Yttrium-rich precipitates impede dislocation movement at elevated temperatures, critical for powertrain and structural aerospace components
- Corrosion Resistance Enhancement: Yttrium addition shifts the corrosion potential noble, reducing galvanic corrosion susceptibility
Key Features
- Precise Compositional Control: Yttrium content controlled to ±1% tolerance with full chemical analysis certificate for every batch
- Low Impurity Levels: Iron (< 50 ppm), Nickel (< 20 ppm), Copper (< 100 ppm) to meet aerospace alloy specifications
- High Purity Raw Materials: 99.9% pure magnesium and 99.5% pure yttrium metal used as feedstock
- Homogeneous Microstructure: Vacuum induction melting ensures uniform distribution of MgY intermetallic phases throughout the ingot
- Easy Addition: Designed for direct addition to molten magnesium at 680-720°C with rapid dissolution (< 15 minutes)
- Argon-Protected Packaging: Each batch is sealed under argon atmosphere to prevent oxidation during storage and transit
Target Applications & Alloy Systems
| Target Alloy | Y Content | Application | Industry |
| WE43 (Mg-Y-Nd-Zr) | 3.7-4.3% | Helicopter transmission housings, missile components | Aerospace & Defense |
| WE54 (Mg-Y-Nd-HRE) | 4.75-5.5% | Racing car gearbox casings, aircraft door frames | Motorsport & Aviation |
| AZ91 + Y | 0.5-2.0% | Engine blocks, oil pans, brackets | Automotive |
| AM60 + Y | 0.3-1.5% | Steering wheels, instrument panels | Automotive |
| ZE41 + Y | 1.0-2.5% | Military bridging, portable equipment | Defense |
Technical Specifications
| Parameter | MgY25 | MgY30 |
| Yttrium (Y) | 24.0 - 26.0% | 29.0 - 31.0% |
| Magnesium (Mg) | Balance | Balance |
| Iron (Fe) | < 50 ppm | < 50 ppm |
| Nickel (Ni) | < 20 ppm | < 20 ppm |
| Copper (Cu) | < 100 ppm | < 100 ppm |
| Silicon (Si) | < 300 ppm | < 300 ppm |
| Form | Ingot / Waffle Plate | Ingot / Waffle Plate |
| Ingot Weight | 0.5 - 1.0 kg | 0.5 - 1.0 kg |
| Density | 1.85 g/cm³ | 1.95 g/cm³ |
| Melting Range | 620-640°C | 625-650°C |
Addition Guidelines
- Preheat MgY master alloy ingot to 150-200°C to remove surface moisture
- Add to molten magnesium base metal at 680-720°C under protective SF6/CO2 gas cover
- Stir gently for 2-3 minutes to accelerate dissolution
- Hold for 10-15 minutes to ensure complete homogenization
- Skim surface dross before pouring or transferring to casting station
- Typical addition rate: 5-20% of master alloy (to achieve 0.5-5% Y in final alloy)
Packaging & Storage
Each batch is vacuum-sealed in moisture-proof aluminum foil inner bags, packed in argon-protected sealed steel drums, and secured on export-grade fumigated wooden pallets. Standard packaging: 25 kg or 50 kg per drum. Store in a cool, dry environment below 30°C and away from moisture and incompatible materials. Shelf life: 12 months in original sealed packaging.
Quality Assurance
Every shipment includes a detailed Certificate of Analysis (COA) documenting Y content, trace impurity levels, and melting range. Our ISO 9001:2015 certified quality management system with in-house ICP-OES spectrometer ensures consistent alloy chemistry batch after batch. Third-party SGS testing available upon request.
Why Choose High Broad?
- 15+ years of master alloy manufacturing expertise serving global aerospace and automotive supply chains
- Dedicated vacuum induction melting (VIM) furnaces for high-purity reactive alloy production
- Strategic location in Hunan, China with direct access to rare earth and magnesium raw material supply chains
- Flexible order quantities from 10 kg R&D trial batches to multi-ton production orders
- Dedicated technical support team for alloy selection, addition process optimization, and casting troubleshooting
- Long-term supply agreements with major magnesium foundries in Europe, North America, and Japan
Contact us today for a competitive quotation, free technical consultation, or to request a sample batch for evaluation. We respond within 12 hours to all inquiries. OEM custom compositions and packaging available.
