MgY30 Master Alloy Ingot with 30% Yttrium Content for Aerospace Grade Grain Refinement Casting
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, RoHS |
| Model Number: | MgY30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Kilograms |
|---|---|
| Price: | USD 26-46 / Kilogram |

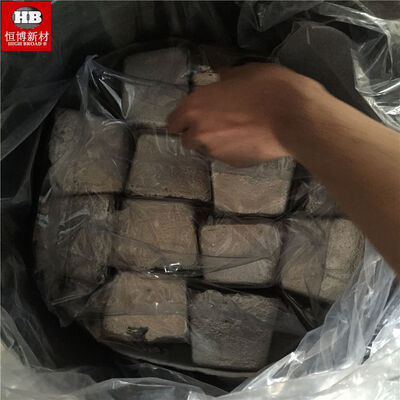

| Packaging Details: | Vacuum-sealed aluminum foil bags inside plywood cases with desiccant, export-grade fumigated pallets |
| Delivery Time: | 5 working days for stock, 10-15 days for production |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000 Kilograms per Month |
|
Detail Information |
|||
| Melting Range: | 620-640 Degree C | Yttrium Content: | 30% +/-2% |
|---|---|---|---|
| Ingot Weight: | 5kg / 10kg | Density: | 2.35 G/cm3 (approx.) |
| Creep Resistance: | Up To 300 Degree C | Form: | Ingot |
| Highlight: | Magnesium Yttrium 30% Master Alloy,Aerospace Grade Grain Refiner,High Temperature Creep Resistance MgY |
||
Product Description

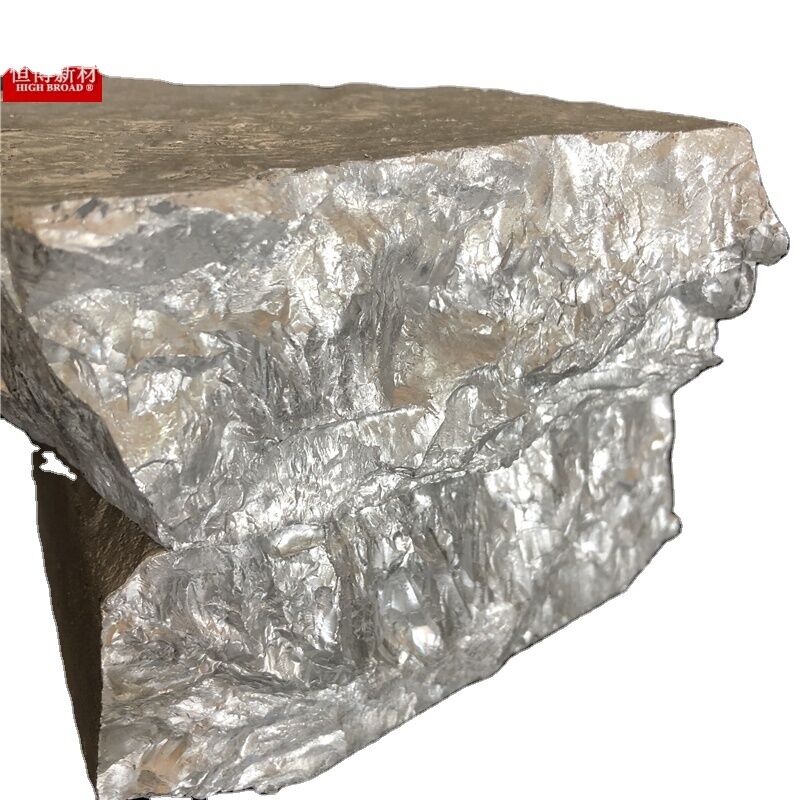

MgY30 Magnesium Yttrium 30% Master Alloy Ingot
The MgY30 Magnesium Yttrium 30% Master Alloy is a premium grain refiner and strengthening additive engineered for high-performance magnesium alloys. By introducing yttrium into the magnesium matrix, this master alloy significantly enhances creep resistance at elevated temperatures up to 300 degrees C, making it an essential material for aerospace-grade castings and components subjected to extreme thermal and mechanical loads.
Key Product Advantages
Superior Grain Refinement
Yttrium acts as a potent grain refiner in magnesium alloys, producing a fine, equiaxed grain structure that dramatically improves mechanical properties including tensile strength, yield strength, and elongation.
High-Temperature Creep Resistance
The formation of thermally stable Mg-Y intermetallic phases provides outstanding creep resistance at temperatures up to 300 degrees C, far exceeding conventional magnesium alloys.
Homogeneous Yttrium Distribution
Advanced melting and casting processes ensure uniform yttrium dispersion throughout the ingot, guaranteeing consistent alloying results and predictable mechanical performance in every batch.
WE43 & WE54 Compatible
Specifically formulated for producing WE43 and WE54 series aerospace magnesium alloys, meeting stringent industry specifications for aircraft engine housings, gearboxes, and structural components.
Typical Applications
- Aerospace engine housing and gearbox castings
- High-temperature structural components for satellites and spacecraft
- Helicopter transmission cases requiring creep resistance
- Tactical-grade magnesium alloy formulations
- Research and development of advanced Mg-RE alloys
Quality Assurance
Every batch undergoes rigorous optical emission spectroscopy (OES) analysis to verify yttrium content within +/-1%. Our ISO 9001:2015 certified facility maintains strict process controls from raw material selection through final packaging. Each shipment includes a detailed certificate of analysis (COA) documenting chemical composition and traceability data.
