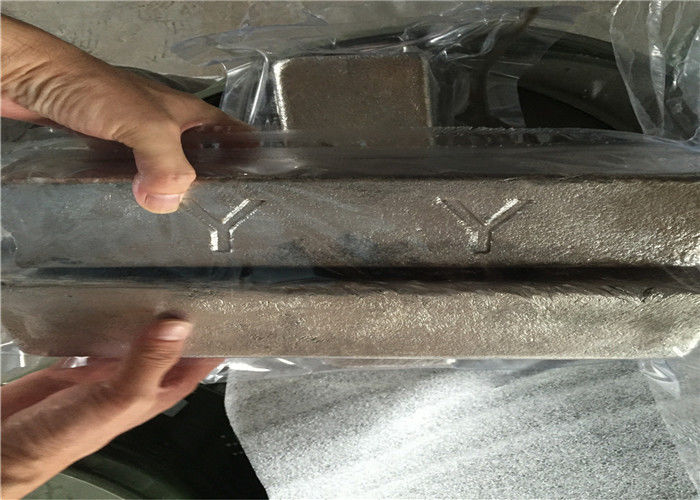

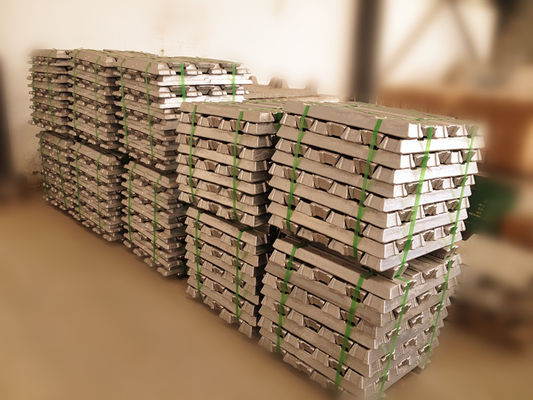

MgY30 Magnesium Yttrium Master Alloy with 30% Yttrium Content for High Temperature Strength and Creep Resistance
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | MgY30-5KG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Kilograms |
|---|---|
| Price: | USD 55.00 - 85.00 / Kilogram |
| Packaging Details: | Vacuum-sealed aluminum foil bag, wooden pallet with moisture barrier, export-grade plywood case |
| Delivery Time: | 5-7 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 15000 Kilograms per Month |
|
Detail Information |
|||
| Y Content: | 30% ± 1% | Density: | ~2.5 G/cm³ |
|---|---|---|---|
| Max Service Temperature: | Up To 300°C | Form: | Waffle Ingot |
| Melting Range: | 700-820°C | Ingot Weight: | 5kg Per Piece |
| Highlight: | MgY30 Yttrium Master Alloy,High Temperature Magnesium Alloy,Creep Resistant Lightweight Alloy |
||
Product Description
Key Advantages
Superior High-Temperature Strength
Yttrium forms thermally stable intermetallic phases (Mg24Y5) that maintain strength at temperatures where conventional magnesium alloys fail. Tensile strength retention exceeds 80% at 250°C.
Exceptional Creep Resistance
Y-rich precipitates effectively pin grain boundaries and dislocations at elevated temperatures, reducing creep rates by orders of magnitude compared to conventional Mg-Al-Zn alloys.
Corrosion Performance
Y addition improves the protective oxide layer stability on magnesium alloys, providing enhanced corrosion resistance in atmospheric and mild chemical environments.
Export License Support
We provide full dual-use item export license application support for shipments to non-sensitive countries, ensuring smooth customs clearance and regulatory compliance.
Technical Specifications
| Alloy Grade | MgY30 |
| Y Content | 30% ± 1% |
| Form | Waffle Ingot |
| Ingot Weight | 5kg per piece |
| Density | ~2.5 g/cm³ |
| Melting Range | 700-820°C |
| Max Service Temp | Up to 300°C |
| Export License | Available for non-sensitive countries |
Applications
- Aerospace engine casing and hot-section lightweight components
- Automotive powertrain components exposed to elevated temperatures
- High-performance racing and motorsport magnesium alloy parts
- High-grade protective vehicle and aircraft structural alloy development
- High-temperature extrusion and forging alloy production
