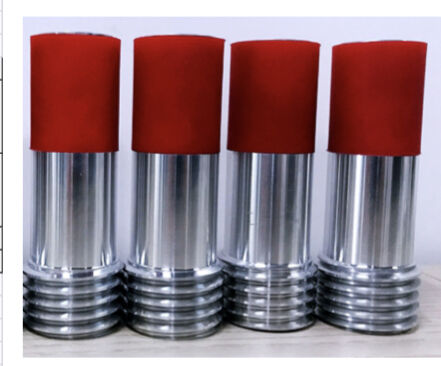

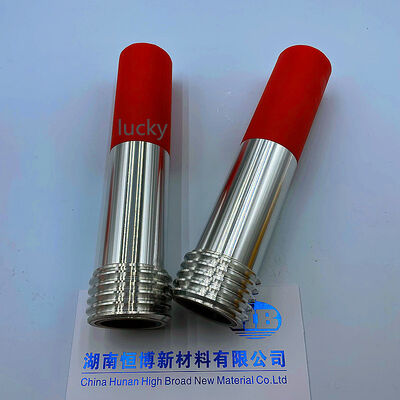

Hot Pressed Boron Carbide High Velocity Blast Nozzle 80x14mm B4C Heavy Duty Sandblasting Tip
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-HV80-14 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD5-20 / Piece |
| Packaging Details: | Heavy-duty custom foam protection case, vacuum-sealed moisture-proof bag, reinforced wooden crate option available |
| Delivery Time: | 20 working days for stock, 20-30 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 3000 Pieces per Month |
|
Detail Information |
|||
| Nozzle Type: | Extra Long Venturi / High Velocity | Hardness: | ≥ 2900 HV (Mohs 9.3) |
|---|---|---|---|
| Max Abrasive Flow Rate: | Up To 1200 Kg/hr | Particle Exit Velocity: | Up To 240 M/s |
| Density: | ≥ 2.50 G/cm³ | Recommended Compressor: | 900-1600 CFM |
| Highlight: | High Velocity B4C Blast Nozzle,Hot Pressed Boron Carbide 80x14mm,Heavy Duty Sandblasting Ceramic Tip |
||
Product Description
The B4C-HV80-14 represents the pinnacle of industrial blast nozzle engineering. With an 80mm extra-long venturi profile and a massive 14mm orifice, this nozzle is designed for the largest compressors (900-1600 CFM) used in shipyard, petrochemical, and pipeline surface preparation operations. Manufactured from premium hot pressed boron carbide, it delivers 400-600 hours of continuous service life under the most demanding conditions.
After extensive comparative testing of all commercially available nozzle materials under identical high-volume blasting conditions (G25 steel grit, 110 PSI, 1200 kg/hr flow rate), hot pressed B4C demonstrated the following wear life advantages:
| Material | Average Wear Life (Hours) | Relative Life |
|---|---|---|
| Hot Pressed B4C (WNRLN B4C-HV80-14) | 400-600 | 12x baseline |
| Silicon Carbide (SiC) | 80-120 | 2.4x baseline |
| Tungsten Carbide (WC-Co) | 40-60 | 1.2x baseline |
| Reaction Bonded SiC | 30-50 | 1x baseline |
| Alumina (Al₂O₃) | 15-25 | 0.5x baseline |
| Cast Iron / Hardened Steel | 3-8 | 0.1x baseline |
For a shipyard operating two 1200 CFM compressors on double shifts (16 hours/day), the annual nozzle cost comparison is striking:
- B4C nozzles: ~12 replacements/year at $60/unit = $720/year per blast station
- SiC nozzles: ~60 replacements/year at $35/unit = $2,100/year per blast station
- WC nozzles: ~100 replacements/year at $50/unit = $5,000/year per blast station
Beyond the direct savings, reduced nozzle change downtime (15 minutes per change) recovers approximately 20 productive blasting hours per year per station when using B4C nozzles, worth thousands in labor and equipment utilization.
Each B4C-HV80-14 undergoes ultrasonic inspection for internal defects, laser bore profilometry for dimensional verification, and a documented hardness test before shipping. Every nozzle is serialized and comes with a material certification report.
Contact our industrial sales team for a site-specific cost-benefit analysis, trial program details, and volume pricing.
