MMO Coated Titanium Wire Flexible Anode with 1.5mm Diameter and Iridium-Tantalum Mixed Metal Oxide Coating for 20+ Years Design Life
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HIGH BROAD |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-1.5-UST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 20-50.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Maximum Operating Voltage: | 12 V DC |
|---|---|---|---|
| Operating Temperature: | -20degC To 60degC | Design Life: | >= 20 Years |
| Rated Current Output: | <= 100 MA/m (carbon Backfill) | Wire Diameter: | 1.5 Mm +/- 0.05 Mm |
| Highlight: | MMO Titanium Wire Anode 1.5mm,Underground Tank ICCP Flexible Anode,Mixed Metal Oxide Coated CP Wire |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in underground storage tank (UST) applications, including fuel station tanks, chemical storage tanks, and buried vessels. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution.
- Mixed Metal Oxide (Ir-Ta) coating for superior electrocatalytic activity and low consumption rate
- High-purity Grade 1 titanium wire substrate per ASTM B348 ensuring excellent corrosion resistance
- Flexible wire form factor conforms to curved tank bottom contours for complete coverage
- Rated current output up to 100 mA/m in carbon backfill environment
- Design life exceeding 20 years under standard operating conditions
| Parameter | Specification |
|---|---|
| Model | MMO-W-1.5-UST |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 1.5 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 100 mA/m (carbon backfill) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 20 years |
| Operating Temperature | -20°C to 60°C |
| Coating Thickness | 8-12 μm |
| Electrical Resistivity | <= 0.00006 Ohm-cm (coating) |

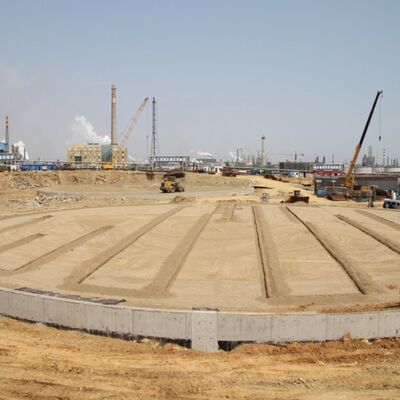

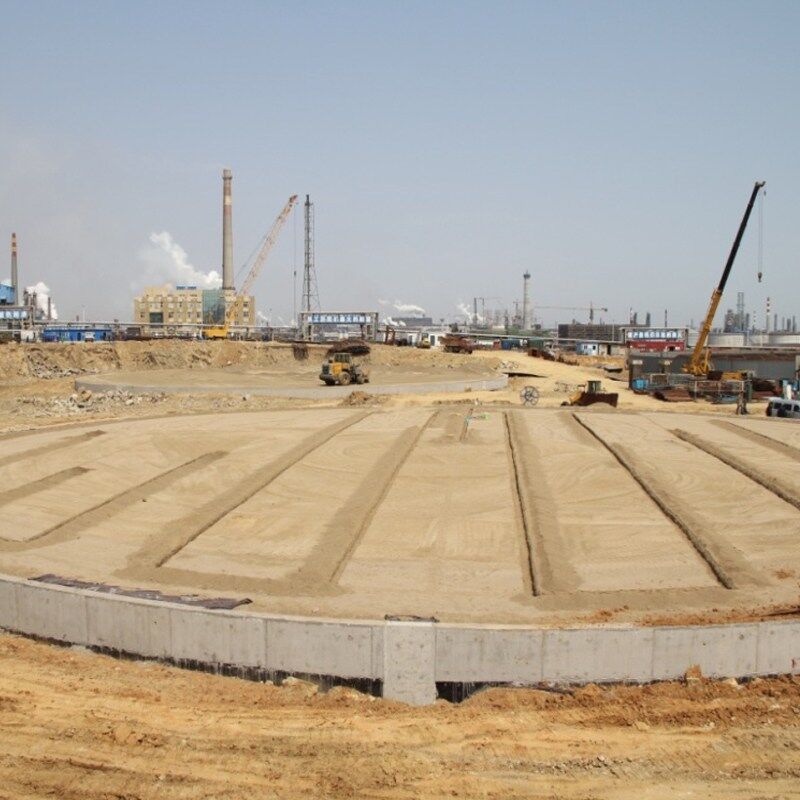

Ideal for underground storage tank (UST) cathodic protection systems, including fuel station tanks, chemical storage tanks, and buried vessel applications. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects conforming to NACE SP0169 and ISO 15589-1 standards.

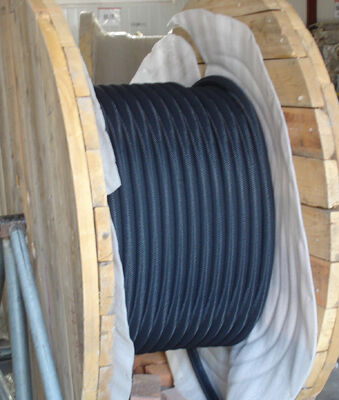

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
