MMO Coated Titanium Wire Flexible Anode with 3.0mm Diameter and Iridium-Tantalum Mixed Metal Oxide Coating for Long-Distance Buried Pipeline CP
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-3.0-PL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD20.0-50.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Design Life: | >= 20 Years |
|---|---|---|---|
| Maximum Operating Voltage: | 24 V DC | Operating Temperature: | -20degC To 60degC |
| Rated Current Output: | <= 300 MA/m (carbon Backfill) | Coating Thickness: | 8-12 Um |
| Highlight: | MMO Ti Wire Pipeline Anode 3.0mm,Long-Distance Pipeline Flexible CP,Mixed Metal Oxide ICCP Wire Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in long-distance buried pipeline applications, including oil and gas transmission pipelines, water mains, and district heating networks. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Enhanced 3.0mm diameter provides higher current output capacity up to 300 mA/m in coke breeze backfill
- Premium Grade 1 titanium wire with uniform MMO coating for consistent electrochemical performance
- Continuous wire anode ideal for long-distance pipeline installations with minimal joint requirements
- Excellent resistance to acid generation at anode-soil interface during ICCP operation
- Compatible with all standard ICCP transformer-rectifier and DC power supply systems
| Parameter | Specification |
|---|---|
| Model | MMO-W-3.0-PL |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 3.0 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 300 mA/m (carbon backfill) |
| Maximum Operating Voltage | 24 V DC |
| Design Life | >= 20 years |
| Operating Temperature | -20°C to 60°C |
| Coating Thickness | 8-12 μm |
| Tensile Strength | >= 240 MPa |

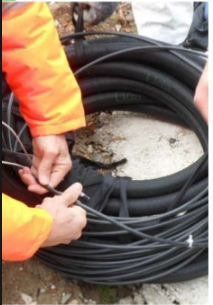

Ideal for long-distance buried pipeline cathodic protection, including oil and gas transmission pipelines, water mains, and district heating networks. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.

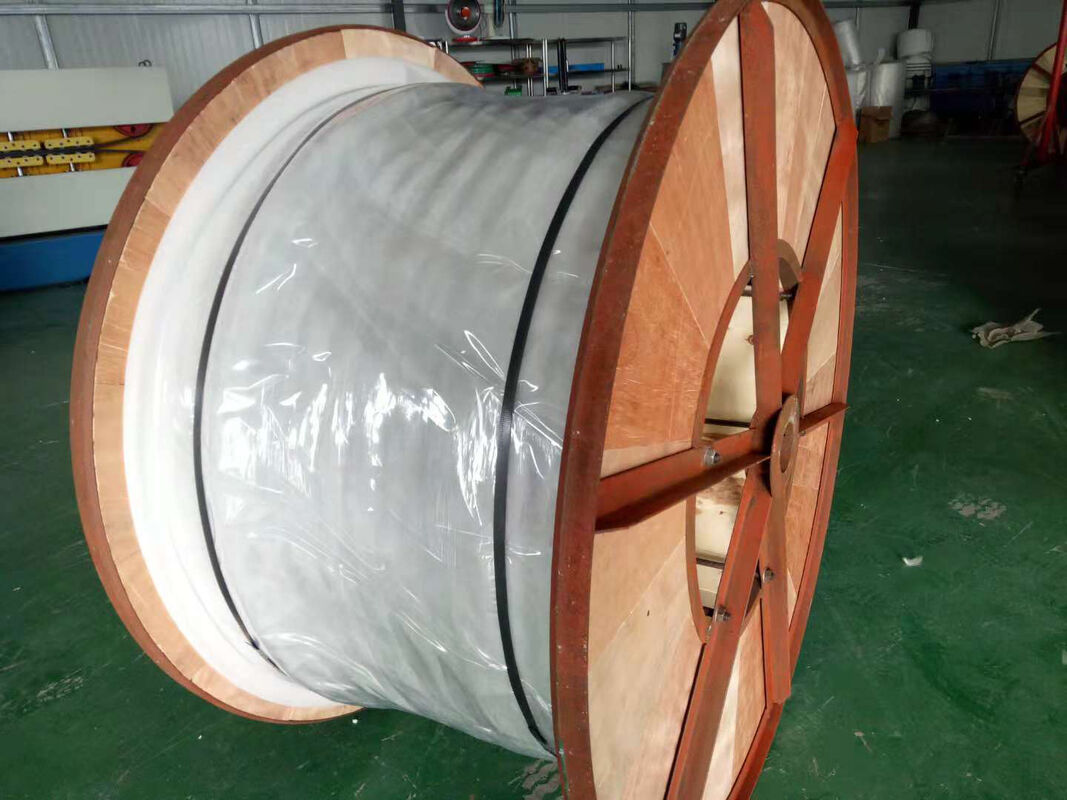

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
