MMO Coated Titanium Tubular Flexible Anode with 12.7mm Dia and Iridium-Tantalum Mixed Metal Oxide Coating for Deep Well Groundbed Cathodic Protection Up to 300 m
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-T-12.7-DW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Design Life: | >= 30 Years |
|---|---|---|---|
| Maximum Operating Voltage: | 50 V DC | Maximum Installation Depth: | Up To 300 M |
| Rated Current Output: | <= 3.5 A/m (coke Breeze Backfill) | Tubular OD X Wall: | 12.7 Mm X 0.9 Mm |
| Highlight: | MMO Ti Tubular Anode 12.7mm,Deep Well Groundbed Flexible CP,Mixed Metal Oxide Tubular ICCP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium tubular flexible anode is engineered for impressed current cathodic protection (ICCP) systems in deep well anode groundbed installations. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Robust 12.7mm OD tubular titanium construction designed for deep vertical groundbed installations up to 300m depth
- High current discharge capacity suitable for protecting extensive pipeline networks and plant facilities
- Internally and externally MMO coated for maximum active surface area and extended operational life
- Threaded coupling system ensures secure mechanical and electrical connection between anode segments
- Low anode-to-earth resistance design minimizes rectifier power requirements and operating costs
| Parameter | Specification |
|---|---|
| Model | MMO-T-12.7-DW |
| Anode Type | MMO/Ti Tubular Flexible Anode |
| Substrate Material | Grade 2 Titanium per ASTM B338 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Tubular OD x Wall | 12.7 mm x 0.9 mm |
| Standard Segment Length | 1.0 m, 1.5 m, 2.0 m |
| Rated Current Output | <= 3.5 A/m (coke breeze backfill) |
| Maximum Operating Voltage | 50 V DC |
| Design Life | >= 30 years |
| Maximum Installation Depth | Up to 300 m |
| Connection Type | Threaded titanium coupling |
| Backfill Material | Calcined petroleum coke breeze |
Ideal for deep well anode groundbed installations for cathodic protection of cross-country pipelines, refinery complexes, tank farms, petrochemical plants, and other large-scale impressed current CP systems. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.

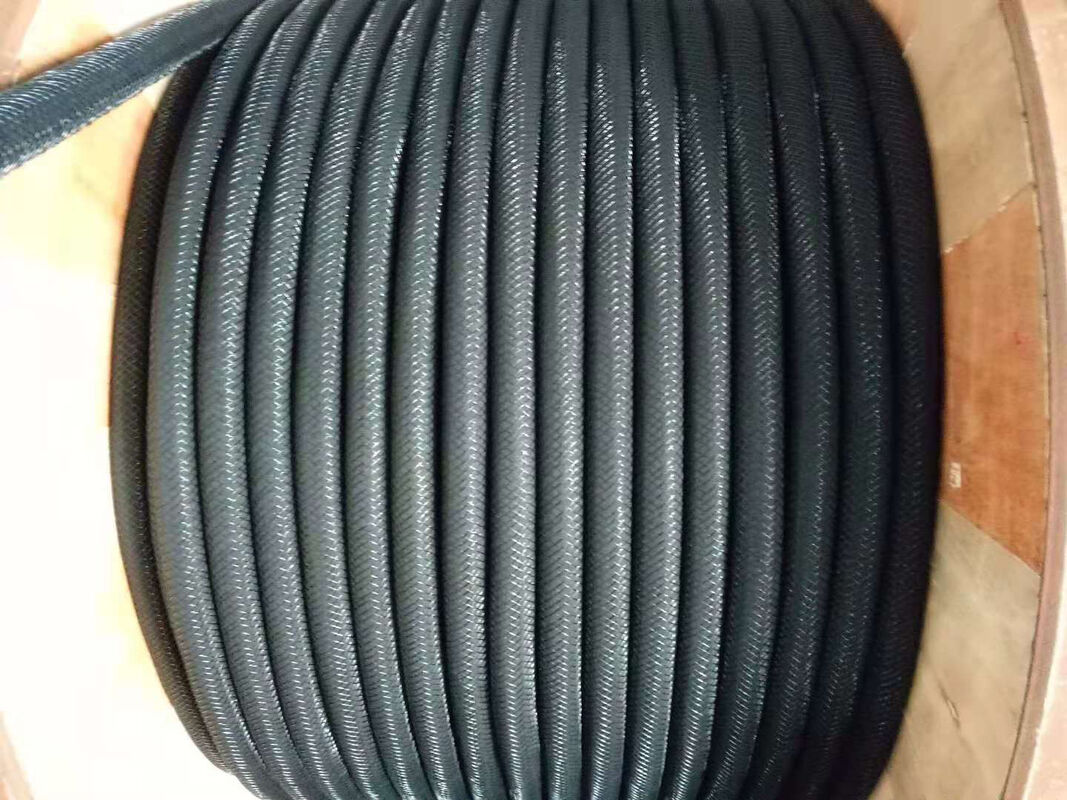

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
