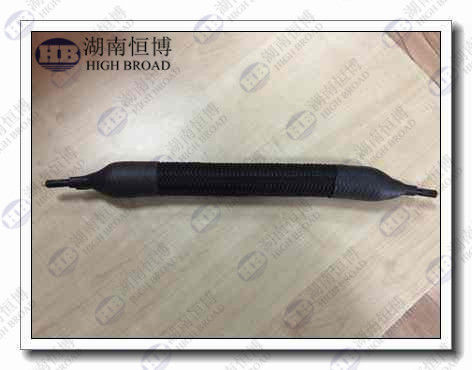

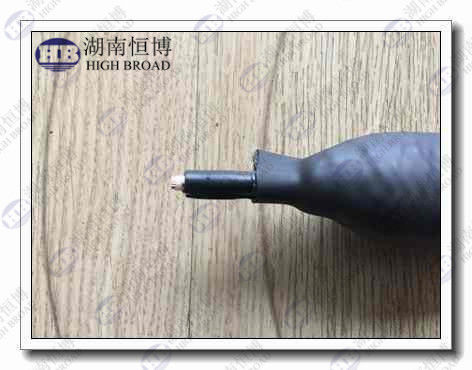

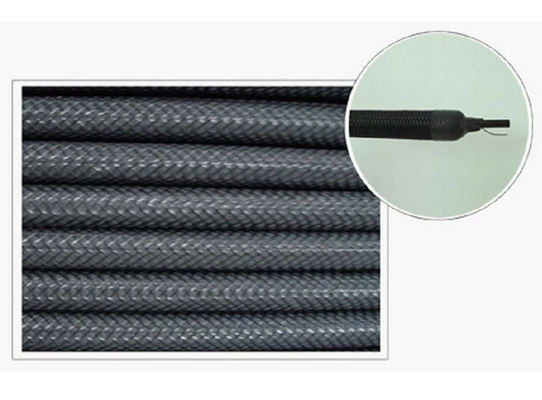

MMO Coated Titanium Mesh Flexible Impressed Current Anode with Iridium-Tantalum Mixed Metal Oxide Coating and Grade 1 Titanium Substrate for 30+ Years Design Life
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-M-GRID-TB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 20.0-50.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Rated Current Output: | <= 20 MA/m2 (sand Backfill) | Open Area Ratio: | > 60% |
|---|---|---|---|
| Mesh Weight: | Approx. 0.8 Kg/m2 | Strand Dimensions: | 1.2 Mm X 0.6 Mm |
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Design Life: | >= 30 Years |
| Highlight: | MMO Ti Mesh Anode Grid,Tank Bottom Flexible CP Mesh,Mixed Metal Oxide ICCP Grid Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium mesh flexible anode is engineered for impressed current cathodic protection (ICCP) systems in aboveground storage tank (AST) bottom cathodic protection, including crude oil tanks, product storage tanks, water storage reservoirs, and containment dike areas in refineries and tank terminals. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Expanded titanium mesh grid design with diamond aperture ensures perfect current distribution across large surface areas
- High open area ratio (>60%) allows sand or backfill to penetrate through mesh for optimal electrolyte contact
- Lightweight and flexible for easy cutting and shaping to fit any tank bottom diameter and configuration
- Pre-coated MMO surface eliminates field coating requirements and ensures consistent anode performance
- Meets API 651 and NACE SP0193 standards for cathodic protection of aboveground petroleum storage tank bottoms
| Parameter | Specification |
|---|---|
| Model | MMO-M-GRID-TB |
| Anode Type | MMO/Ti Mesh Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Mesh Aperture | 4.5 mm x 2.5 mm (diamond) |
| Strand Width x Thickness | 1.2 mm x 0.6 mm |
| Rated Current Output | <= 20 mA/m² (sand backfill) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 30 years |
| Standard Panel Size | 1.0 m x 0.6 m |
| Open Area Ratio | > 60% |
| Mesh Weight | Approx. 0.8 kg/m² |
- Aboveground storage tank (AST) bottom cathodic protection
- Crude oil tanks and product storage tanks
- Water storage reservoirs and containment dike areas
- Refineries and tank terminals
- Both new construction and retrofit projects
The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request.
Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
