MMO Coated Titanium Wire Flexible Impressed Current Anode with 2.0mm Diameter and Iridium-Tantalum Mixed Metal Oxide Coating for 20 Years Design Life
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-2.0-SOIL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Rated Current Output: | <= 150 MA/m (carbon Backfill) |
|---|---|---|---|
| Coating Thickness: | 8-12 Um | Design Life: | >= 20 Years |
| Wire Diameter: | 2.0 Mm +/- 0.05 Mm | Tensile Strength: | >= 240 MPa |
| Highlight: | MMO Ti Wire Soil Anode 2.0mm,Buried Structure Flexible CP Wire,Mixed Metal Oxide Soil CP Anode |
||
Product Description
MMO Coated Titanium Wire Flexible Impressed Current Anode 2.0mm Dia for Soil Environment Buried Structure CP
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in general soil environment cathodic protection for buried structures including natural gas distribution piping, water pipelines, culverts, underground storage tank piping, and buried valve stations. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
Key Features
- Balanced 2.0mm diameter providing optimal combination of mechanical strength flexibility and current output for soil CP applications
- Wide compatibility with various soil resistivity conditions from low to medium-high resistivity environments
- Pre-connected anode cable tail option available for streamlined field installation and reduced labor time
- Individual anode segments can be spliced on-site for custom-length anode configurations as project requires
- Conforms to NACE SP0169 and ISO 15589-1 requirements for external corrosion control of buried metallic structures
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMO-W-2.0-SOIL |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 2.0 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 150 mA/m (carbon backfill) |
| Maximum Operating Voltage | 24 V DC |
| Design Life | >= 20 years |
| Soil Resistivity Range | 500-50000 Ohm-cm |
| Coating Thickness | 8-12 um |
| Tensile Strength | >= 240 MPa |
Applications

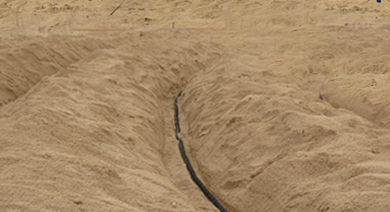

Ideal for general soil environment cathodic protection for buried structures including natural gas distribution piping, water pipelines, culverts, underground storage tank piping, and buried valve stations. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.
Packaging and Delivery

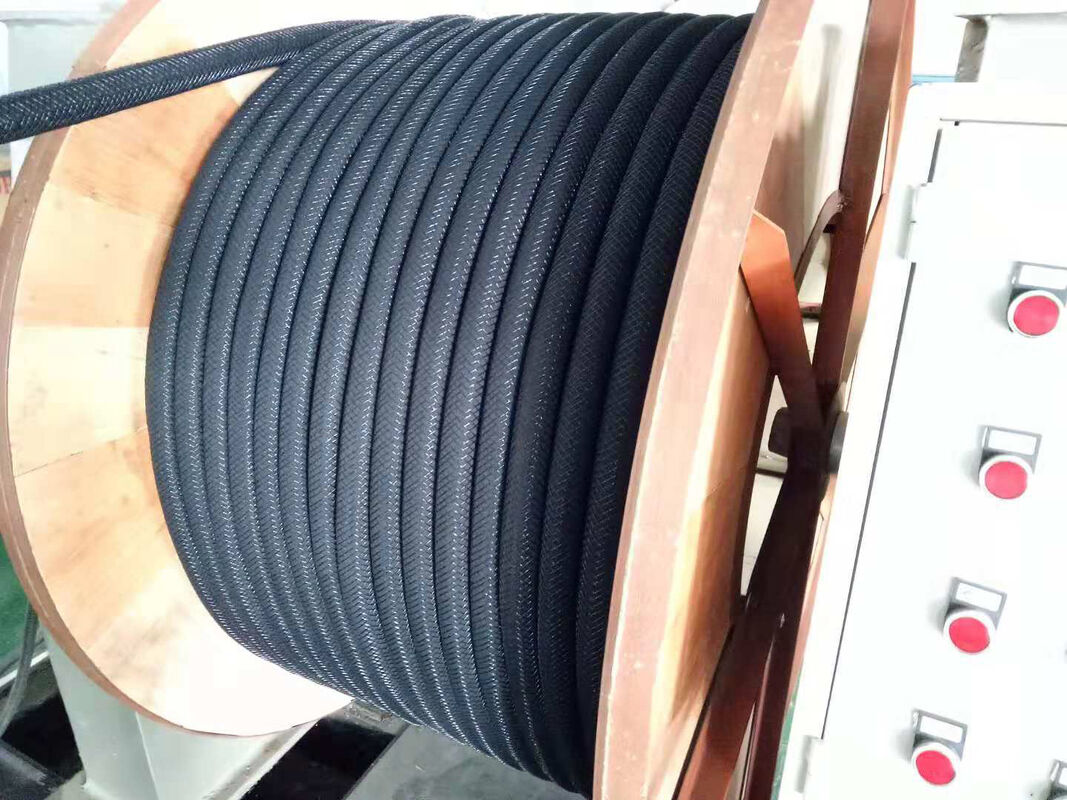

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
