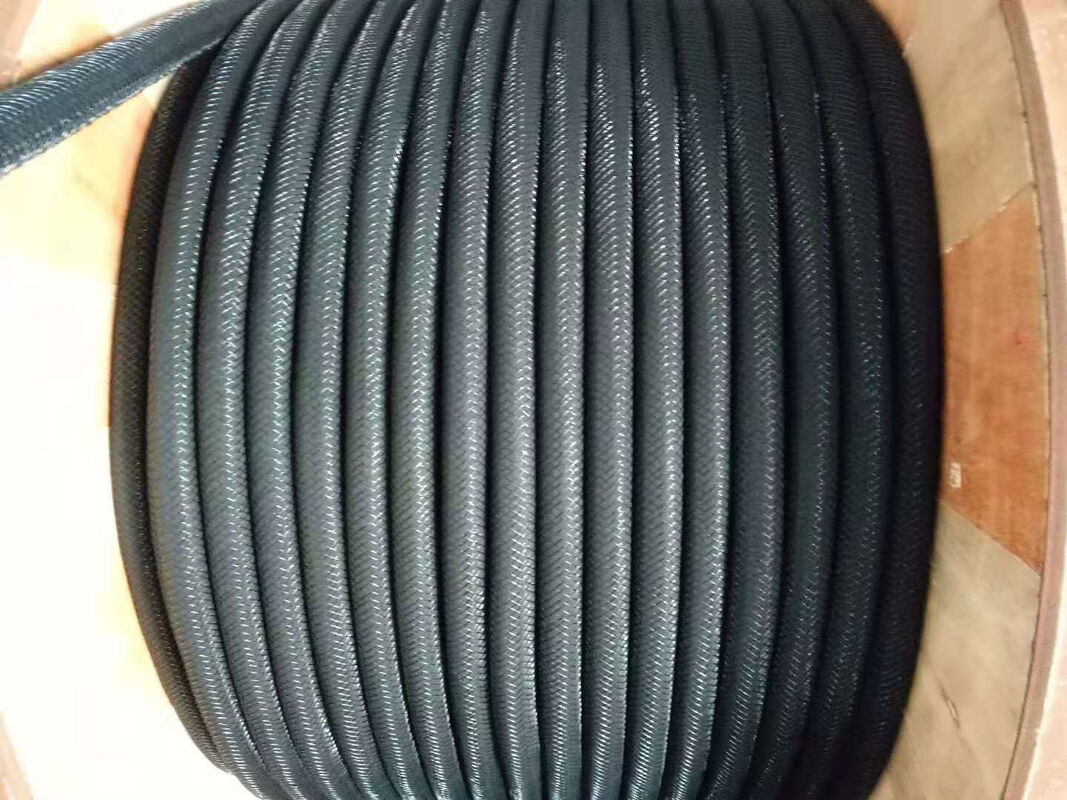

MMO Coated Titanium Ribbon Flexible Anode 12.7mm Width with Iridium-Tantalum Mixed Metal Oxide Coating for NSF/ANSI 61 Compliant Cathodic Protection
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | OEM |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-R-12.7-WT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide Potable Water Grade | Design Life: | >= 25 Years |
|---|---|---|---|
| Maximum Operating Voltage: | 12 V DC | Rated Current Output: | <= 40 MA/m (potable Water) |
| Coating Thickness: | 8-12 Um | Ribbon Dimensions: | 12.7 Mm (W) X 0.9 Mm (T) |
| Highlight: | MMO Ti Ribbon Water Tank Anode,Potable Water Tank Flexible CP,Mixed Metal Oxide Ribbon ICCP Anode |
||
Product Description
Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Wide 12.7mm ribbon profile maximizes current distribution area for efficient protection of large water tank interiors
- NSF/ANSI 61 compliant coating formulation approved for potable water contact applications
- Low metal ion release rate into water ensures water quality standards are maintained throughout service life
- Easy installation along tank walls and floor using non-conductive mounting brackets and spacers
- Suitable for both new water storage tank construction and rehabilitation projects with existing steel tanks
| Parameter | Specification |
|---|---|
| Model | MMO-R-12.7-WT |
| Anode Type | MMO/Ti Ribbon Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide Potable Water Grade |
| Ribbon Dimensions | 12.7 mm (W) x 0.9 mm (T) |
| Standard Coil Length | 50 m, 100 m, 150 m, 300 m |
| Rated Current Output | <= 40 mA/m (potable water) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 25 years |
| Water Quality Compliance | NSF/ANSI 61 |
| Coating Thickness | 8-12 um |
| Coil Weight 100m | Approx. 9.8 kg |
Ideal for cathodic protection of potable water storage tanks, fire water reservoirs, cooling water basins, wastewater treatment tanks, and industrial water containment vessels.
The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request.
Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
