MMO Coated Titanium Wire Flexible Anode with 1.5mm Diameter and Iridium-Tantalum Mixed Metal Oxide Coating for 25+ Years Design Life
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-1.5-BD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Design Life: | >= 25 Years (concrete) |
|---|---|---|---|
| Maximum Operating Voltage: | 12 V DC | Rated Current Output: | <= 30 MA/m (concrete Overlay) |
| Coating Thickness: | 8-12 Um | Wire Diameter: | 1.5 Mm +/- 0.05 Mm |
| Highlight: | MMO Ti Wire Bridge Deck Anode,Concrete Bridge Flexible ICCP Wire,Mixed Metal Oxide Deck CP Anode |
||
Product Description
MMO Coated Titanium Wire Flexible Impressed Current Anode 1.5mm Dia for Bridge Deck Concrete CP System
Product Overview
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in chloride-contaminated reinforced concrete bridge decks, approach slabs, bridge substructures, and elevated highway structures requiring corrosion mitigation.
Key Features
- 1.5mm wire diameter optimized for thin concrete overlay applications common in bridge deck CP rehabilitation
- Flexible wire easily conforms to bridge deck profiles including crown slopes, curbs, and drainage features
- Compatible with cementitious grout, polymer-modified concrete, and geopolymer overlay encapsulation methods
- Uniform anode spacing design ensures complete protection of embedded reinforcing steel against chloride attack
- Integrates with remote monitoring and E log I polarization decay testing per NACE SP0290 requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMO-W-1.5-BD |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 1.5 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 30 mA/m (concrete overlay) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 25 years (concrete) |
| Overlay Compatibility | Cementitious, polymer-modified, geopolymer |
| Coating Thickness | 8-12 um |
| Spacing Recommendation | 150-300 mm center-to-center |
Applications
- Impressed current cathodic protection of chloride-contaminated reinforced concrete bridge decks
- Approach slabs and bridge substructures
- Elevated highway structures requiring corrosion mitigation
- Installation around complex geometries with complete coverage and uniform protection
- Suitable for both new construction and retrofit projects conforming to NACE SP0169 and ISO 15589-1 standards
Packaging and Delivery

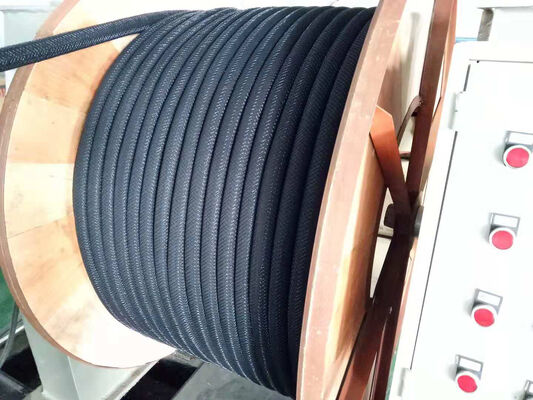

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
