MMO Coated Titanium Strip Anode with 25mm Width and Iridium-Tantalum Mixed Metal Oxide Coating for 20 Years Marine Cathodic Protection
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-S-25-PIER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide Marine Grade | Design Life: | >= 20 Years (marine) |
|---|---|---|---|
| Maximum Operating Voltage: | 24 V DC | Mounting: | Pre-punched Holes At 300 Mm Centers |
| Rated Current Output: | <= 1.5 A/m (seawater) | Coating Thickness: | 10-15 Um |
| Highlight: | MMO Ti Strip Anode 25mm,Marine Pier Flexible ICCP Strip,Mixed Metal Oxide Strip CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium strip flexible anode is engineered for impressed current cathodic protection (ICCP) systems in marine cathodic protection of steel piers, jetties, wharves, sheet pile bulkheads, dock fender systems, and coastal infrastructure exposed to seawater tidal and splash zone conditions. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Extra-wide 25mm strip format delivers high current discharge capacity for protecting large marine steel structures
- Specialized MMO coating formulation with enhanced chlorine and hypochlorite resistance for seawater service
- Pre-punched mounting holes at regular intervals for rapid secure attachment to steel and concrete substrates
- Parallel strip anode arrays provide comprehensive protection coverage for sheet pile walls and H-pile supports
- Verified performance in tidal splash and submerged zones per NACE SP0387 and DNV-RP-B401 marine CP standards
| Parameter | Specification |
|---|---|
| Model | MMO-S-25-PIER |
| Anode Type | MMO/Ti Strip Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide Marine Grade |
| Strip Dimensions | 25 mm (W) x 1.0 mm (T) |
| Standard Strip Length | 1.0 m, 2.0 m, 3.0 m, 6.0 m |
| Rated Current Output | <= 1.5 A/m (seawater) |
| Maximum Operating Voltage | 24 V DC |
| Design Life | >= 20 years (marine) |
| Mounting | Pre-punched holes at 300 mm centers |
| Coating Thickness | 10-15 um |
| DNV Type Approval | Available upon request |
Ideal for marine cathodic protection of steel piers, jetties, wharves, sheet pile bulkheads, dock fender systems, and coastal infrastructure exposed to seawater tidal and splash zone conditions. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.

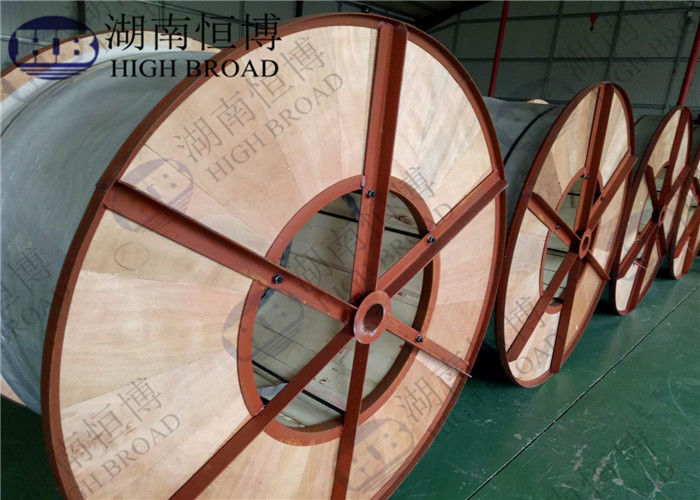

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
